Circuit Description

WARNING: This page is about a different car, the 2002 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.

This DTC is output when communication stops between back door ECU and body No. 1 ECU.

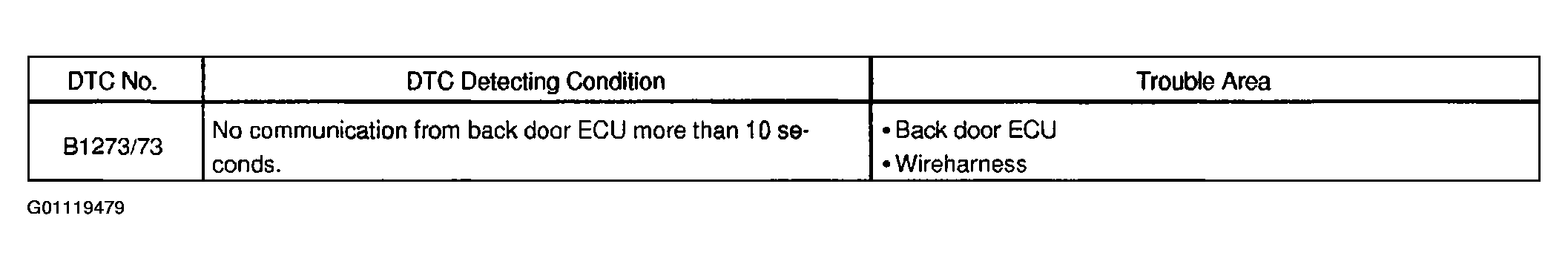

Fig 1: DTC Detected Condition & Trouble Area
G01119479Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
