Step 11 - Inspect Reclining Motor Operation
WARNING: This page is about a different car, the 2002 Toyota Tundra. However, it is still accessible from the selected car via links, so may be relevant.

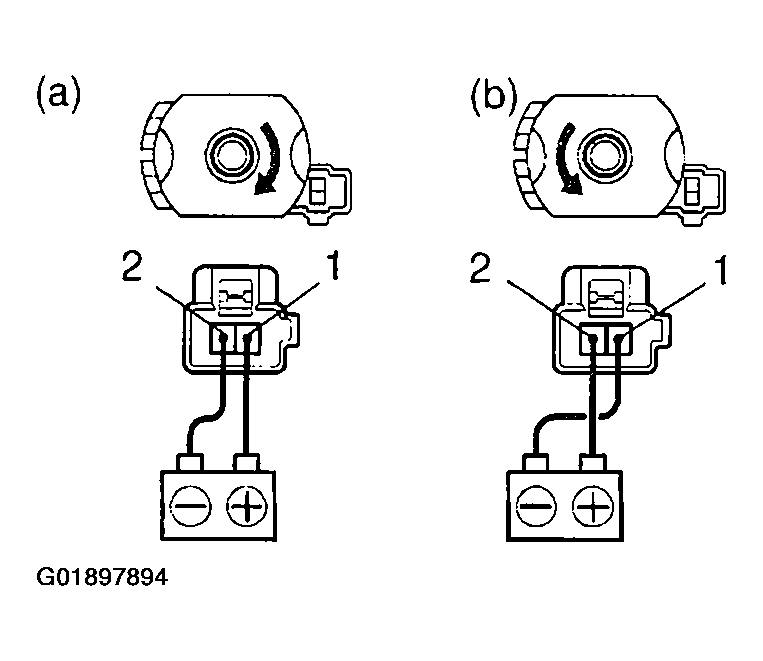

- Connect the positive (+) lead from the battery to terminal 1 and the negative (-) lead to terminal 2, check that the motor turns clockwise.
- Reverse the polarity, check that the motor turns counterclockwise.
If operation is not as specified, replace the seat adjuster.
