Section 298 (Power Seat Control System)
>>
Power Seat Control System
>>
Inspection
>>
Step 3 - Inspect Lumbar Support Switch Continuity
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Step 3 - Inspect Lumbar Support Switch Continuity
WARNING:
This page is about a different car, the 2002 Toyota Tundra. However, it is still accessible from the selected car via links, so may be relevant.

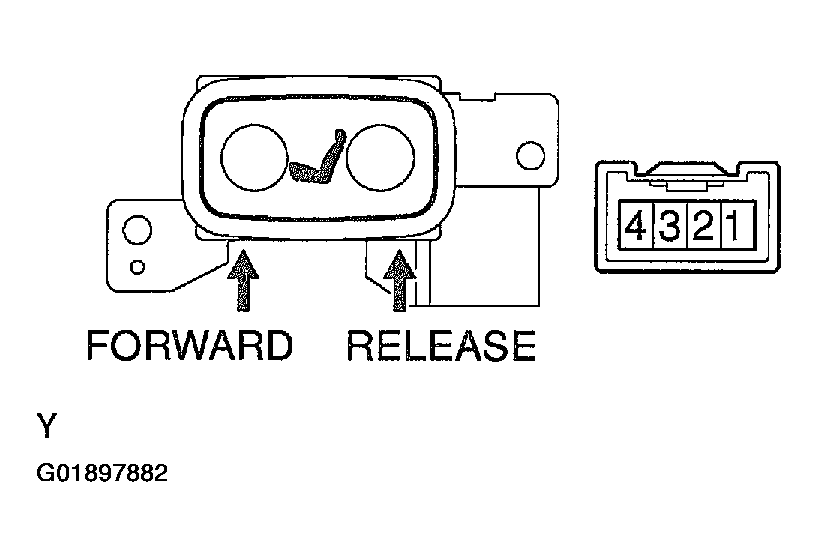

Fig 1: Identifying Lumbar Support Switch Control Positions & Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

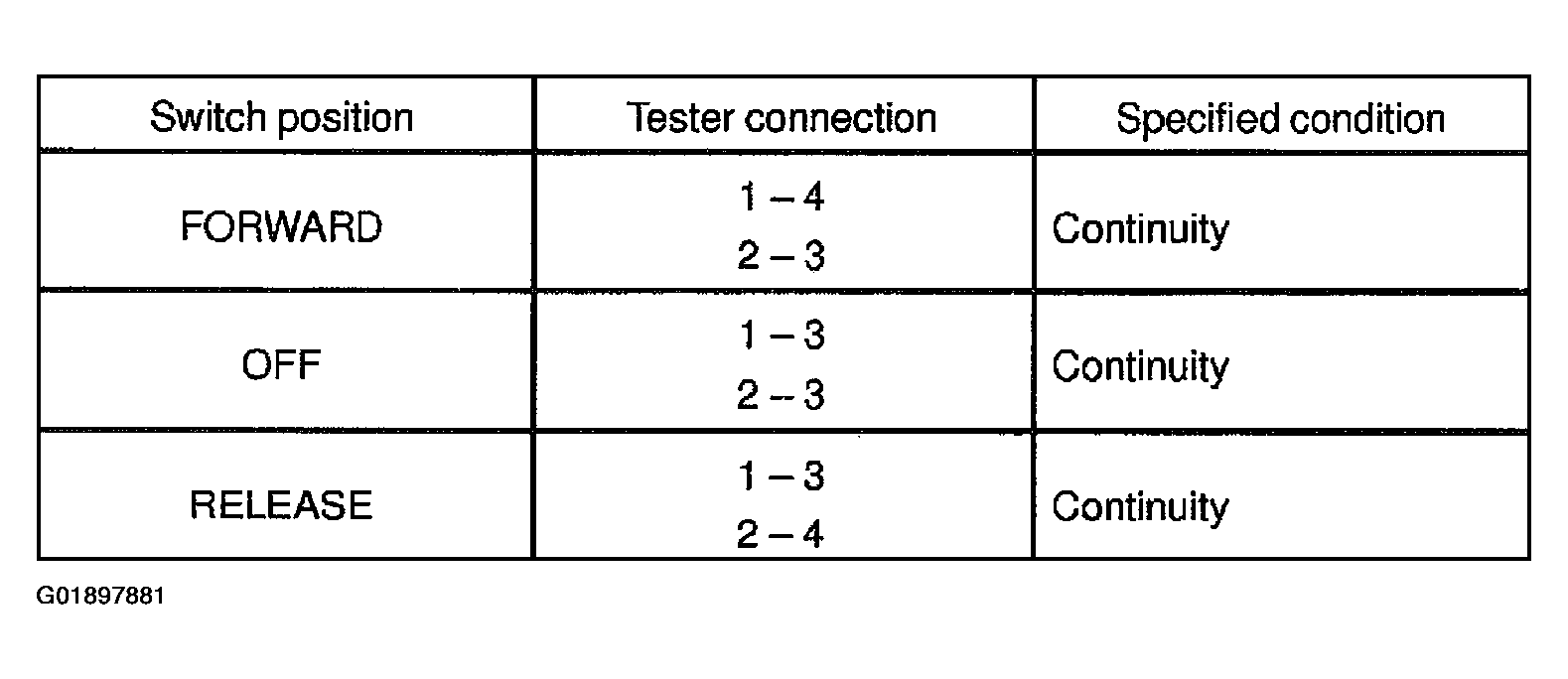

Fig 2: Lumbar Support Switch Terminal Specifications (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
If continuity is not as specified, replace the switch.
