Power Steering Vane Pump: Components

WARNING: This page is about a different car, the 2002 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.

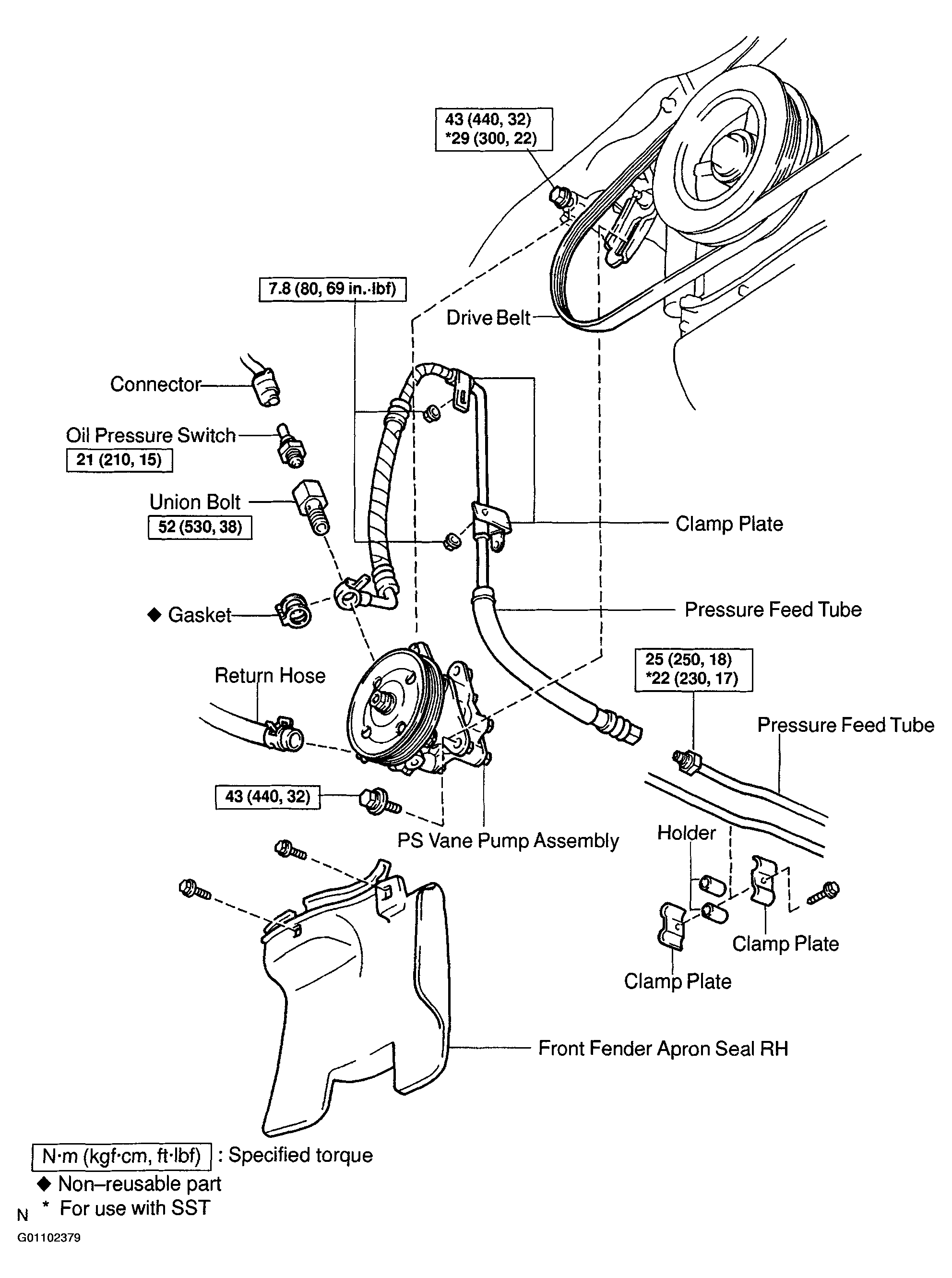

Fig 1: Identifying Power Steering Vane Pump Related Components
G01102379Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

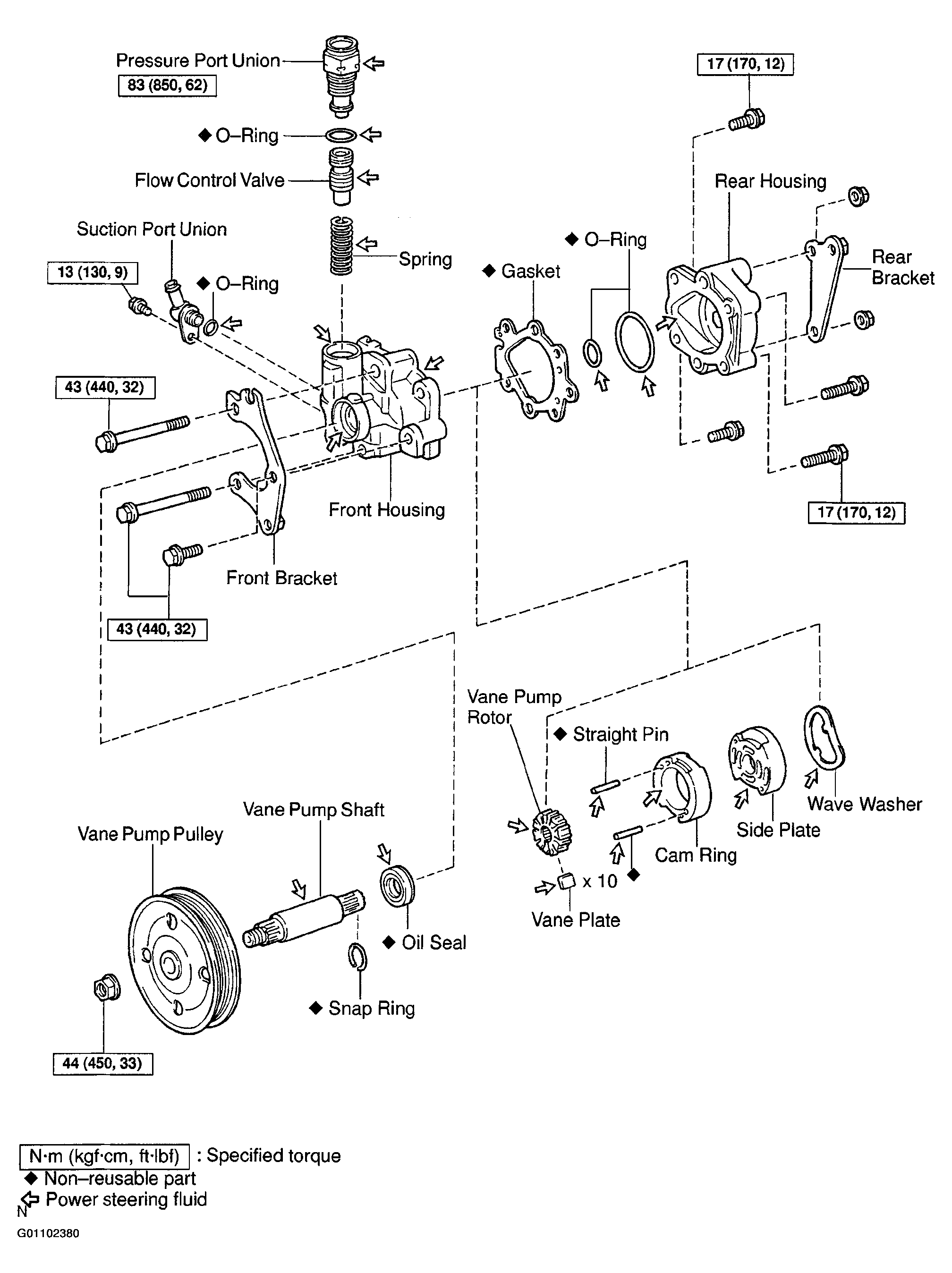

Fig 2: Exploded View 3.4L Power Steering Vane Pump
G01102380Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
