Step 3 - Install Universal Joint Assembly

WARNING: This page is about a different car, the 2002 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.

Align the matchmarks on the universal joint assembly and main shaft assembly.

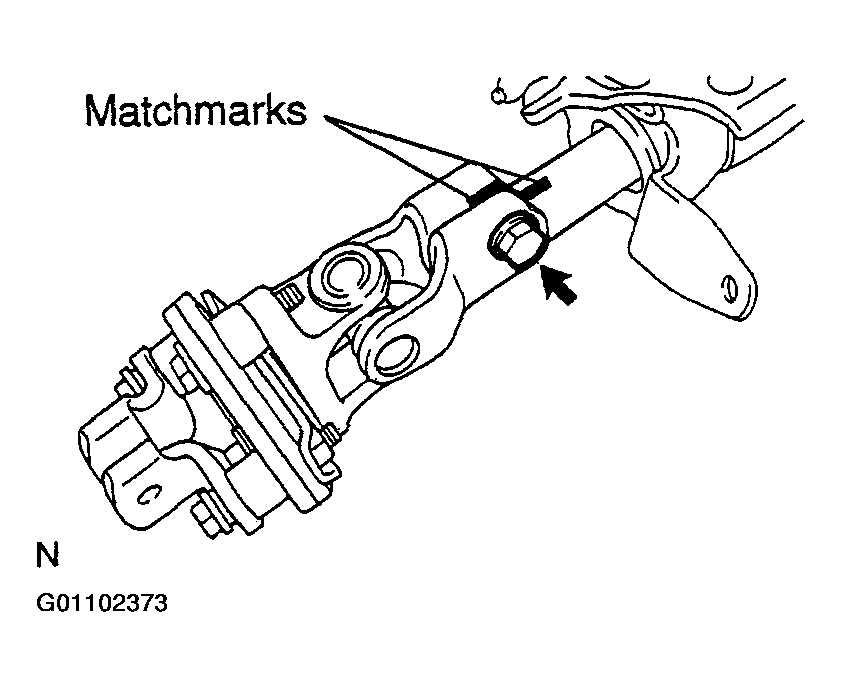

Fig 1: Aligning Universal Joint Assembly & Main Shaft Assembly Matchmarks
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Install the bolt.
Torque: 35 N.m (360 kgf.cm, 26 ft.lbf) .
