Step 4 - Install No. 2 Column Hole Cover Sub-Assembly And Intermediate Shaft Sub-Assembly

WARNING: This page is about a different car, the 2002 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the No. 2 column hole cover sub-assembly.
  2. Temporarily install the intermediate shaft sub-assembly with the bolt A.

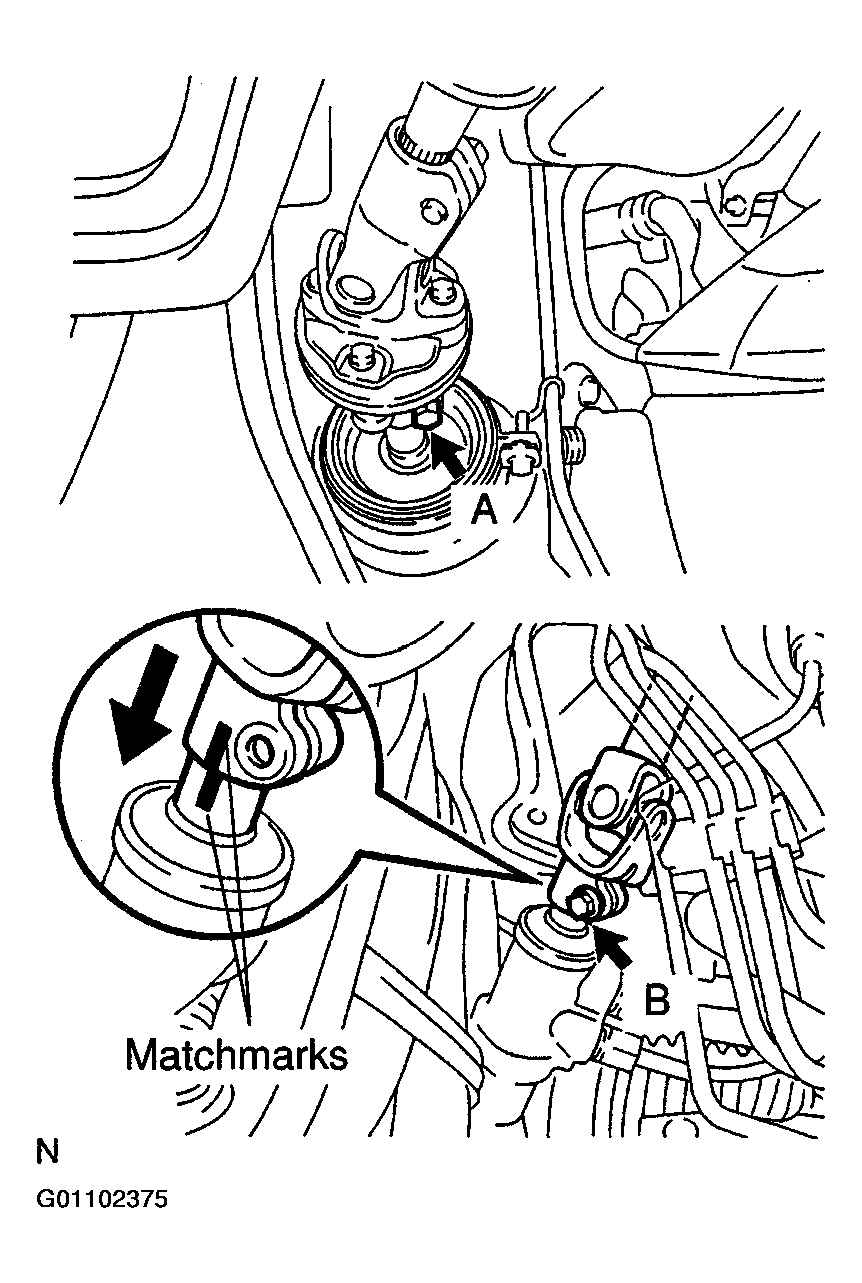

    Fig 1: Identifying Bolts A, B And Intermediate & Control Shaft Alignment Marks
    G01102375Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
