Step 7 - Connect Intermediate Shaft Sub-Assembly

WARNING: This page is about a different car, the 2002 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.

For Bolt locations, see Figure.

Align the matchmarks on the intermediate shaft sub-assembly and control valve shaft.
Install the bolt B.
Torque: 35 N.m (360 kgf.cm,26 ft.lbf) .
Torque the bolt A.
Torque: 35 N.m (360 kgf.cm, 26 ft.lbf) .
Connect the No. 2 column hole cover sub-assembly and tighten the clamp.

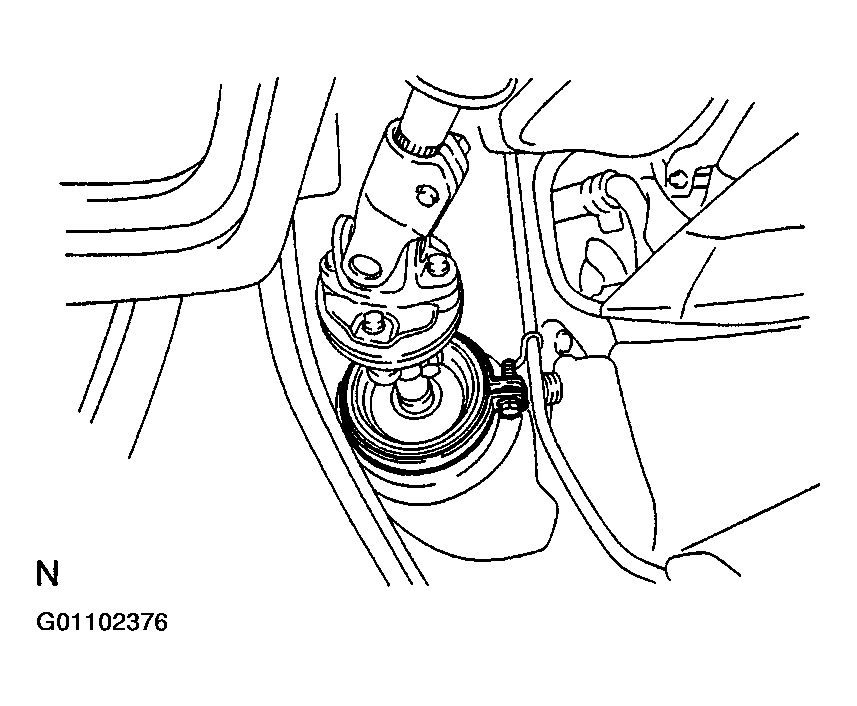

Fig 1: Locating No. 2 Column Hole Cover Clamp
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
