Step 15 - Remove Universal Joint Assembly

WARNING: This page is about a different car, the 2002 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.
  1. Place matchmarks on the universal joint assembly and main shaft assembly.
  2. Remove the bolt and universal joint assembly.

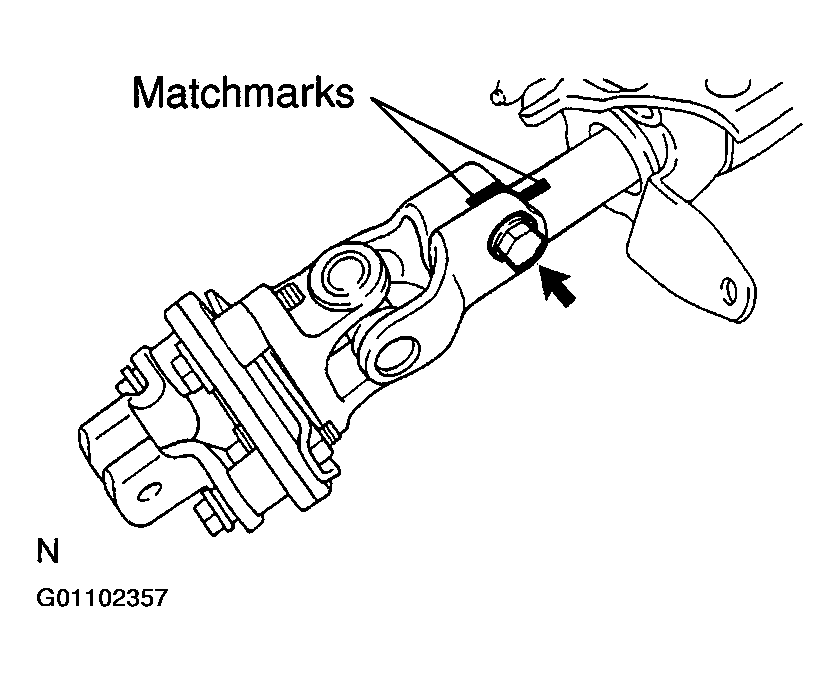

    Fig 1: Matchmarking Universal Joint & Main Shaft Assembly
    G01102357Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
