Terminals Of Ecu

WARNING: This page is about a different car, the 2002 Toyota Prius. However, it is still accessible from the selected car via links, so may be relevant.

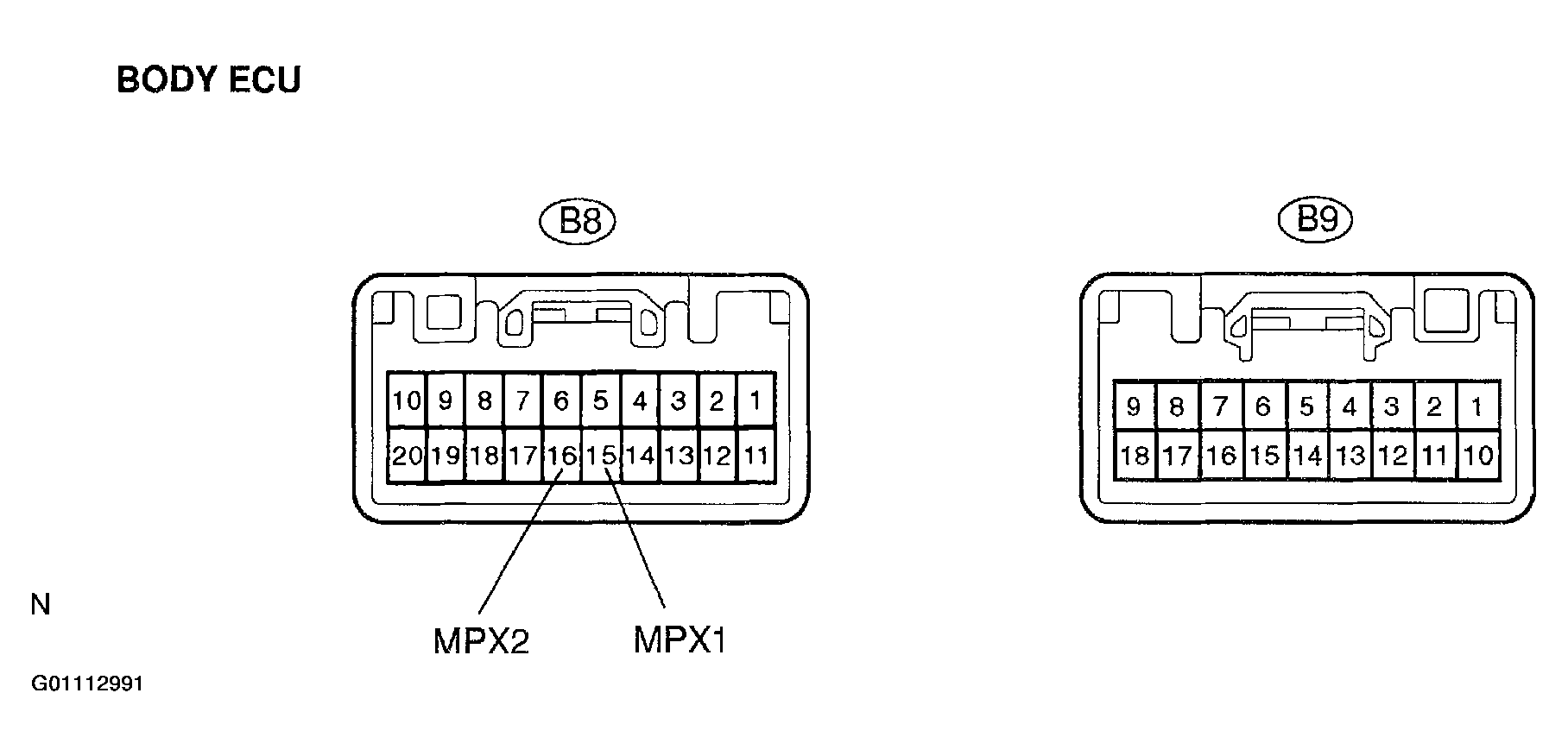

Fig 1: Identifying Body ECU Connector B8 & B9 Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

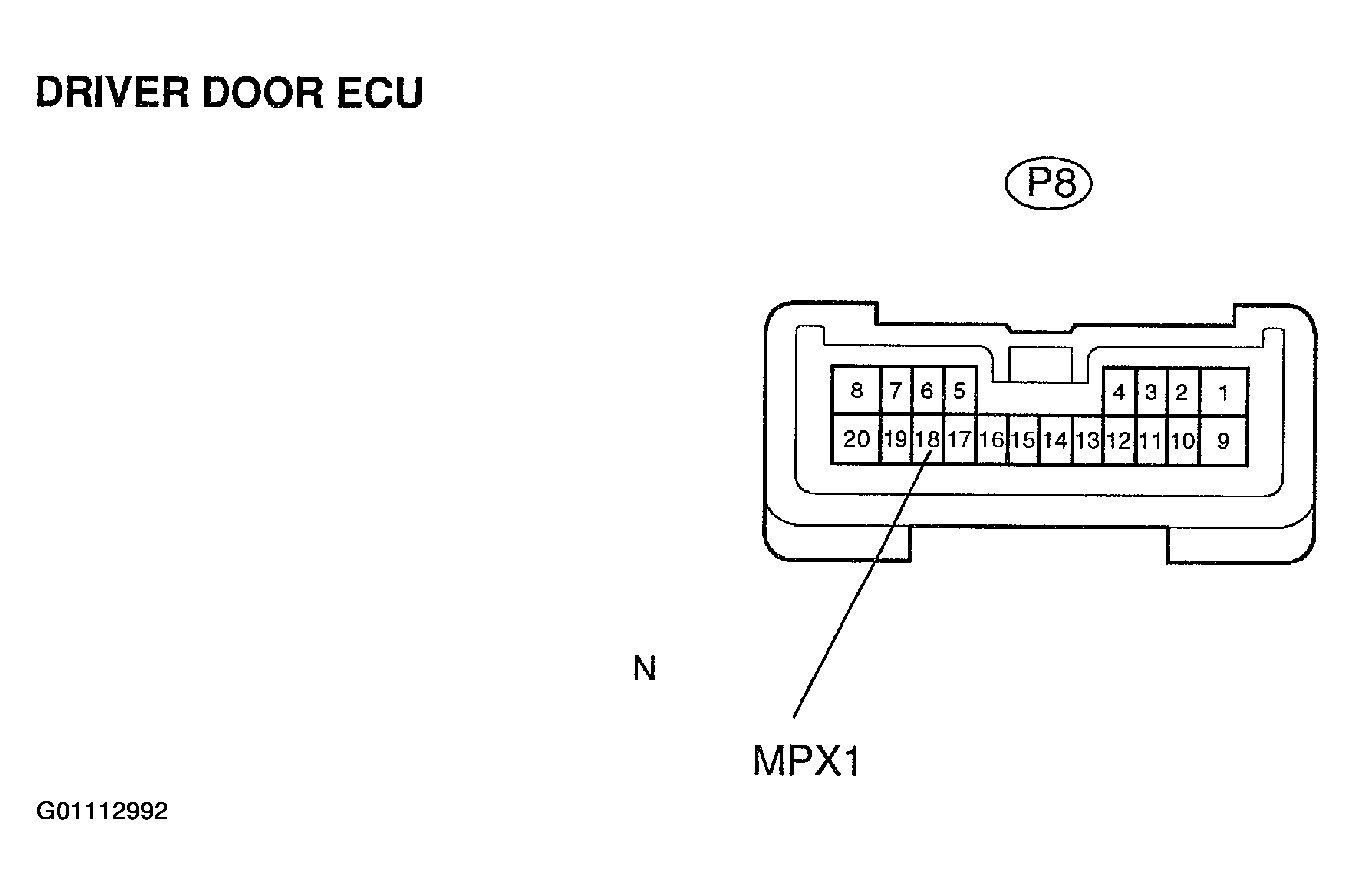

Fig 2: Identifying Driver Door ECU Connector PB Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

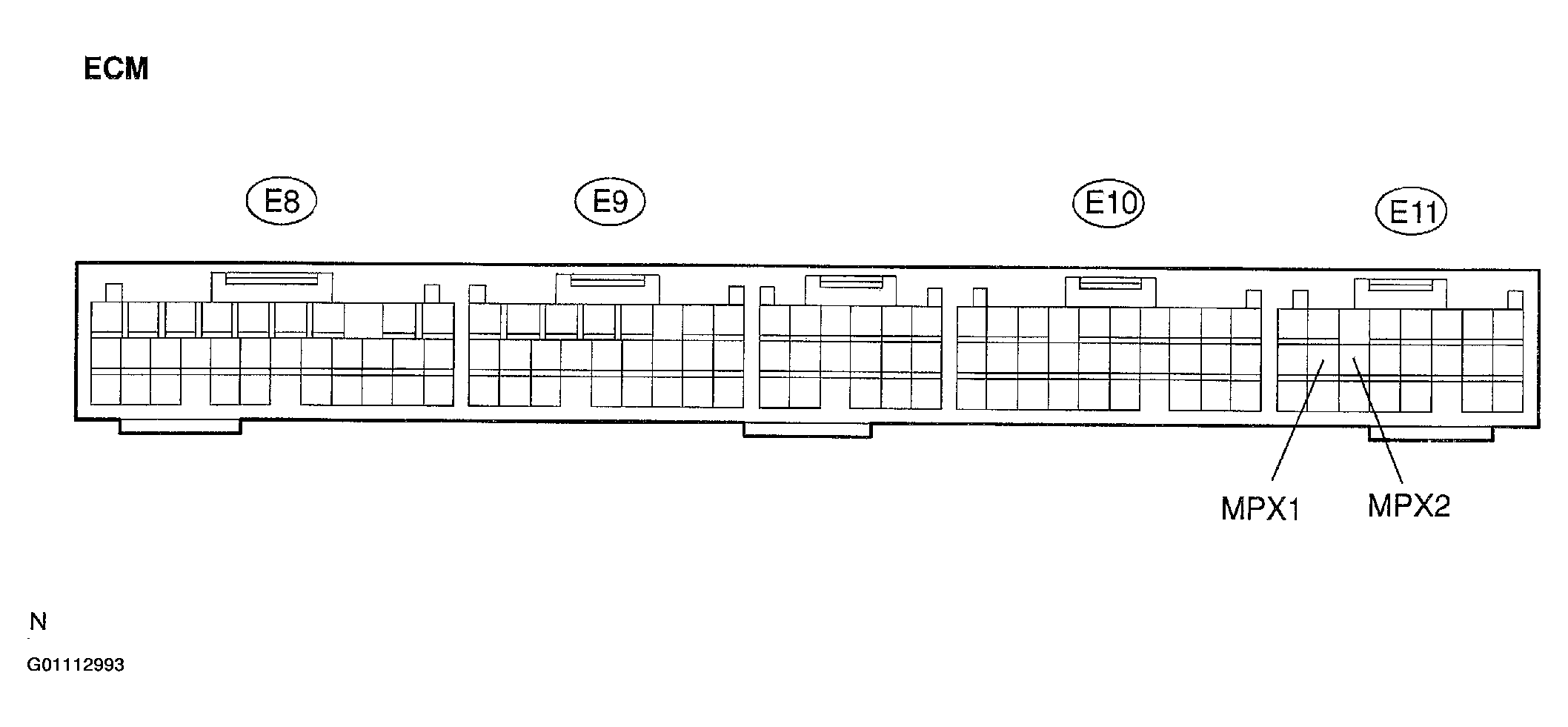

Fig 3: Identifying ECM Connector E8-E11 Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Identifying A/C Amplifier Connector A7-9 Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

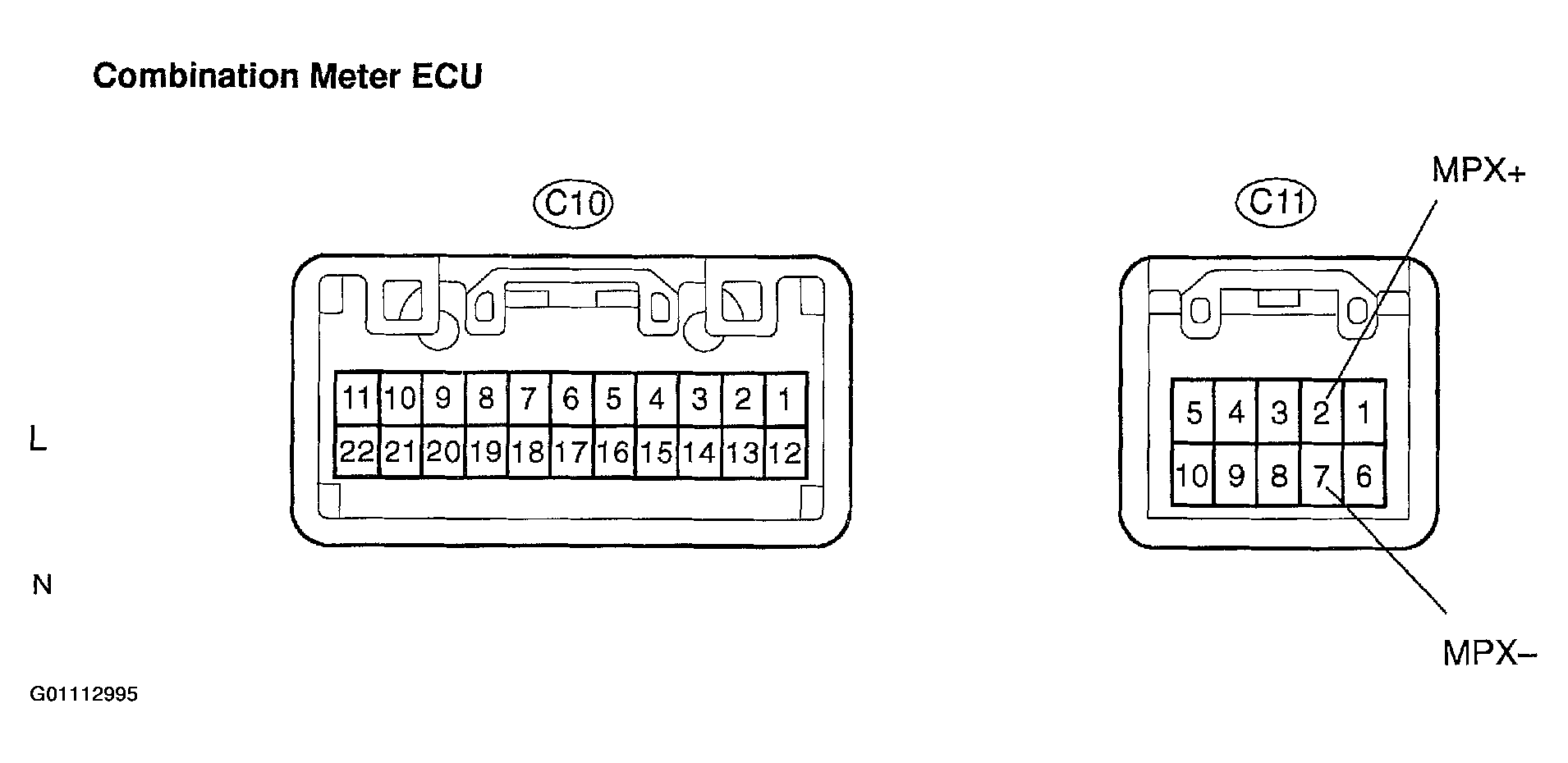

Fig 5: Identifying Combination Meter ECU Connector C10 & C11 Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

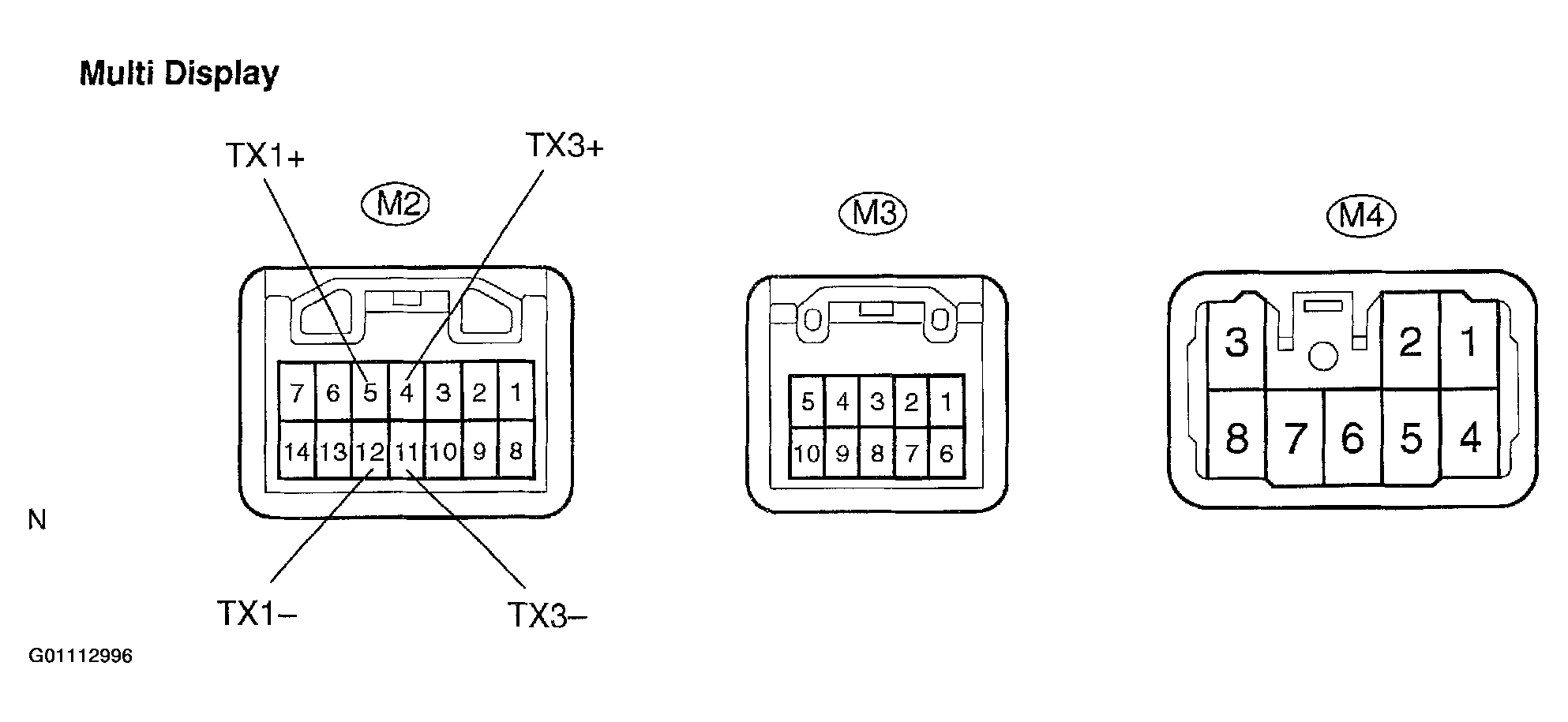

Fig 6: Identifying Multi Display Connector M2-4 Terminals

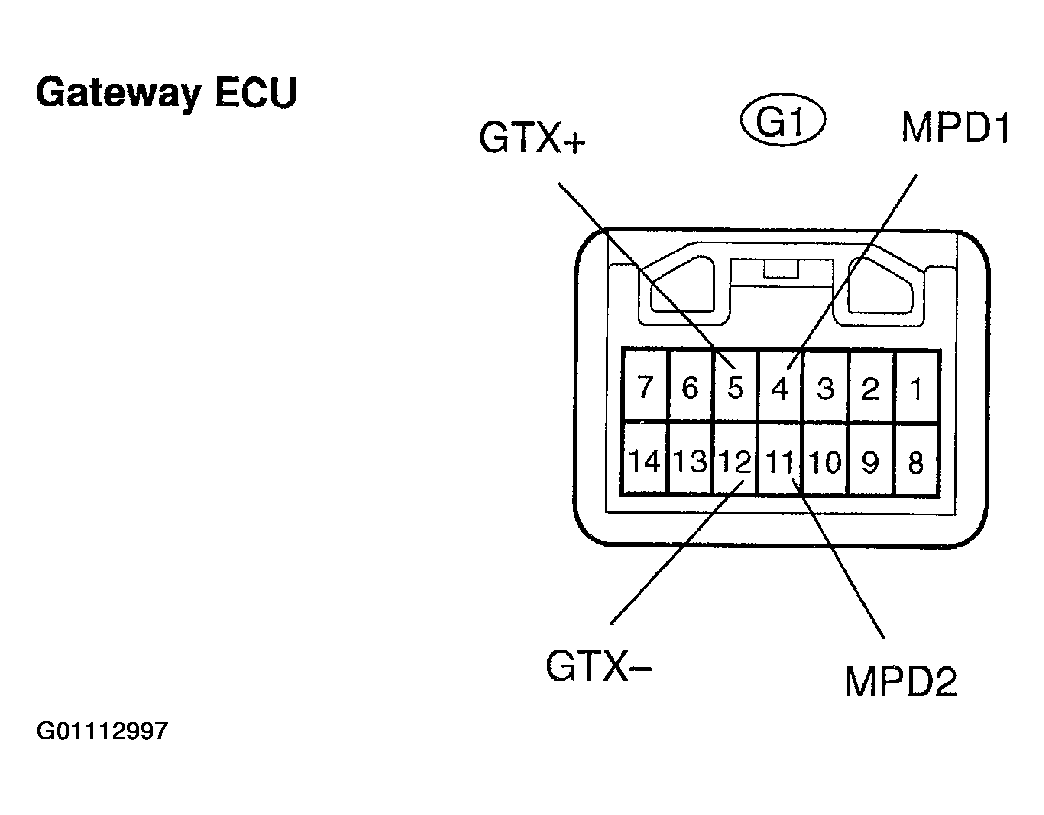

Fig 7: Identifying Gateway ECU Connector G1 Terminals

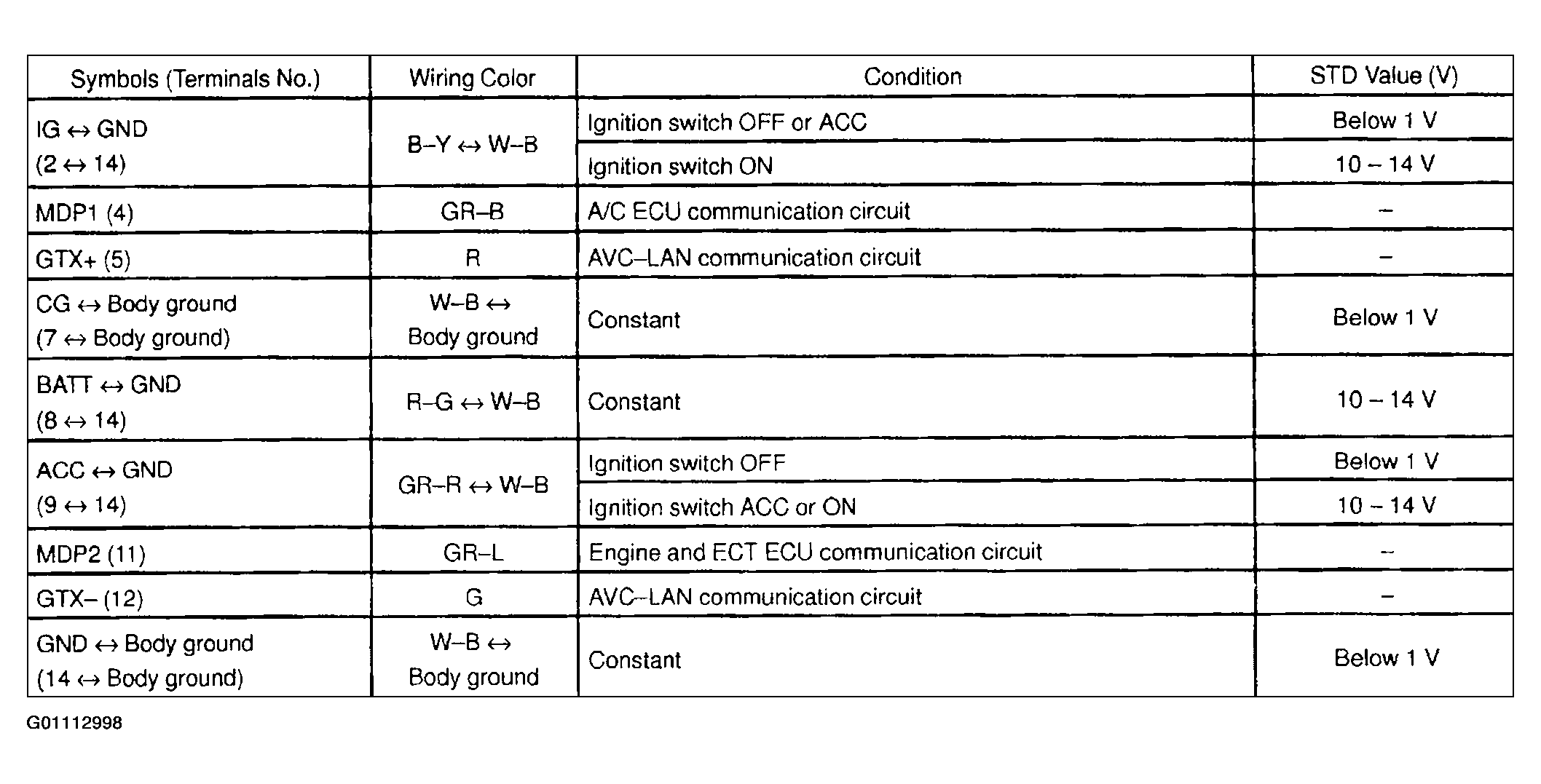

Fig 8: Identifying Terminal Specifications
