Terminals Of Ecu

WARNING: This page is about a different car, the 2003 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.

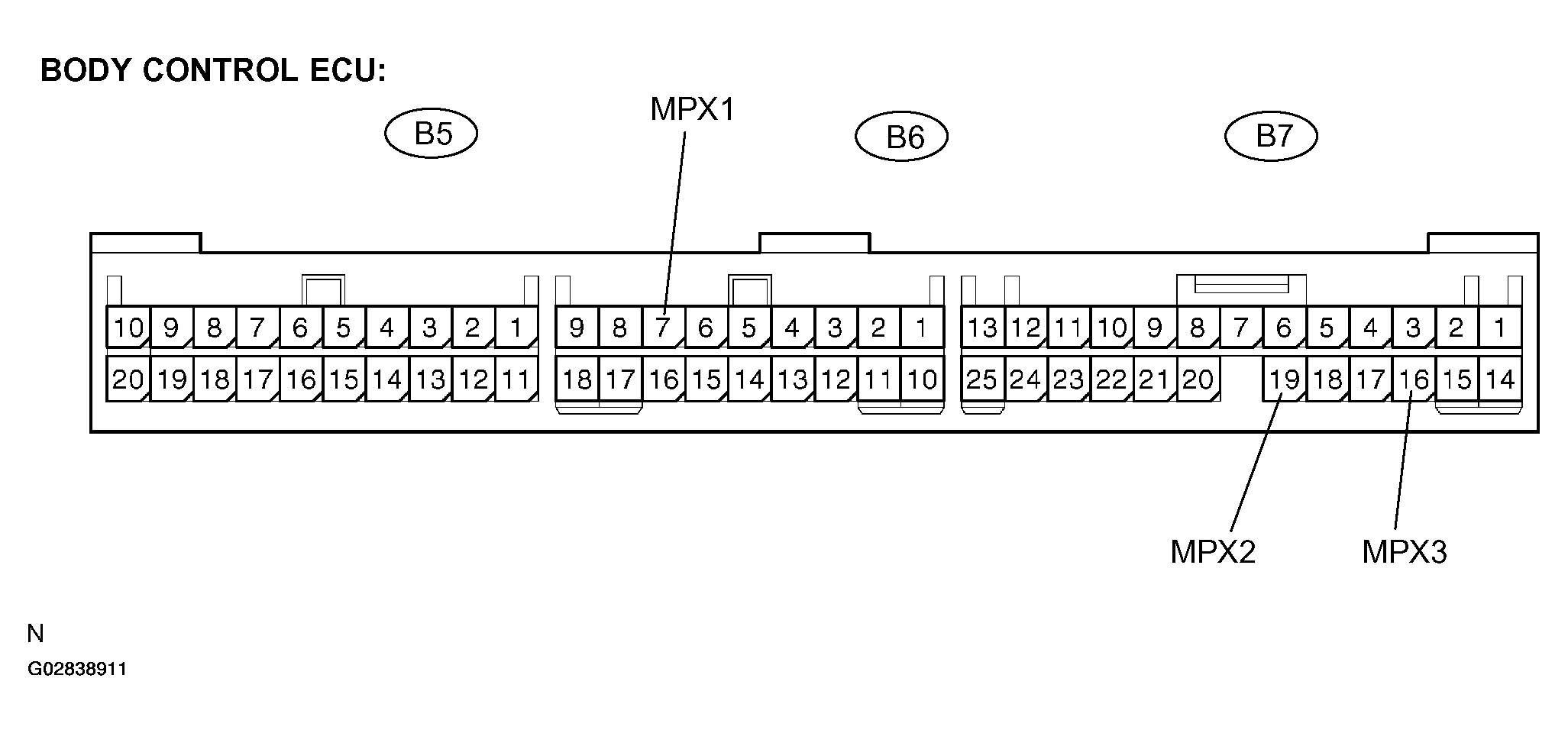

Fig 1: Identifying Terminals Of ECU - Body Control ECU

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

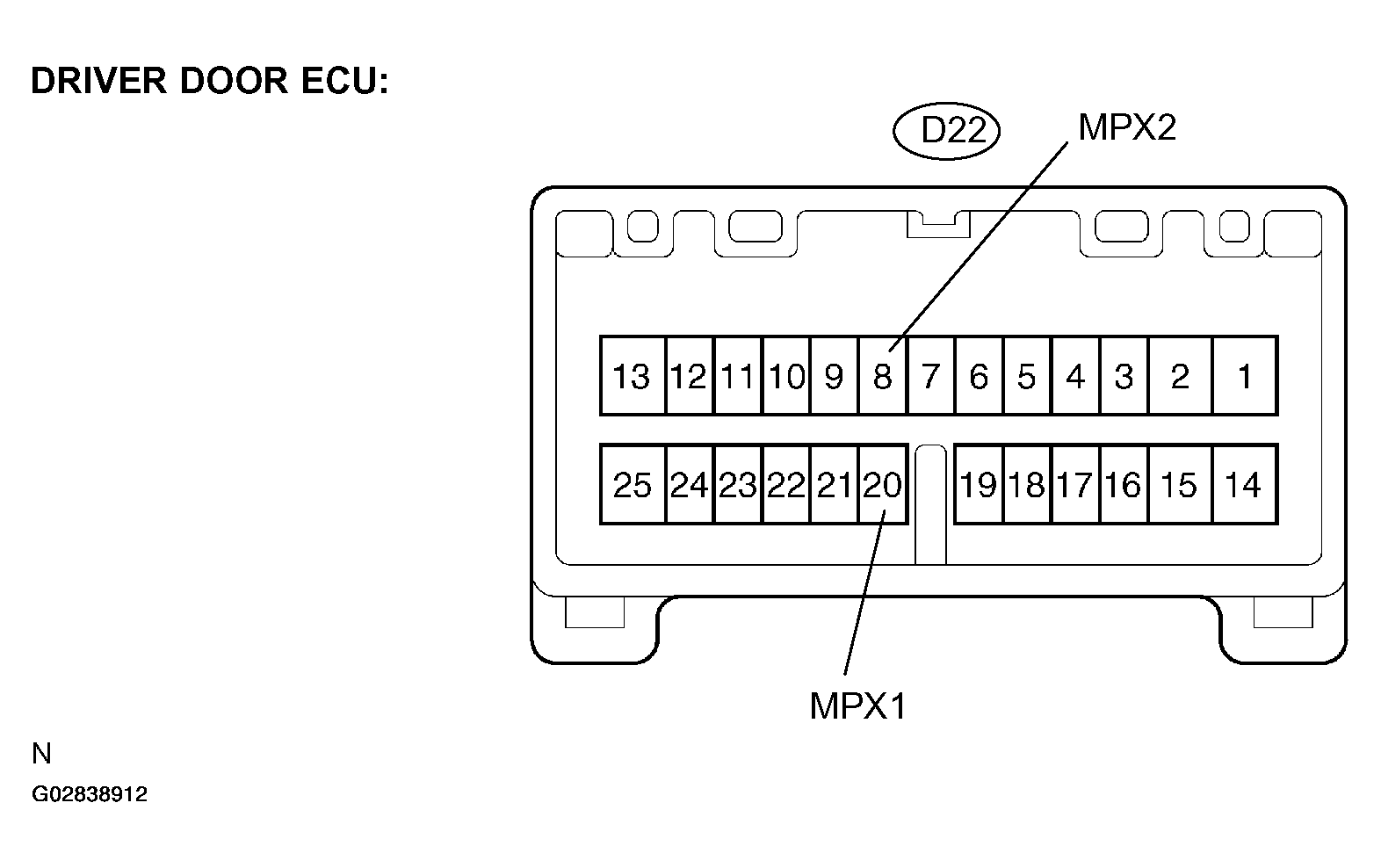

Fig 2: Identifying Terminals Of ECU - Driver Door ECU

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

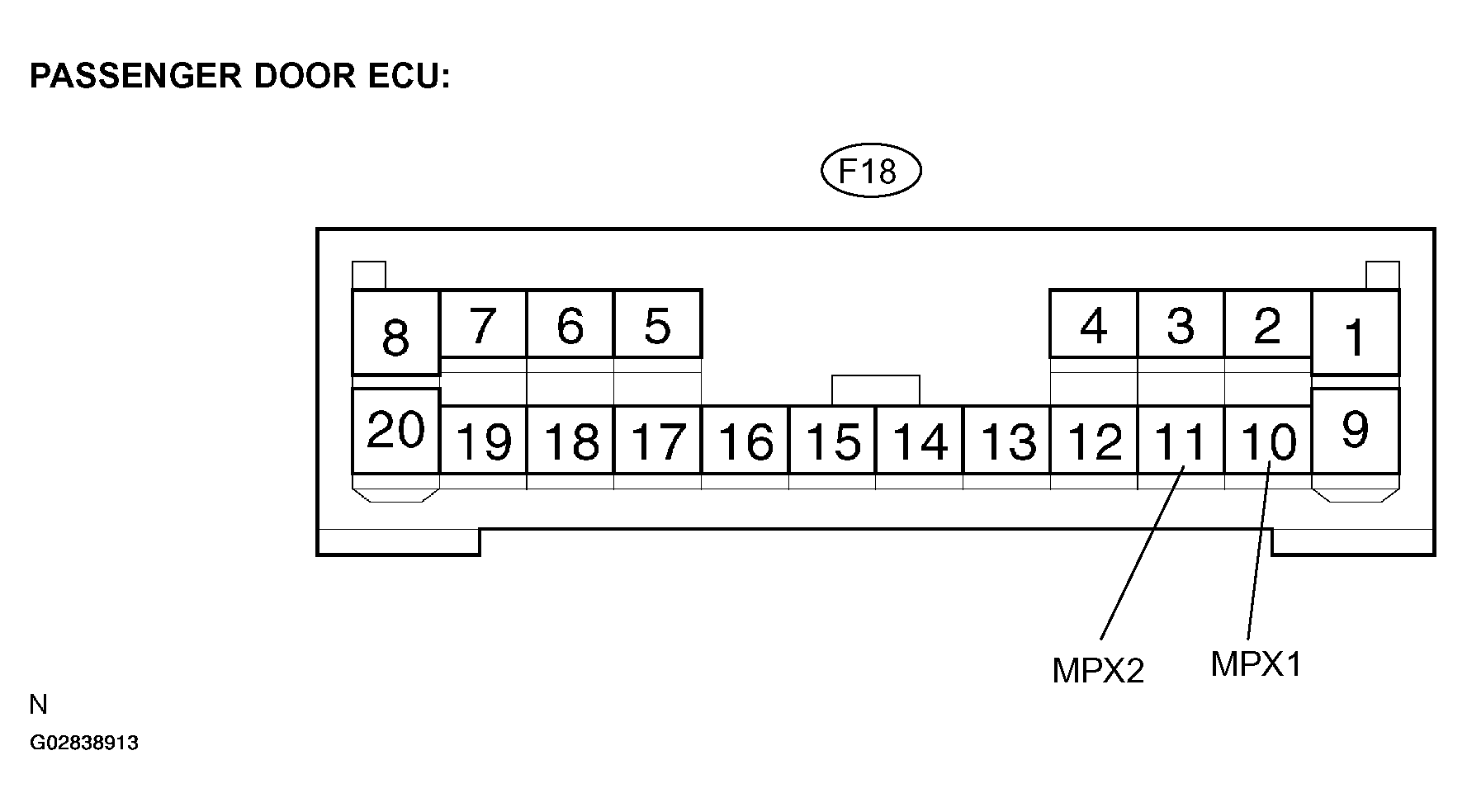

Fig 3: Identifying Terminals Of ECU - Passenger Door ECU

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

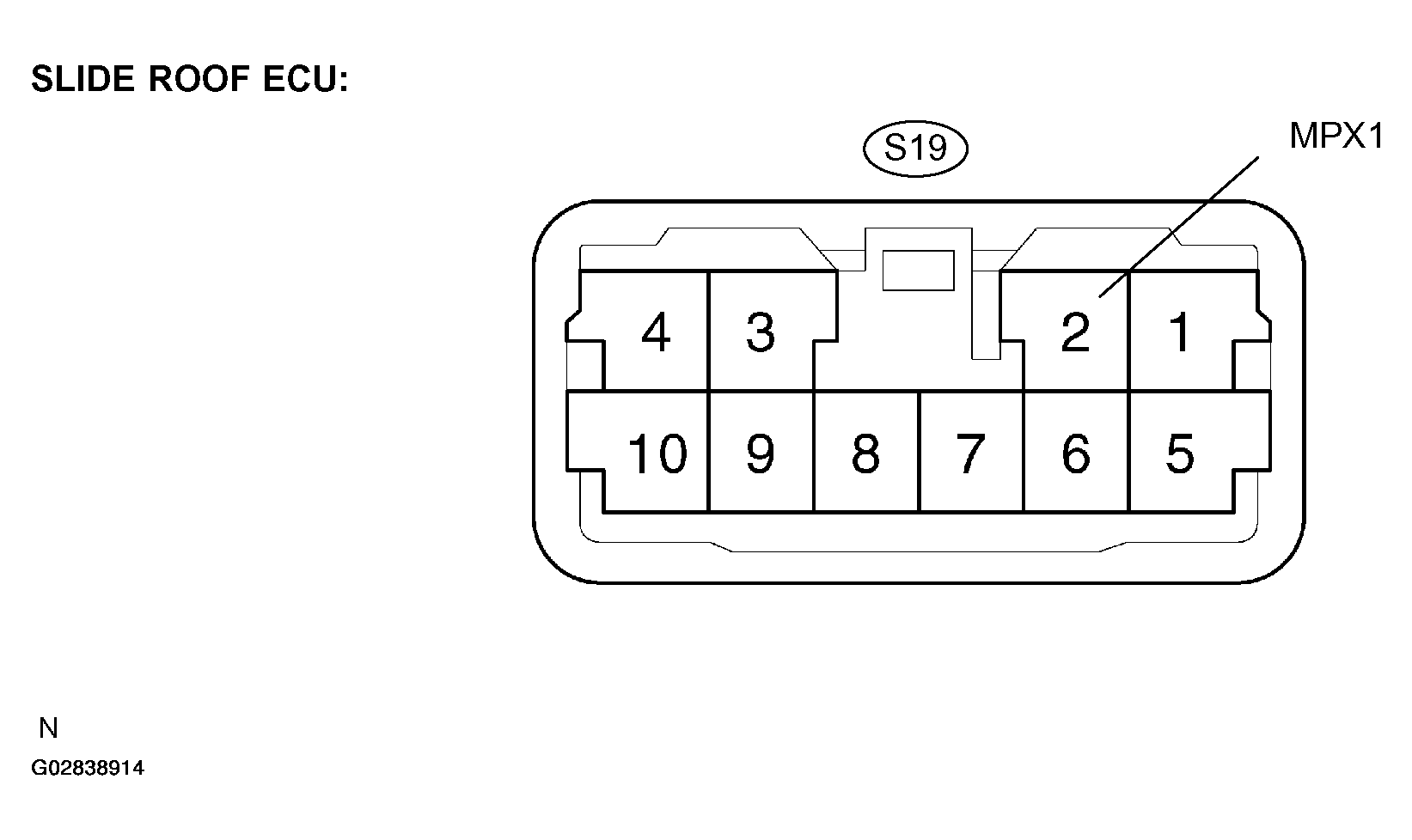

Fig 4: Identifying Terminals Of ECU - Slide Roof ECU

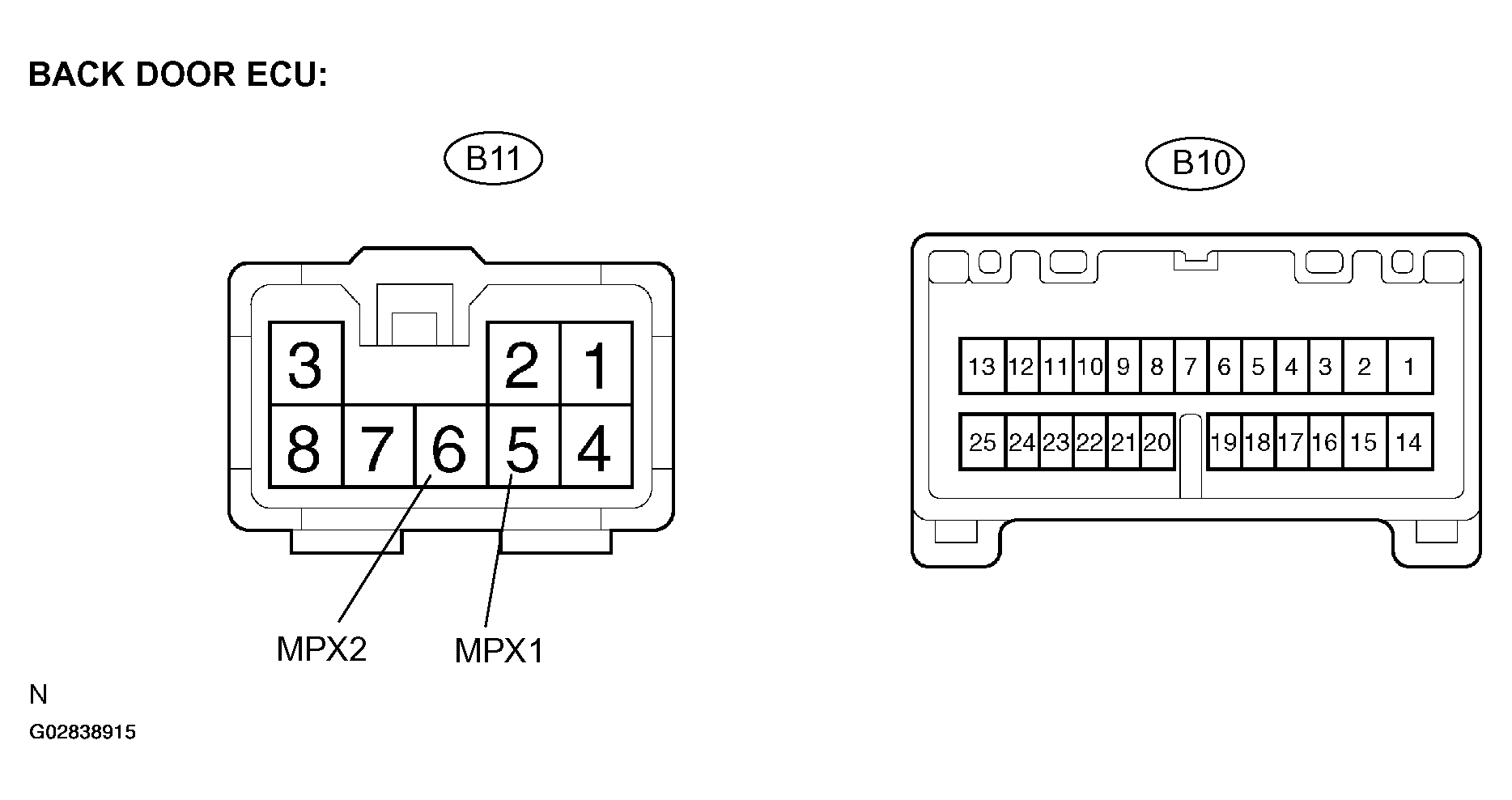

Fig 5: Identifying Terminals Of ECU - Back Door ECU

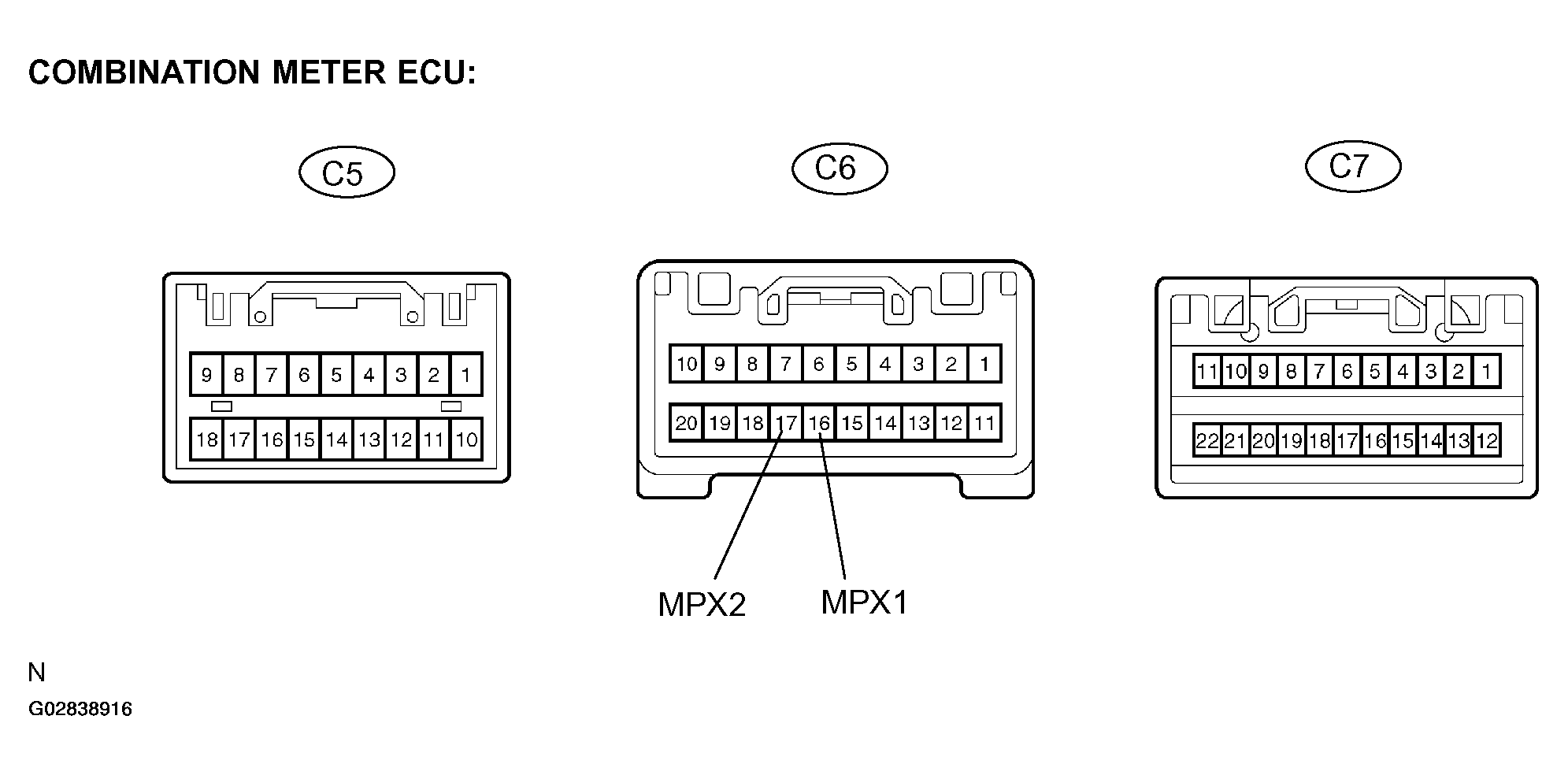

Fig 6: Identifying Terminals Of ECU - Combination Meter ECU
