Remove Center Cluster Integration Panel

WARNING: This page is about a different car, the 2003 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the 2 screws.
  2. Remove integration control panel by pulling the portions indicated by arrows in the illustration.
  3. Disconnect the connector.

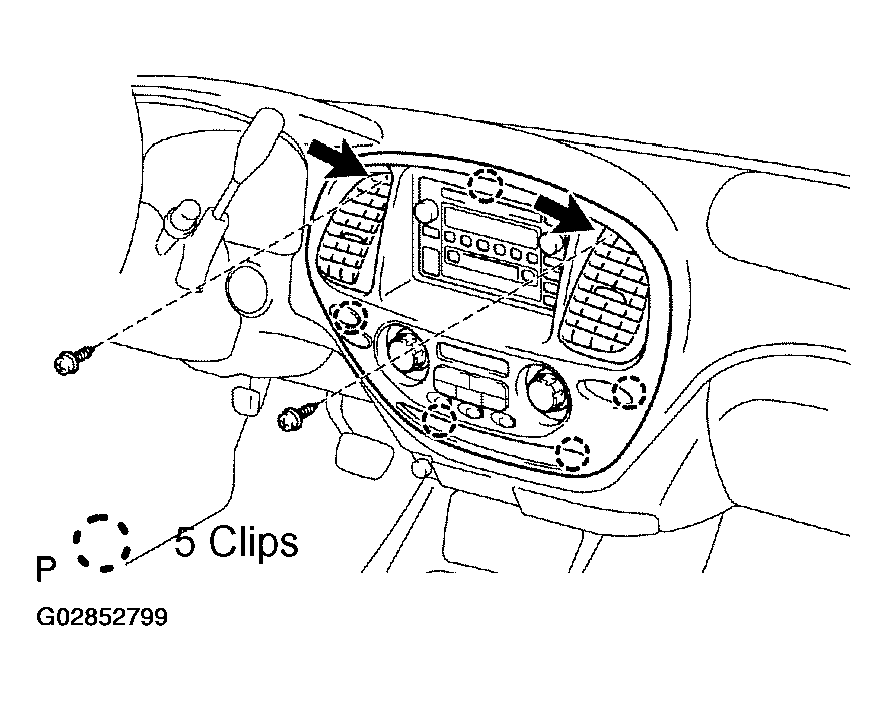

    Fig 1: Removing Center Cluster Integration Panel
    G02852799Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
