Center Stop Lamp Assembly: Replacement

WARNING: This page is about a different car, the 2004 Toyota Matrix. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE CENTER STOP LAMP ASSY
1. Remove the 2 clips and center stop light cover.

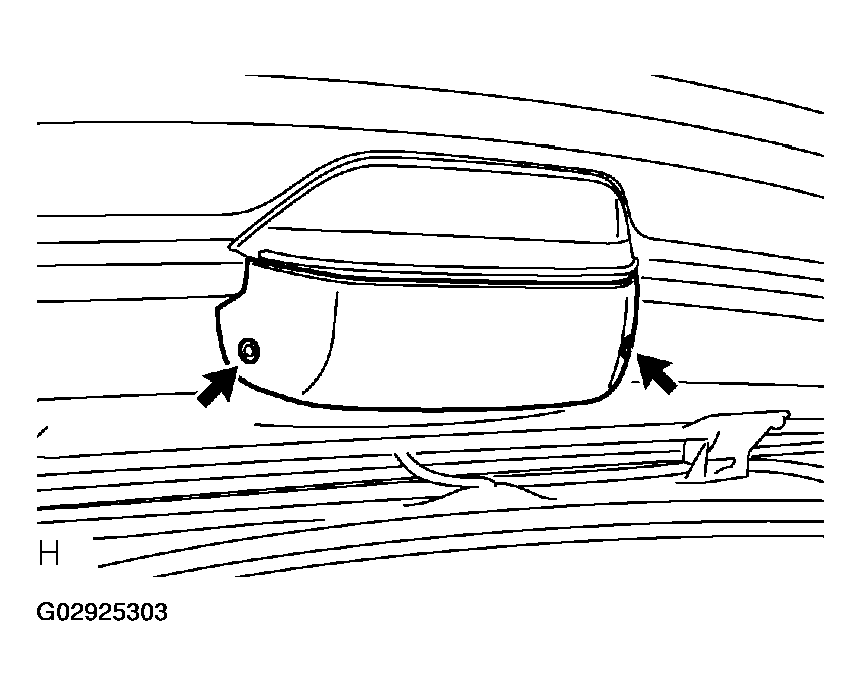

  Fig 1: Removing Center Stop Light Cover Clips
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the 2 bolts.

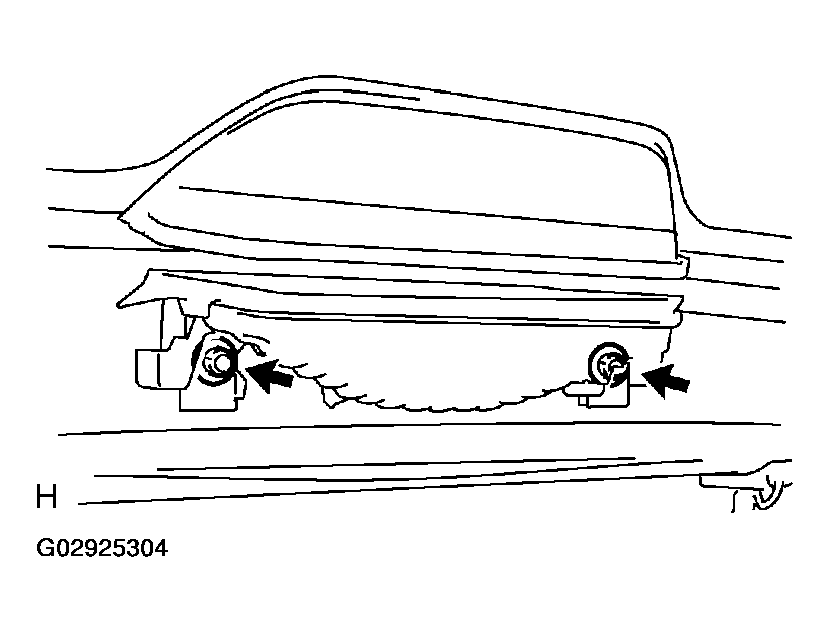

  Fig 2: Removing Center Stop Light Assy Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Disconnect the connector and remove the center stop light assy.
