LH Headlamp Assembly: Adjustment

WARNING: This page is about a different car, the 2004 Toyota Matrix. However, it is still accessible from the selected car via links, so may be relevant.
  1. HEADLIGHT AIM ONLY
    1. Place the vehicle in the following conditions.
      • The area around the headlight is not deformed.
      • The vehicle is parked on a level surface.
      • Tire inflation pressure is in the specified value (See INSPECTION )
      • A driver is in the driver's seat and the vehicle is in a state ready for driving (with a tank full)
      • The vehicle has been bounced several times.
    2. Check the headlight aiming.
      1. Prepare a thick white paper.
      2. Stand the paper perpendicular to the ground at the position 9.84 ft away from the headlights.
      3. Ensure that the center line of the vehicle and the paper face forms a 90-degree angle as shown in Fig 1 .

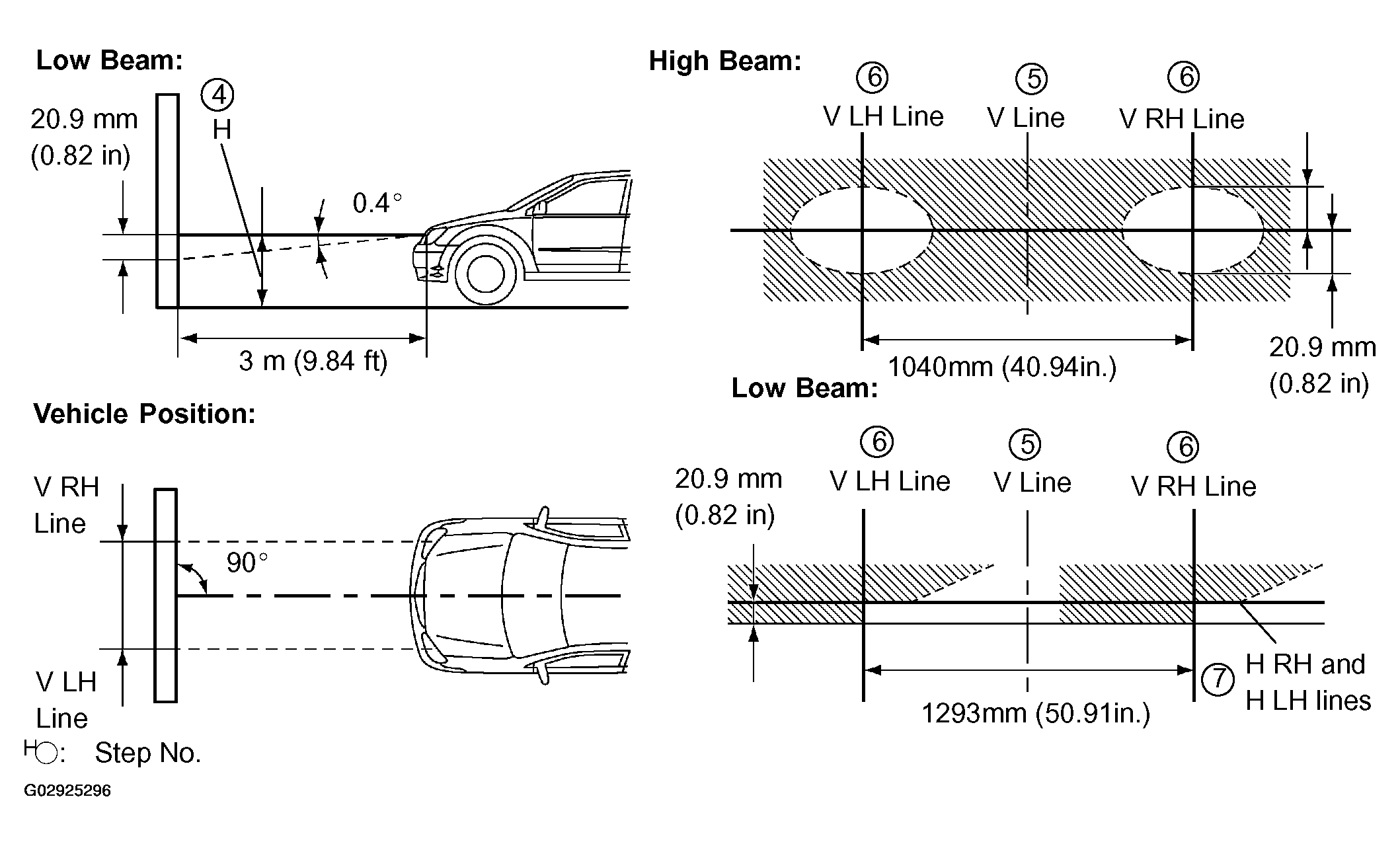

        4. Fig 1: Aiming Headlights
        G02925296Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      4. Draw a horizontal line (H line) on the paper, showing where the headlights should strike.
      5. Draw a vertical line (V line) to where the center line of the vehicle is to be.
      6. Draw 2 vertical lines to where the both headlights should strike (V RH and V LH lines).
      7. Draw a horizontal line (by connecting the both low beam center marks) to where the headlights should strike (H RH and H LH lines).
      8. Take appropriate measures to prevent any influence of other lights.
      9. Set the headlights leveling position to "O" position and adjust the angle of the headlight axis.
        NOTE:

        The H RH and H LH line is 0.4° below the horizontal line (H line) of the light axis.

      10. Start the engine.
      11. Turn the headlights ON.
      12. Check that the headlights properly strike the position shown in Fig 1 .
      13. If not, adjust the lights in the vertical direction.
      NOTE:
      • Adjust each aim of the RH and LH lights as shown in Fig 2 .

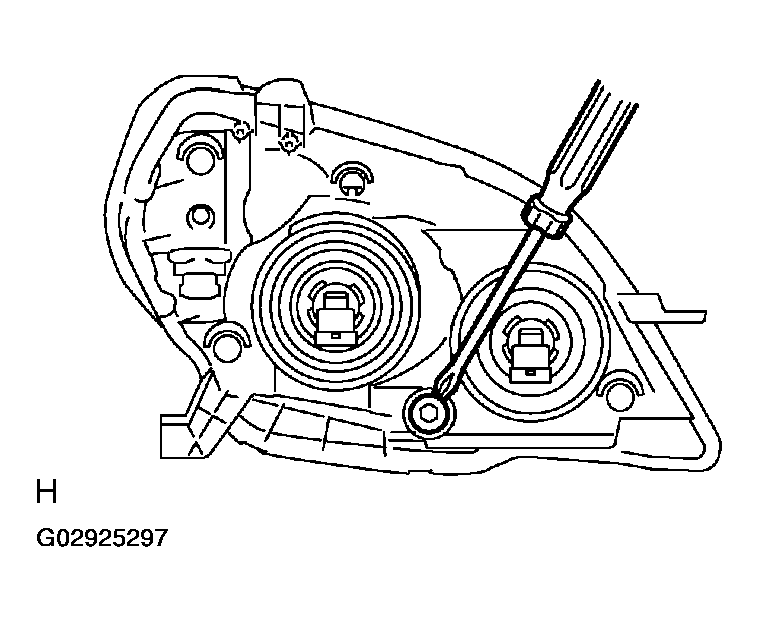

        • Fig 2: Adjusting Vertical Direction Adjuster Bolt
        G02925297Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • Since the horizontal direction is impossible to adjust, the value of the "Low Beam" aim is reference value.
    3. When adjusting the headlight aim in the vertical direction: Using adjusting bolt, adjust the headlight aim to be within the specified range.
      NOTE:

      The optical aim moves upward when turning a screwdriver clockwise, while it moves downward when turning a screwdriver counterclockwise.
