Amplifier Antenna Assembly: Replacement

WARNING: This page is about a different car, the 2004 Toyota Matrix. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

COMPONENTS

REMOVE ROOF ANTENNA POLE SUB-ASSY
REMOVE ROOF HEADLINING ASSY (See REPLACEMENT )
NOTE:
Refer to the instructions for removal of the roof headlining assy.
REMOVE AMPLIFIER ANTENNA ASSY
1. Remove the 4 clamps and antenna nut.

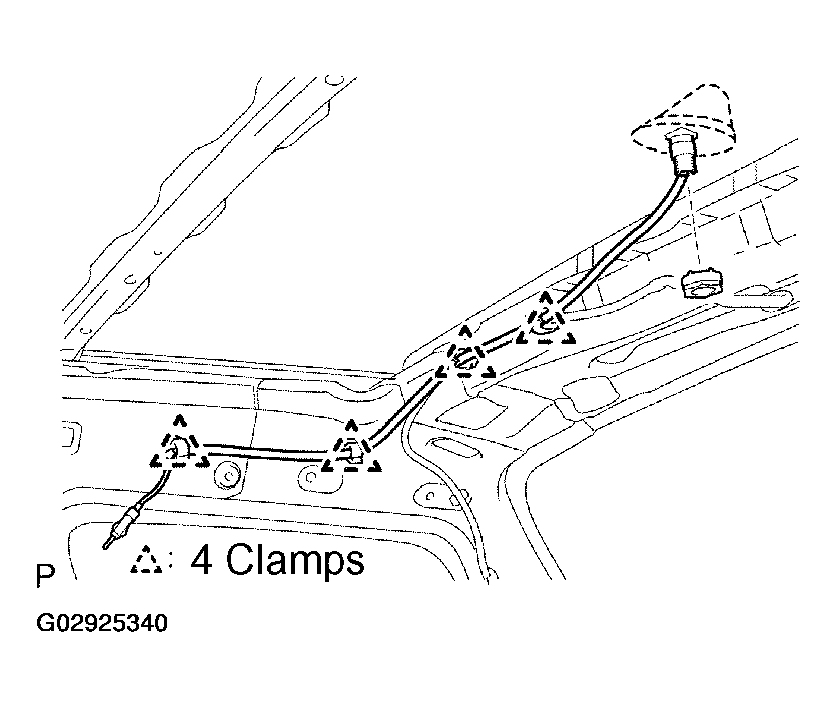

  Fig 1: Removing Clamps And Antenna Nut
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Release the 2 fitting claws, remove the amplifier antenna assy.

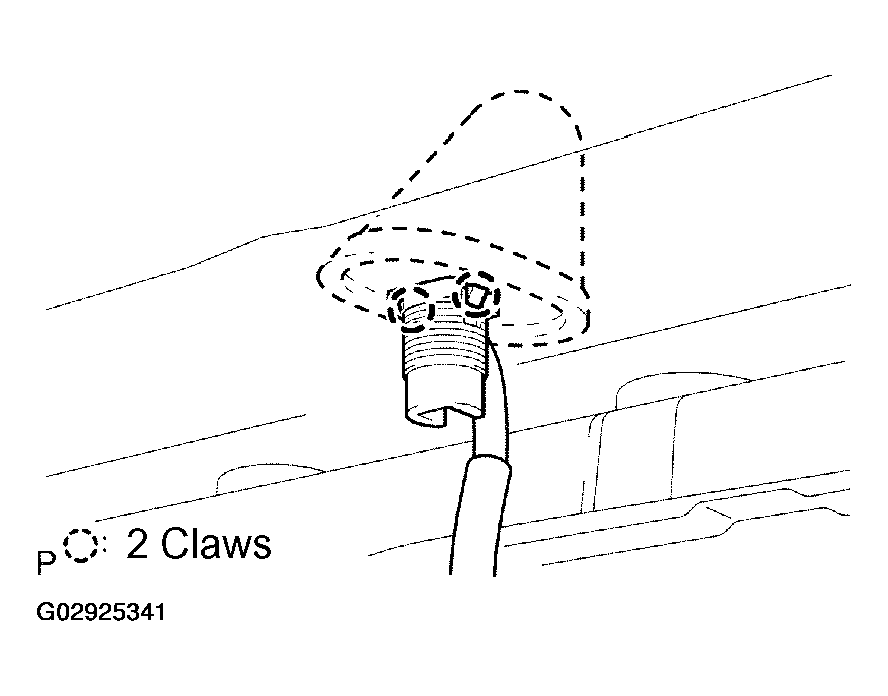

  Fig 2: Releasing Amplifier Antenna Assy Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL AMPLIFIER ANTENNA ASSY
1. Set the amplifier antenna assy to the hole on the roof, and place the antenna cord on the cutout on the antenna nut.

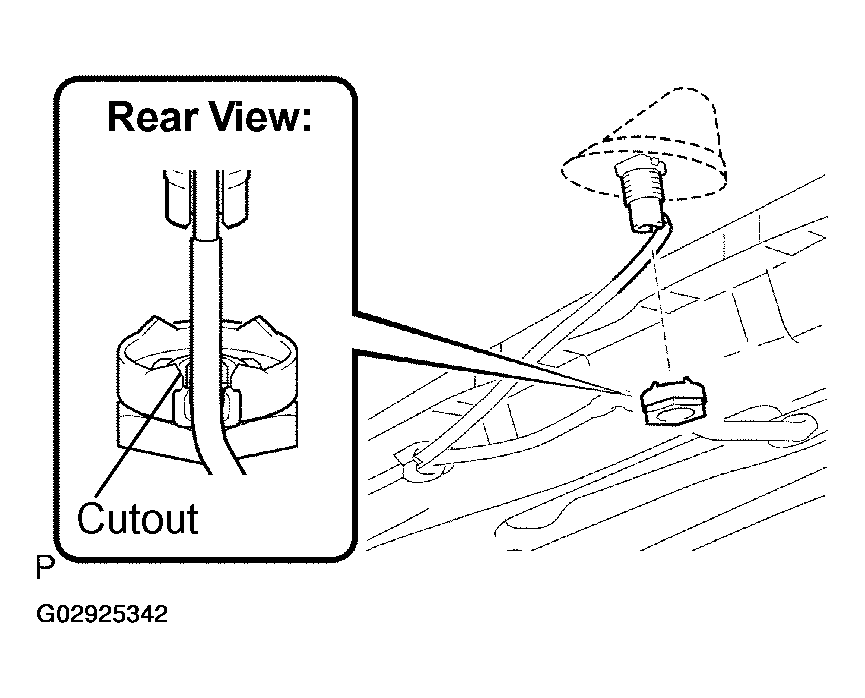

  Fig 3: Installing Antenna Nut
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the amplifier antenna assy with the antenna nut.
  Torque: 4.5 N.m (46 kgf.cm, 40 in. lbf)
3. Install the 4 clamps.

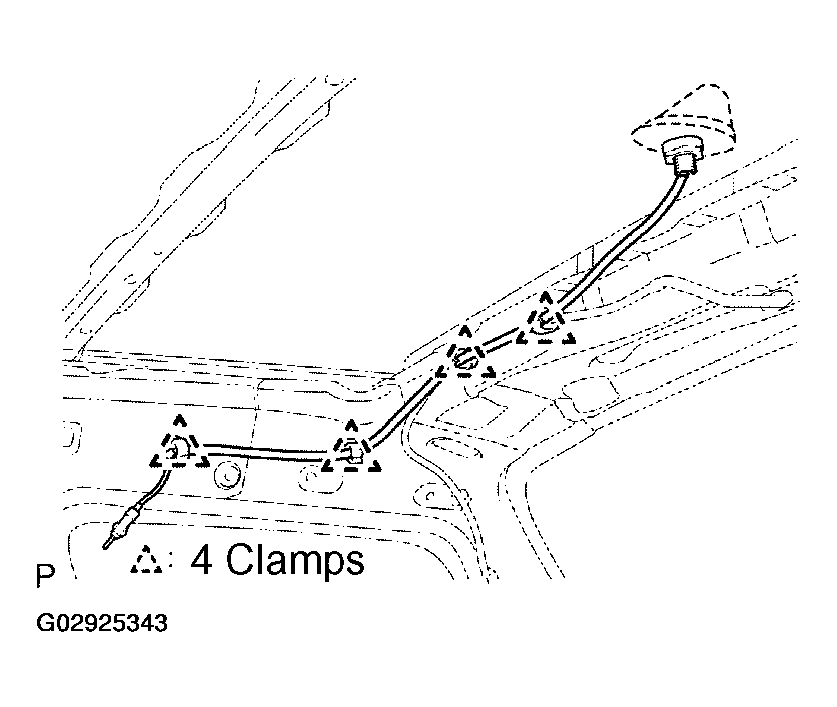

  Fig 4: Installing Amplifier Antenna Nut And Clamps
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL ROOF HEADLINING ASSY (See REPLACEMENT )
INSTALL REAR SEAT CUSHION ASSY AND REAR SEAT BACK ASSY (See OVERHAUL )
