Navigation Antenna Chord Sub-Assembly: Replacement

WARNING: This page is about a different car, the 2004 Toyota Matrix. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

COMPONENTS

REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSY CENTER (See REPLACEMENT )
REMOVE NAVIGATION RECEIVER ASSEMBLY W/BRACKET (See REPLACEMENT )
REMOVE NAVIGATION ANTENNA CORD SUB-ASSY
1. Disconnect the connector, remove the navigation antenna cord sub-assy.

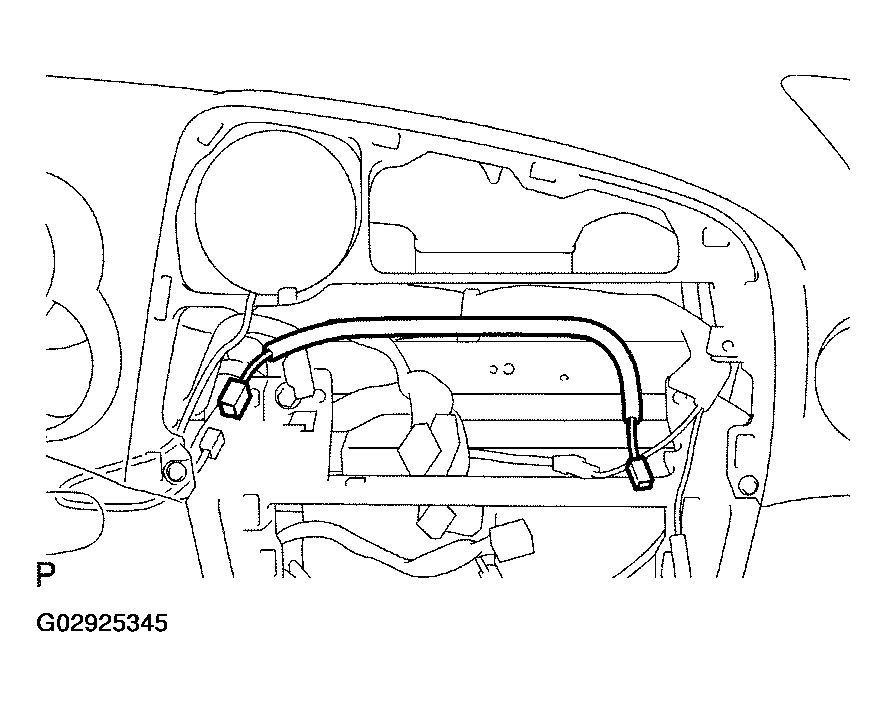

  Fig 1: Removing Navigation Antenna Cord Sub-Assy.
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
