Section 12 (Partial Engine Assembly - 2ZZ-GE): Components

WARNING: This page is about a different variant/trim than selected.

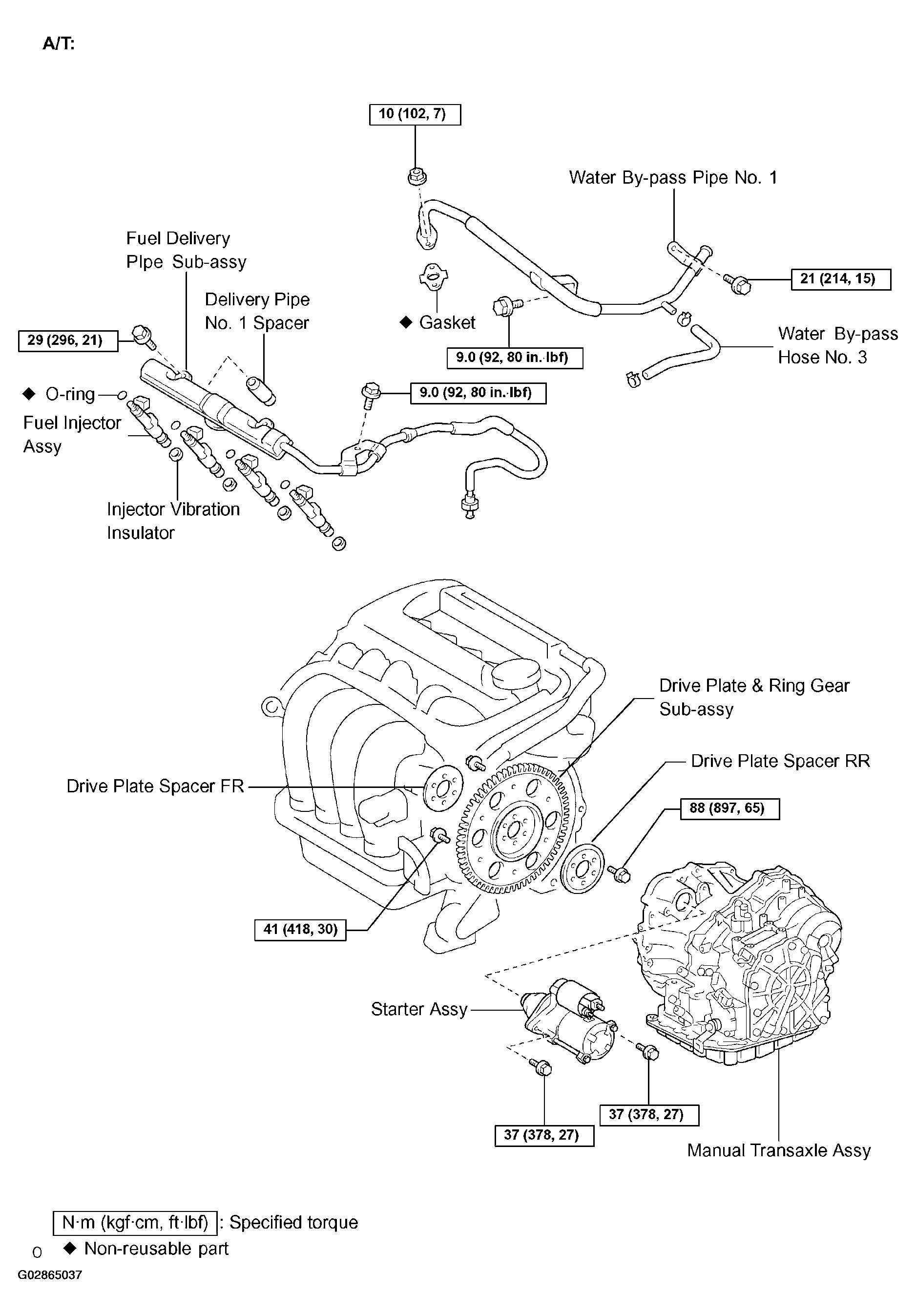

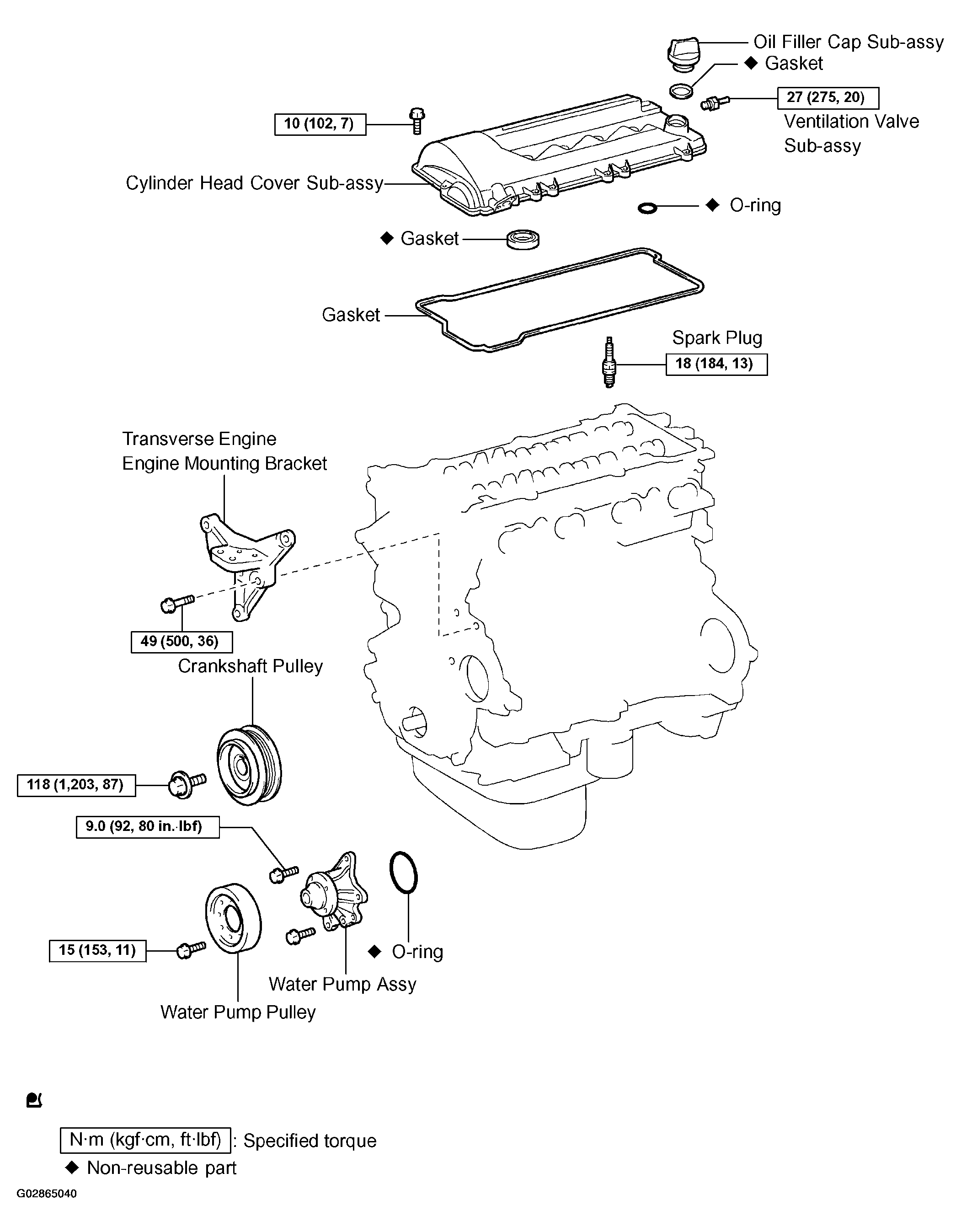

Fig 1: Identifying Partial Engine Components (1 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

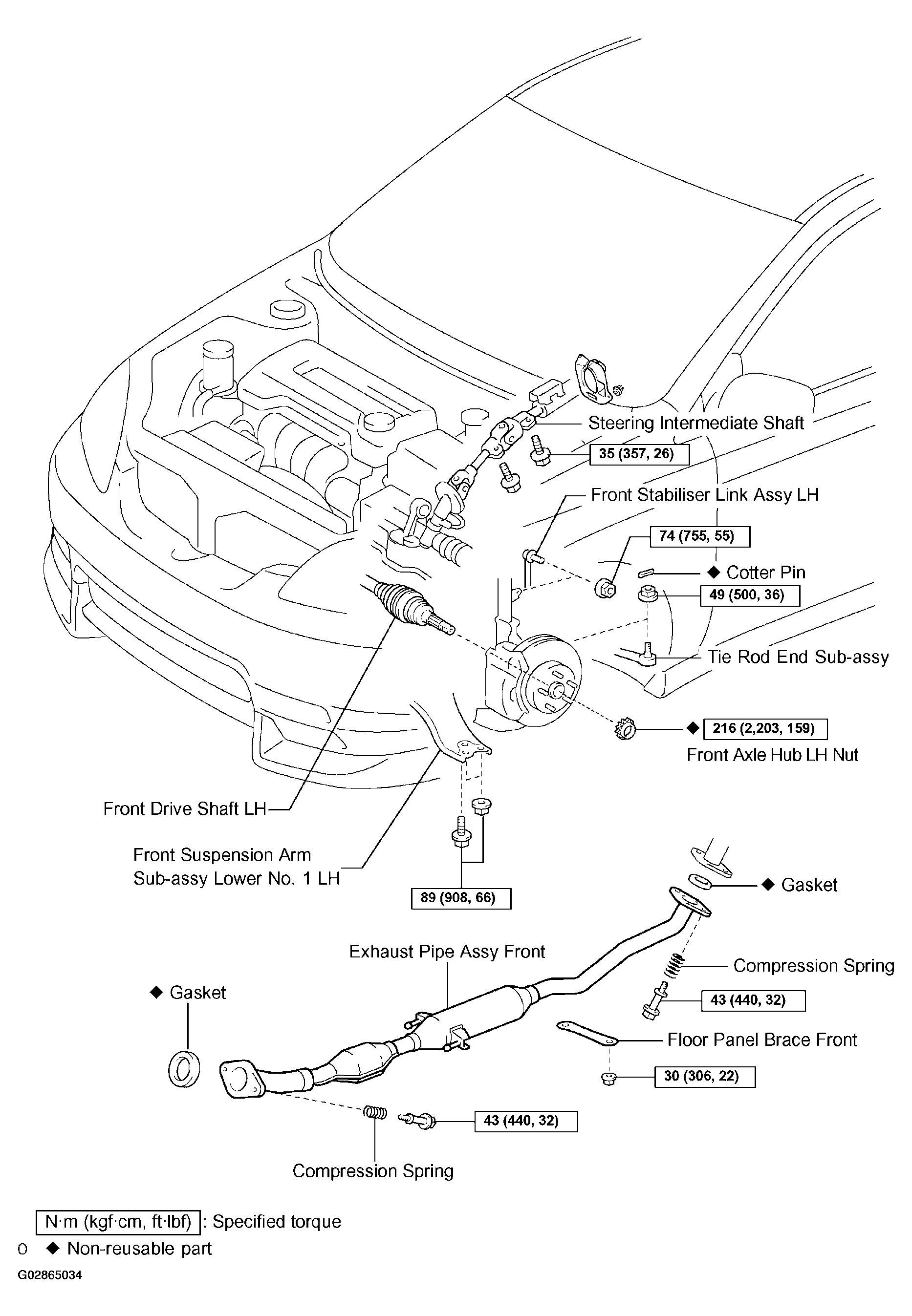

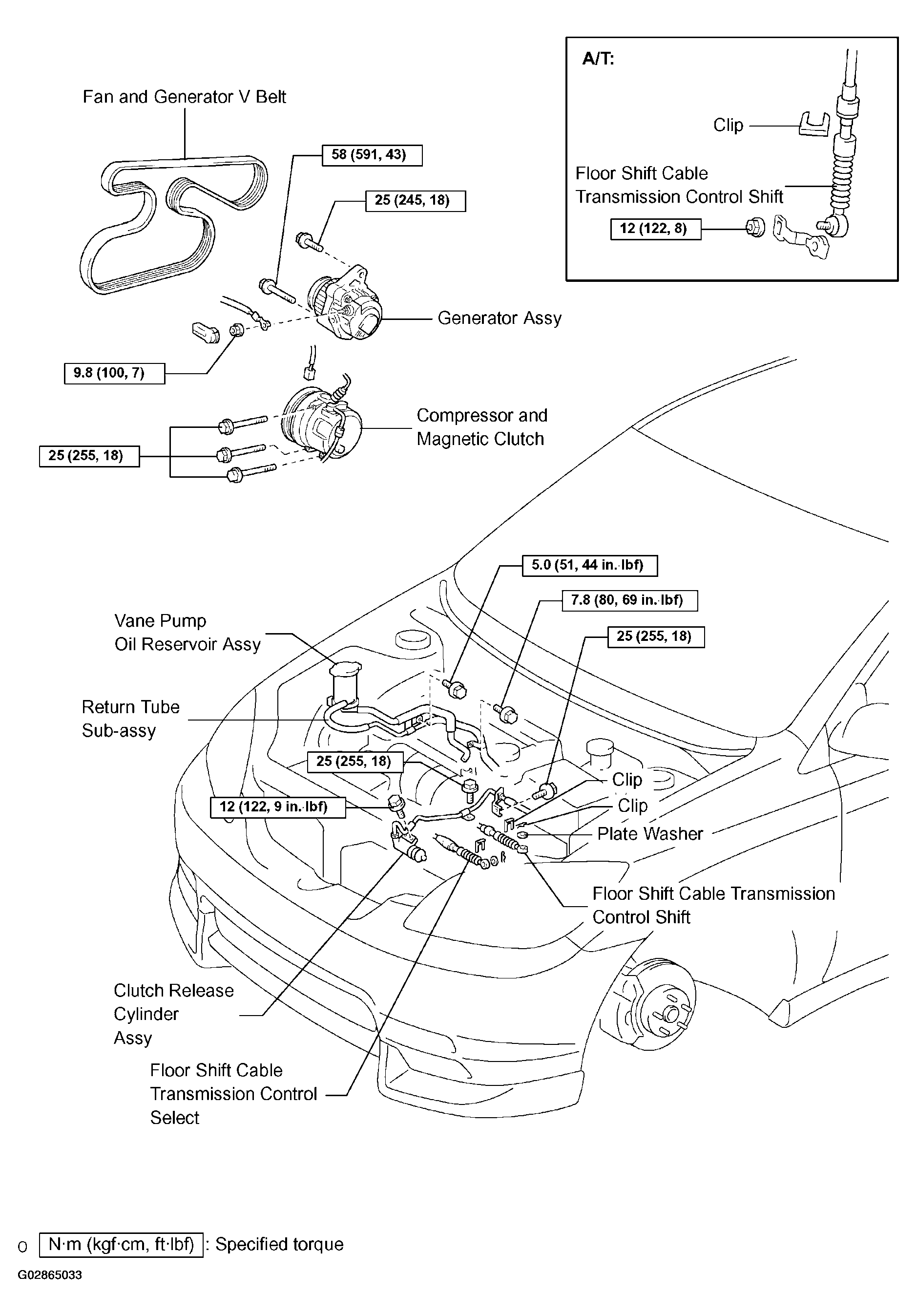

Fig 2: Identifying Partial Engine Components (2 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

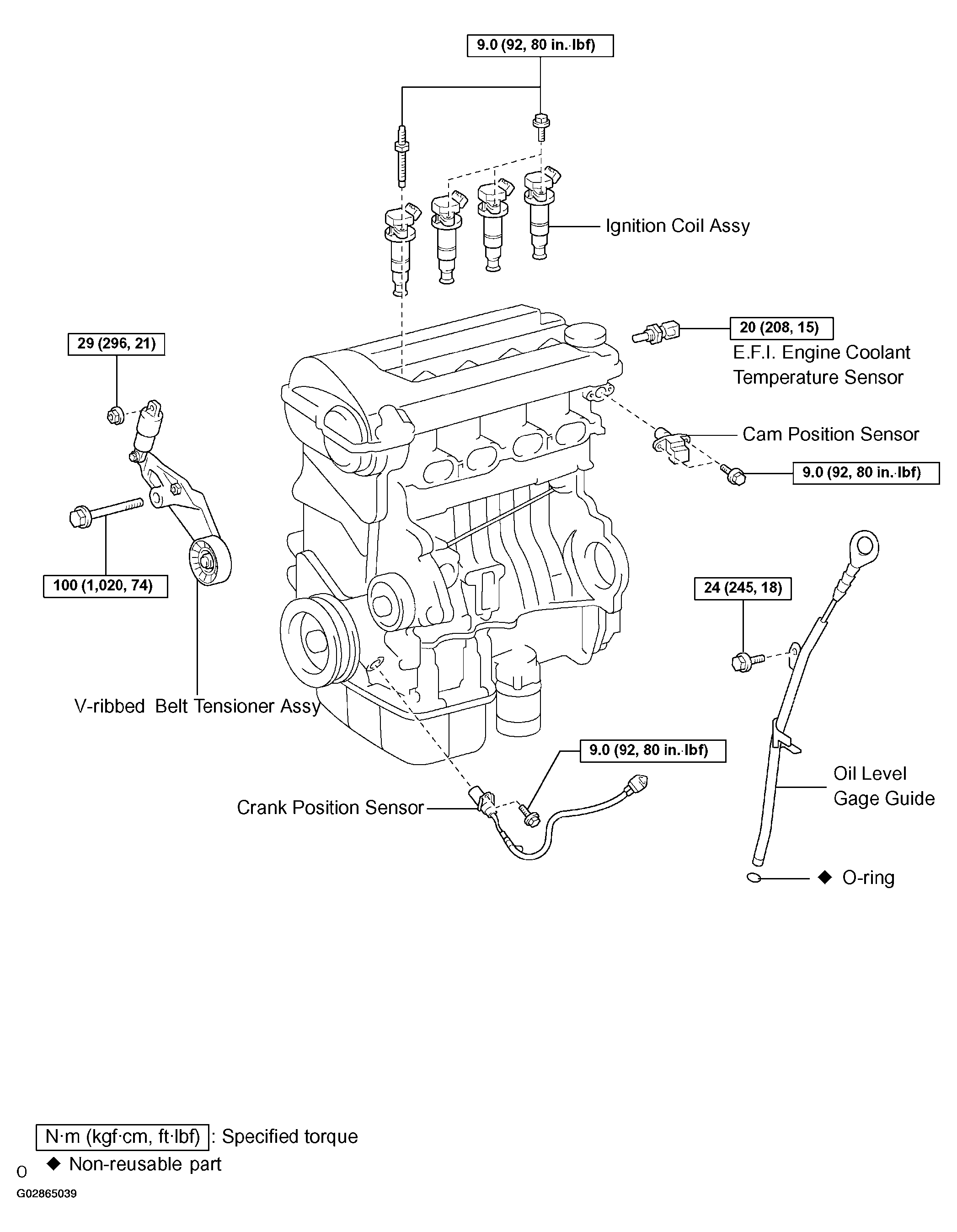

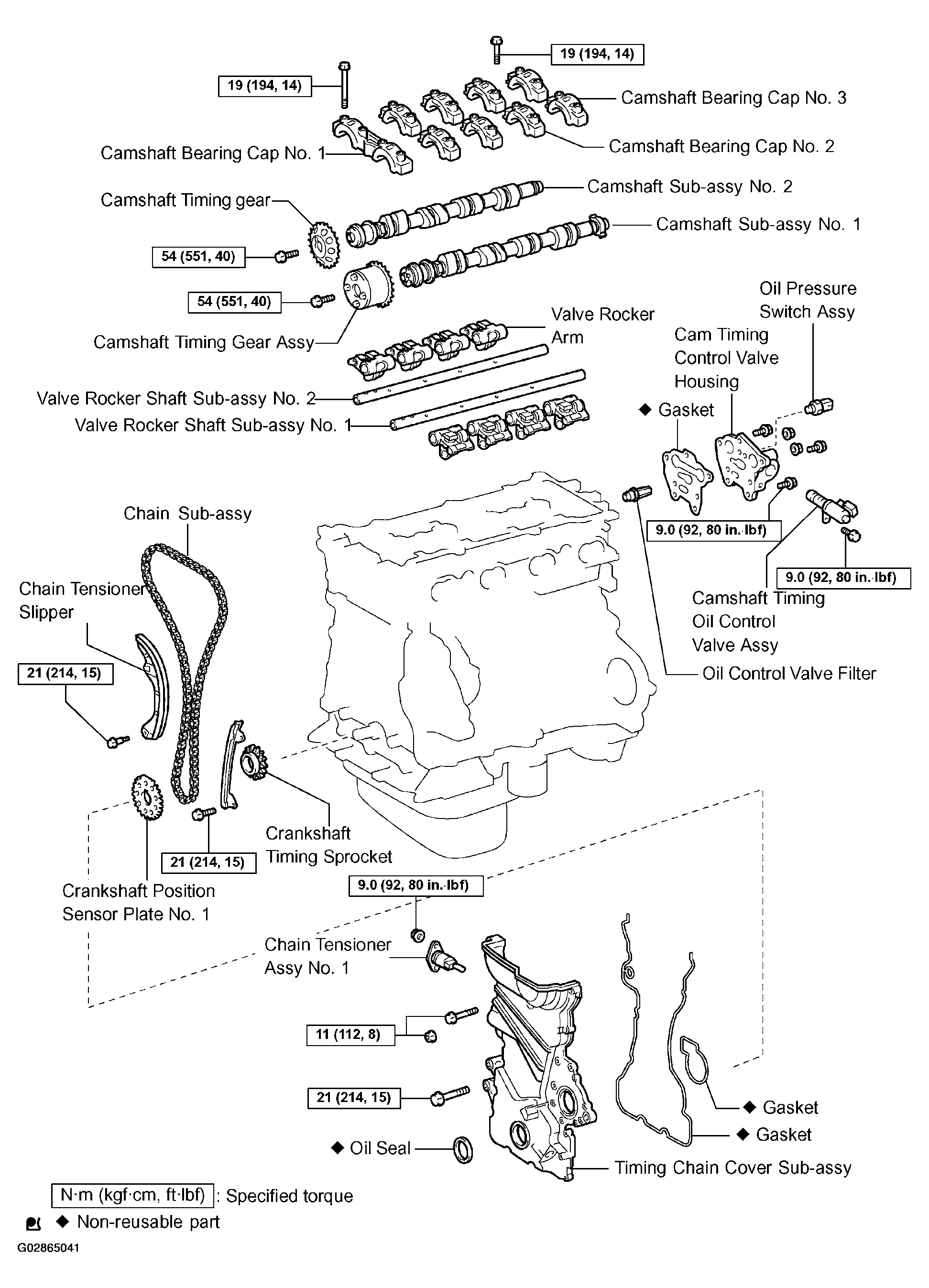

Fig 3: Identifying Partial Engine Components (3 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

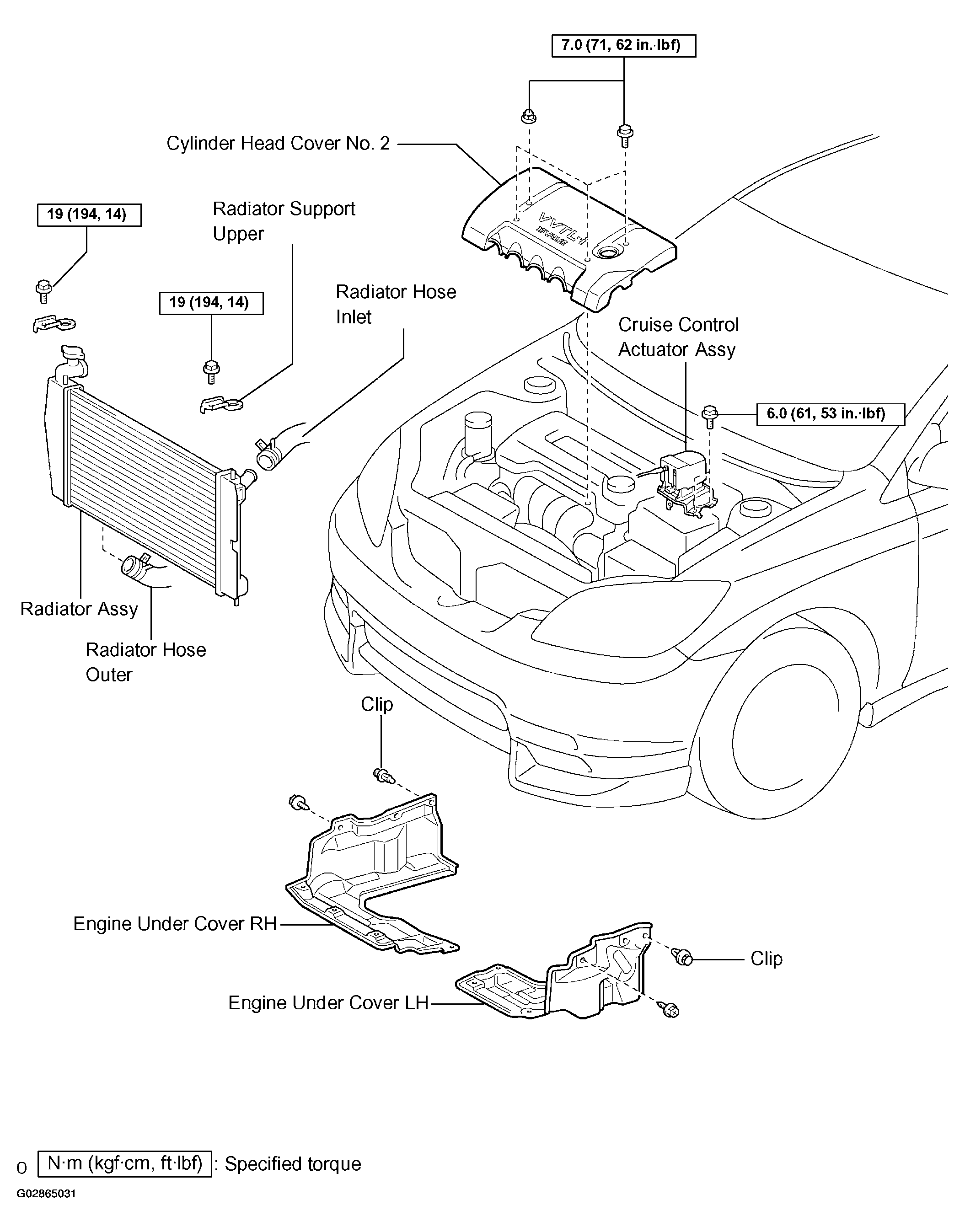

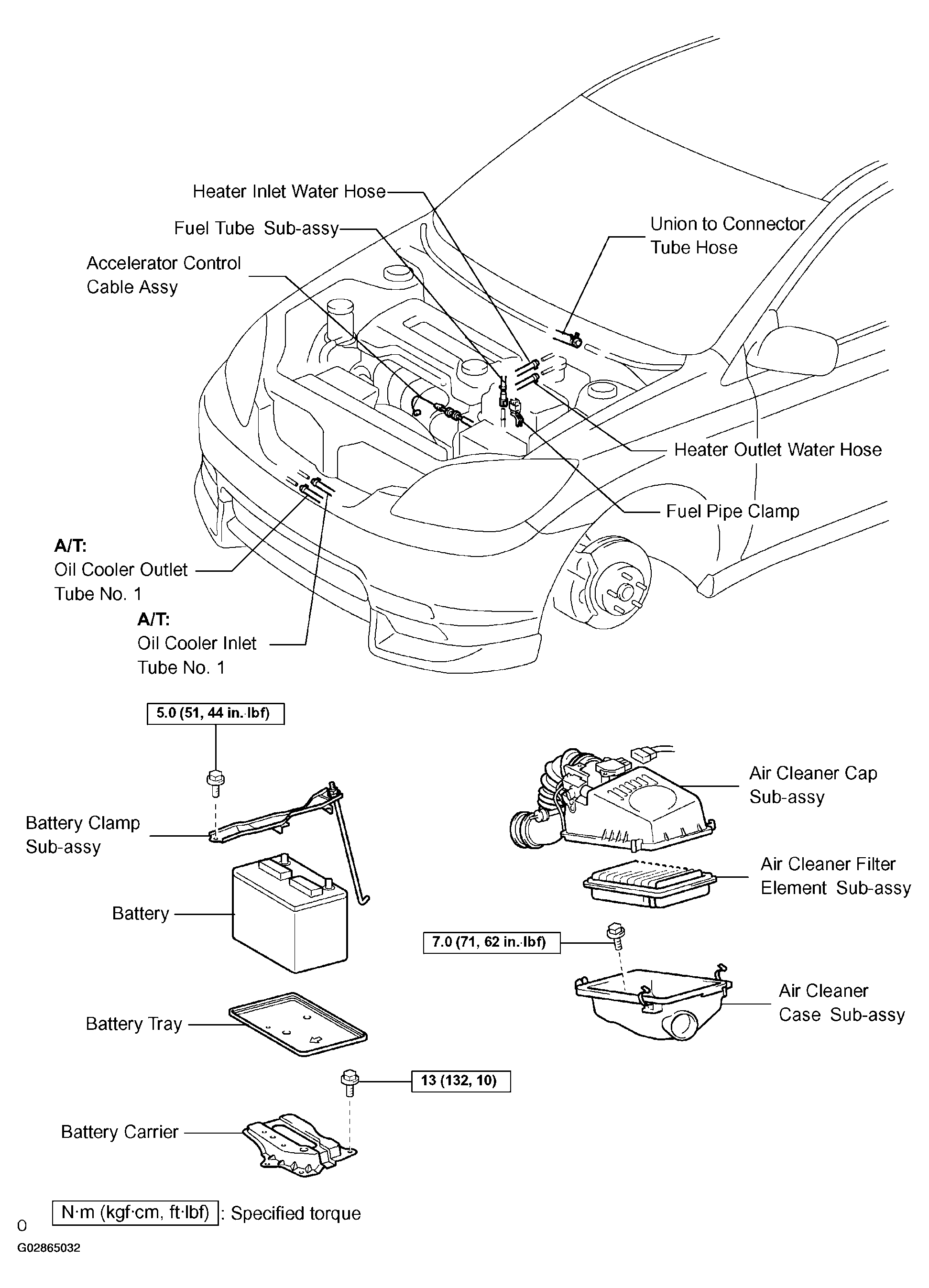

Fig 4: Identifying Partial Engine Components (4 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

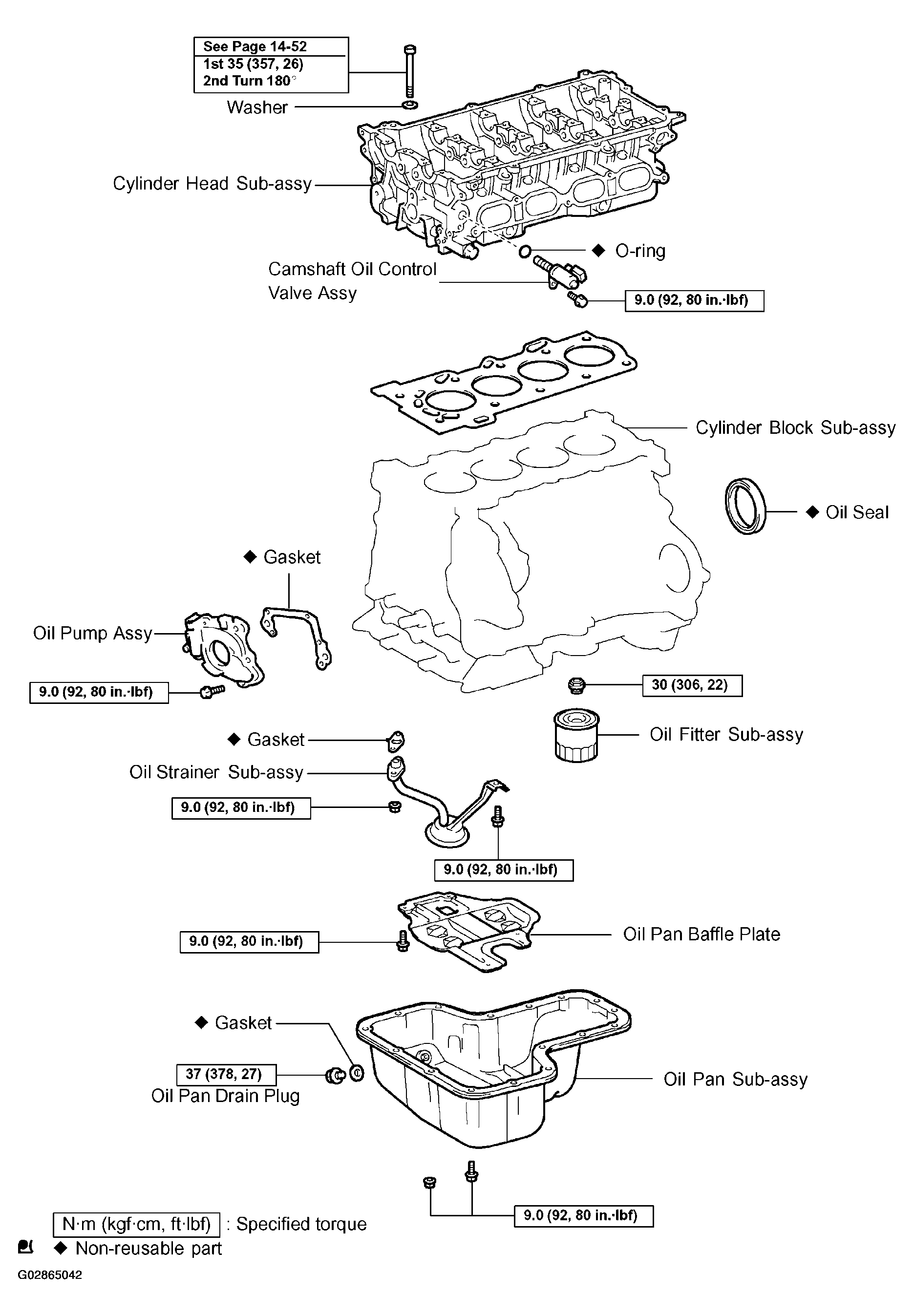

Fig 5: Identifying Partial Engine Components (5 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

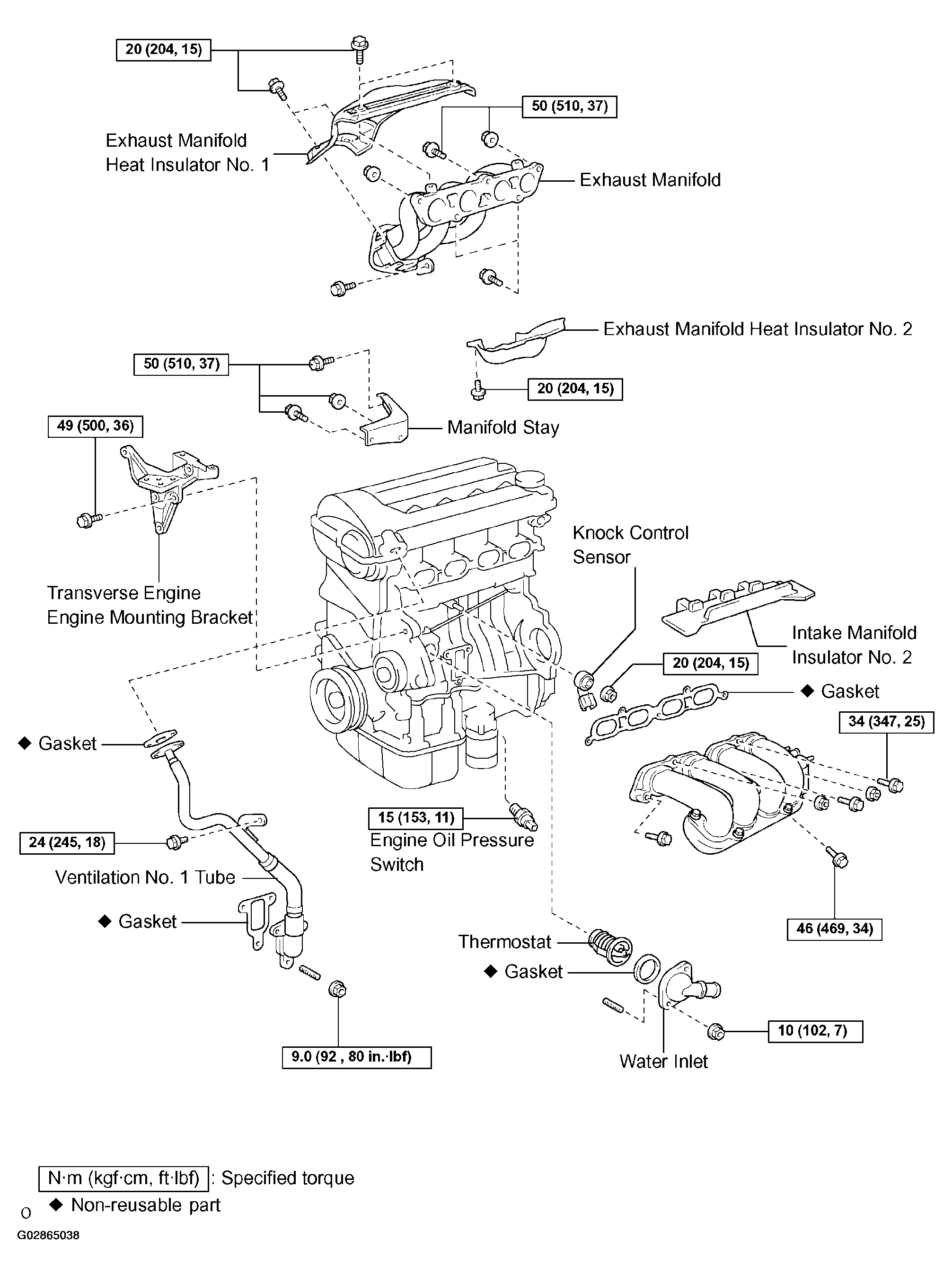

Fig 6: Identifying Partial Engine Components (6 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

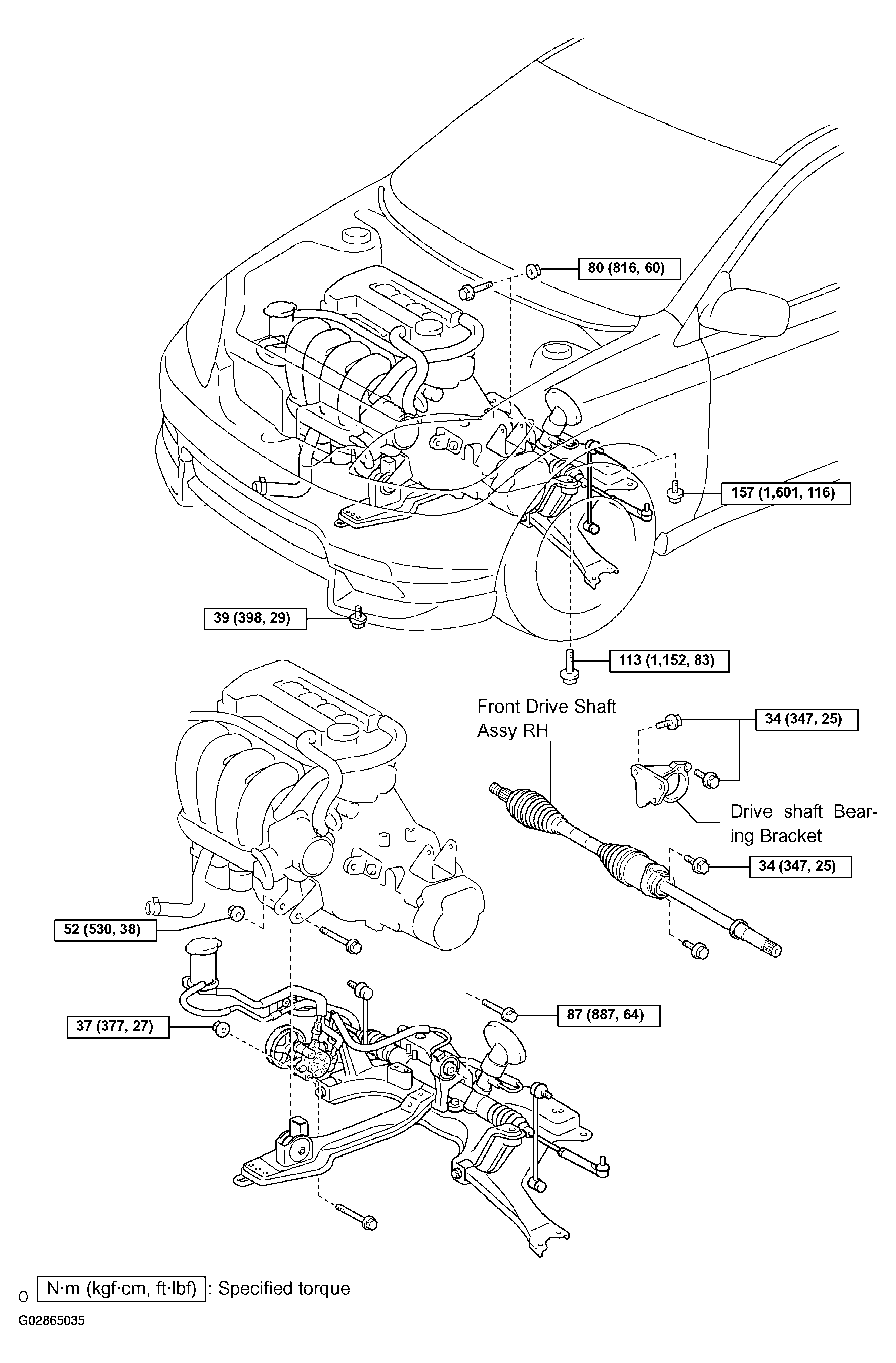

Fig 7: Identifying Partial Engine Components (7 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

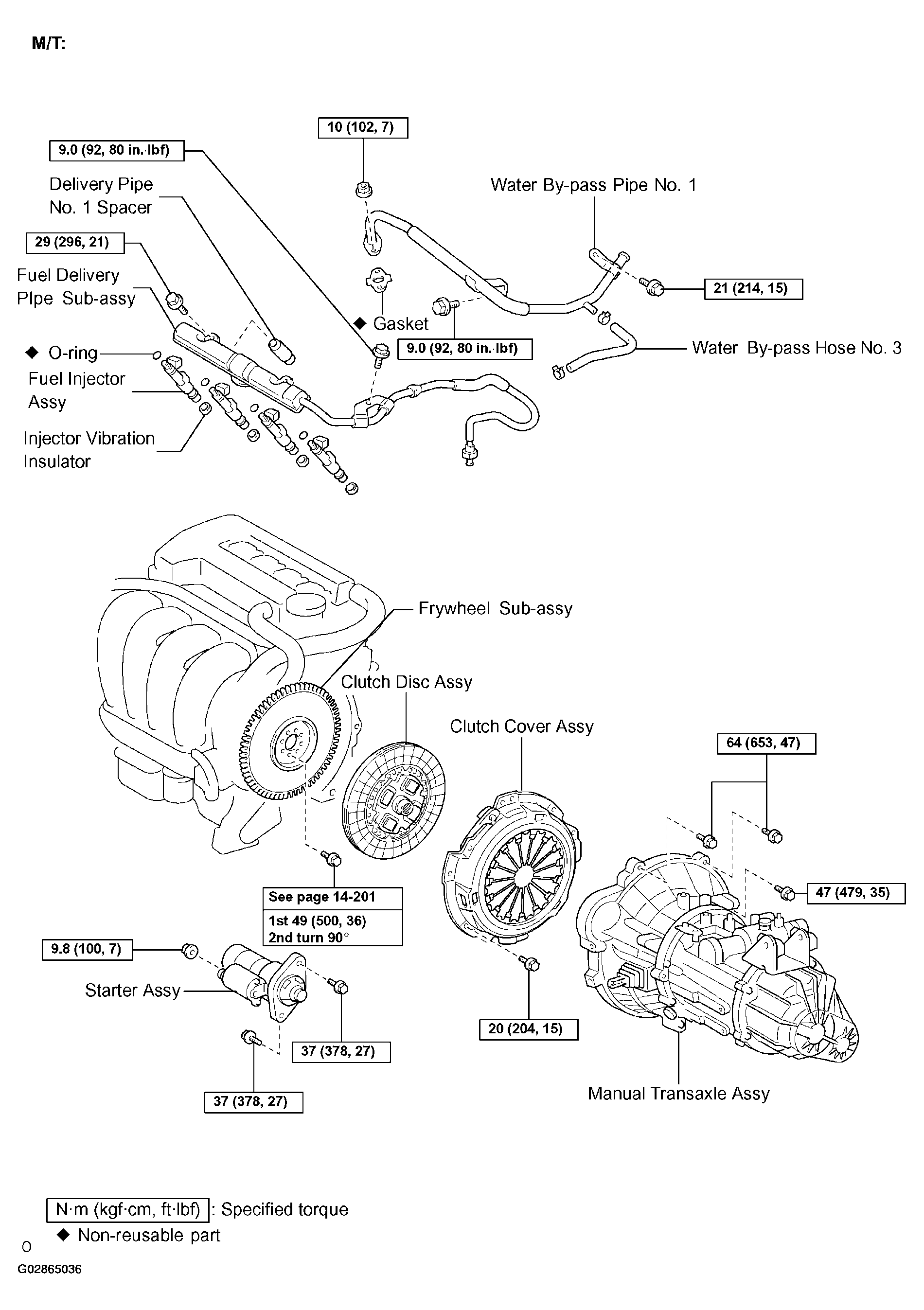

Fig 8: Identifying Partial Engine Components (8 Of 12)

Fig 9: Identifying Partial Engine Components (9 Of 12)

Fig 10: Identifying Partial Engine Components (10 Of 12)

Fig 11: Identifying Partial Engine Components (11 Of 12)

Fig 12: Identifying Partial Engine Components (12 Of 12)
