Section 15 (Propeller W/Center Bearing Shaft Assembly (4WD)): Components

WARNING: This page is about a different variant/trim than selected.

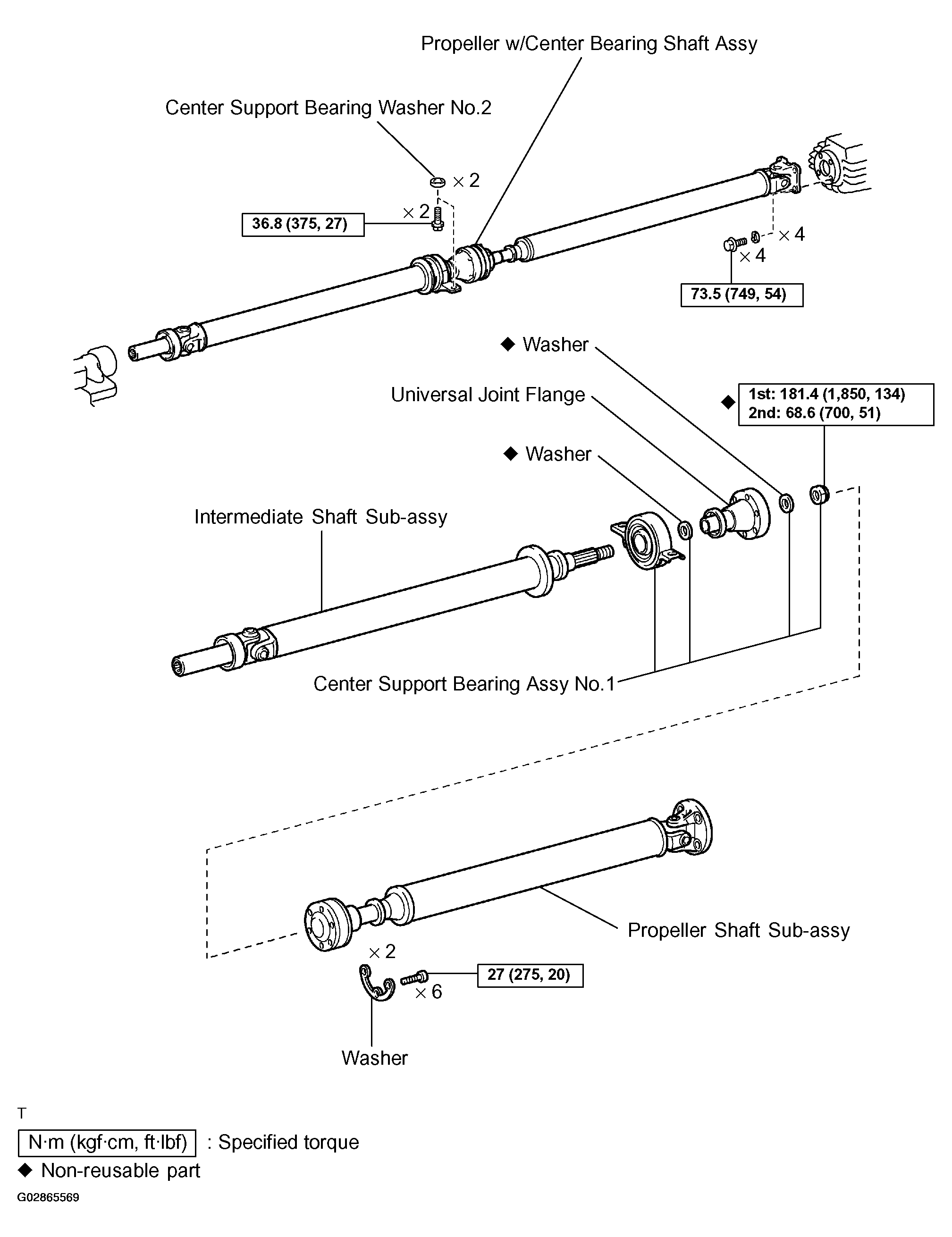

Fig 1: Identifying Propeller W/Center Bearing Shaft Assy (4WD) Components
G02865569Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
