Front Suspension System: Repair

NOTE: This is a flow chart for vehicle pull.

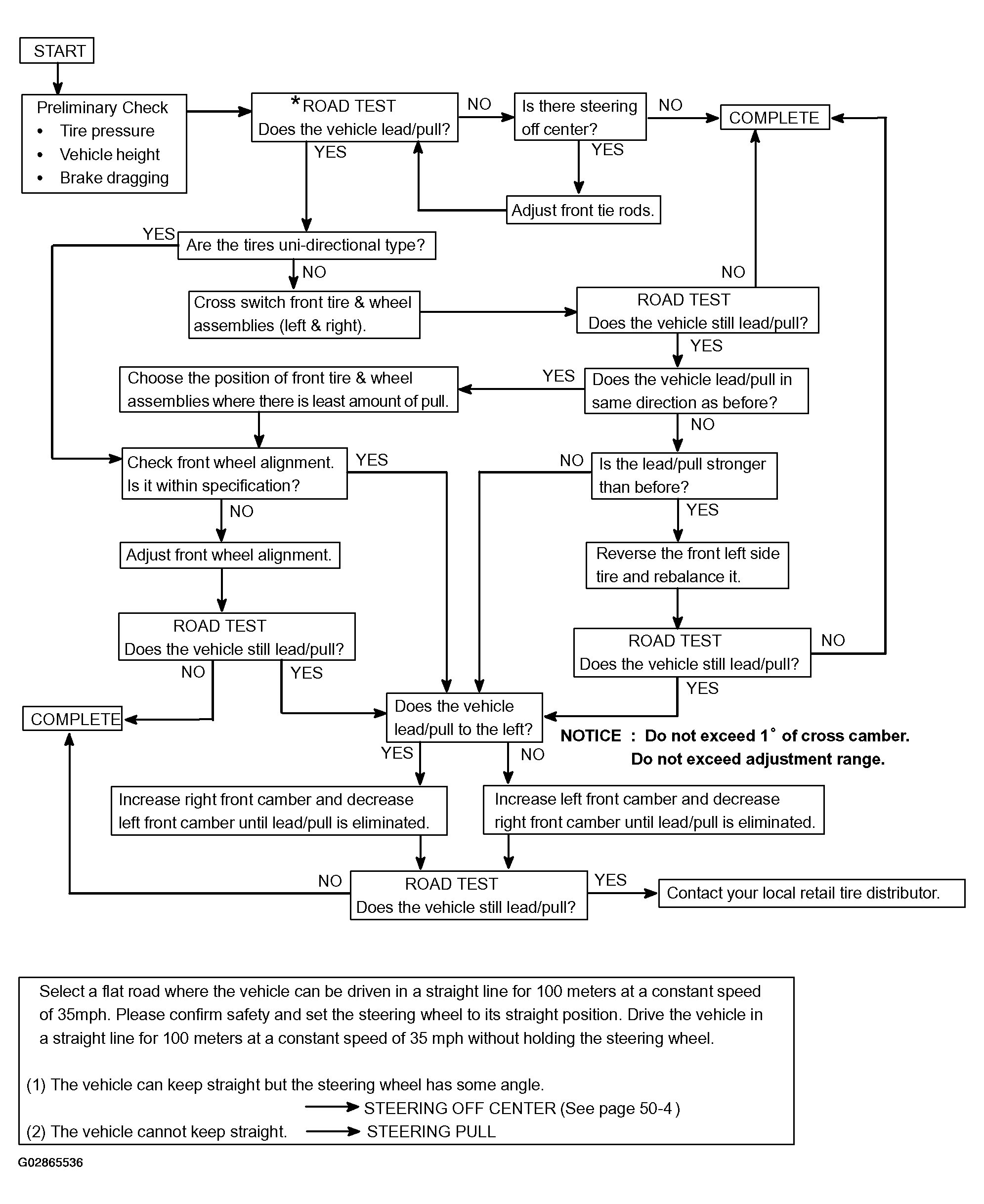

Fig 1: Front Suspension System Vehicle Pull Flow Chart
G02865536Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
