| Drain Plug |
13 (17.5) |
| Lug Nuts |
76 (103) |
| INCH Lbs. (N.m) |
| Air Cleaner Assembly Bolts |
62 (7) |
| Battery Carrier Bolts |
115 (13) |
| Manual Detent Spring Bolt |
88 (10) |
| Oil Pan Bolts |
47 (5.3) |
| Oil Strainer Retaining |
| Bolts "A"-0.47" (12 mm) |
88 (10) |
| Bolt "B"-0.79" (20 mm) |
88 (10) |
| Park Neutral Position Switch |
| 2 Retaining Bolts |
49 (5.5) |
| Control Cable Nut |
111 (12.5) |
| Control Shift Lever Nut |
111 (12.5) |
| Lock Plate Nut |
49 (5.5) |

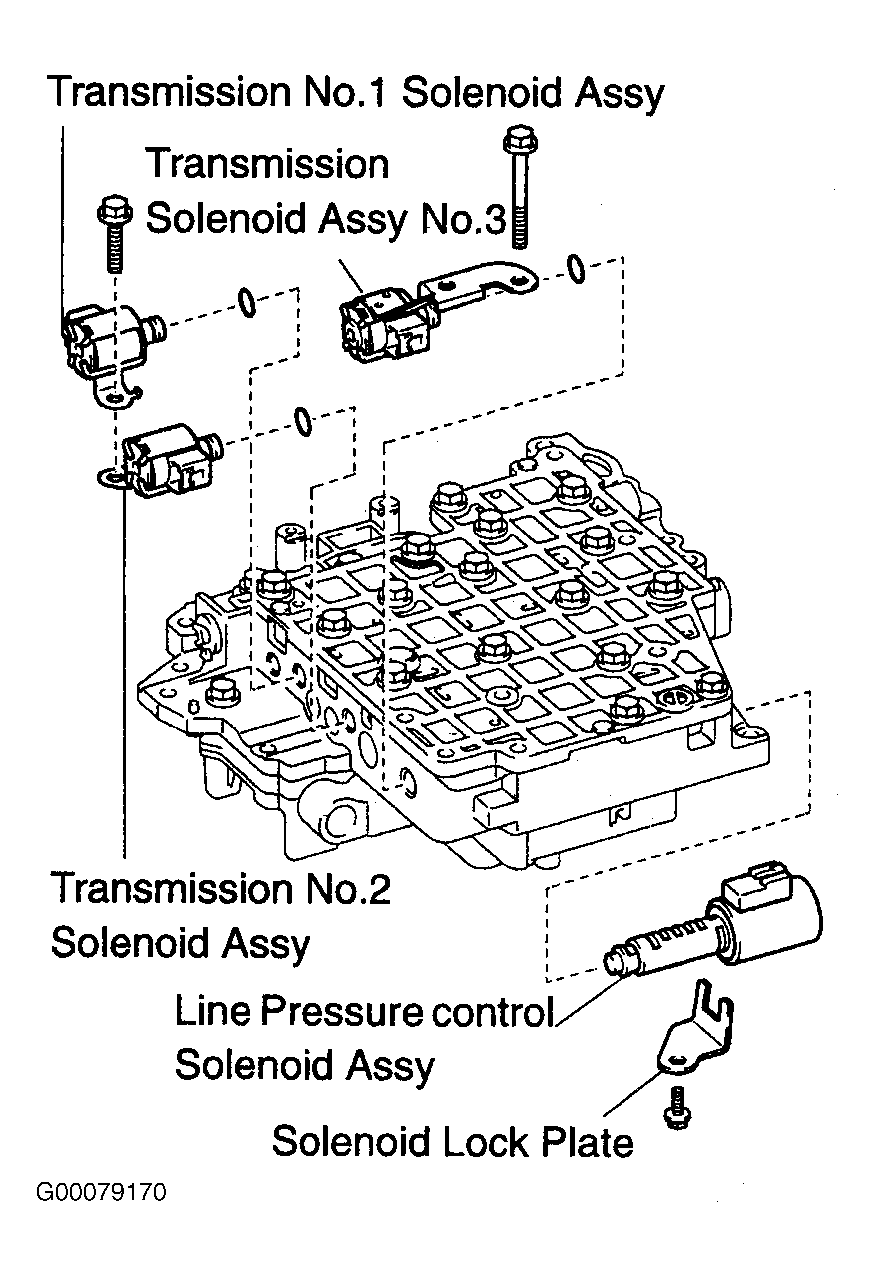

| Shift Solenoid Bolts |
| Bolt "A" - Assembly No. 1 (S1) and 2 (S2) - 0.98 in. (25 mm) |
97 (11) |
| Bolt "B" - Assembly No. 3 (SL) - 2.36 in. (60 mm) |
97 (11) |
| Bolt "C" - Lock Plate (SLT) - 0.47 in. (12 mm) |
58 (6.5) |
| Transmission Wire Connector Bolt |
48 (5.4) |

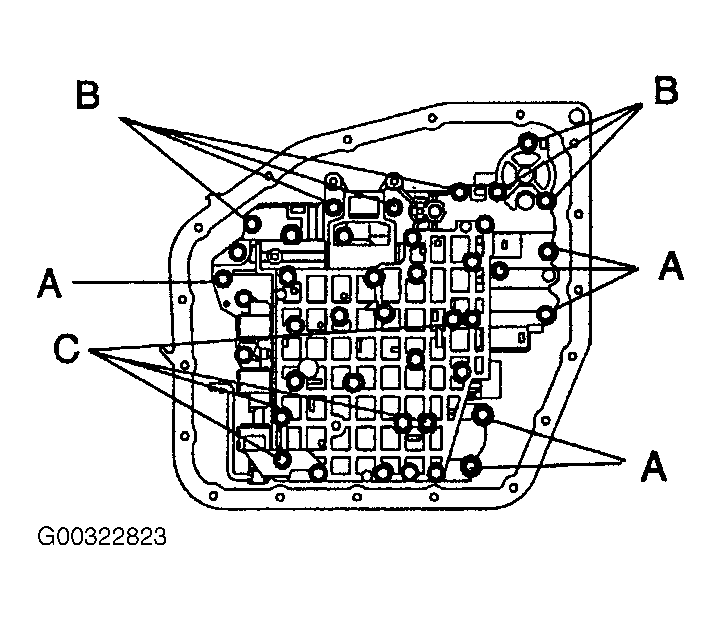

| Valve Body |
| Bolts "A"- 0.79 in. (20 mm) |
88 (10) |
| Bolts "B"- 1.10 in. (28 mm) |
88 (10) |
| Bolts "C"- 1.97 in. (50 mm) |
88 (10) |
| Vehicle Speed Sensor Bolt |
100 (11.3) |
