Confirmation Engine Racing Pattern

WARNING: This page is about a different car, the 2003 Toyota Camry Solara. However, it is still accessible from the selected car via links, so may be relevant.

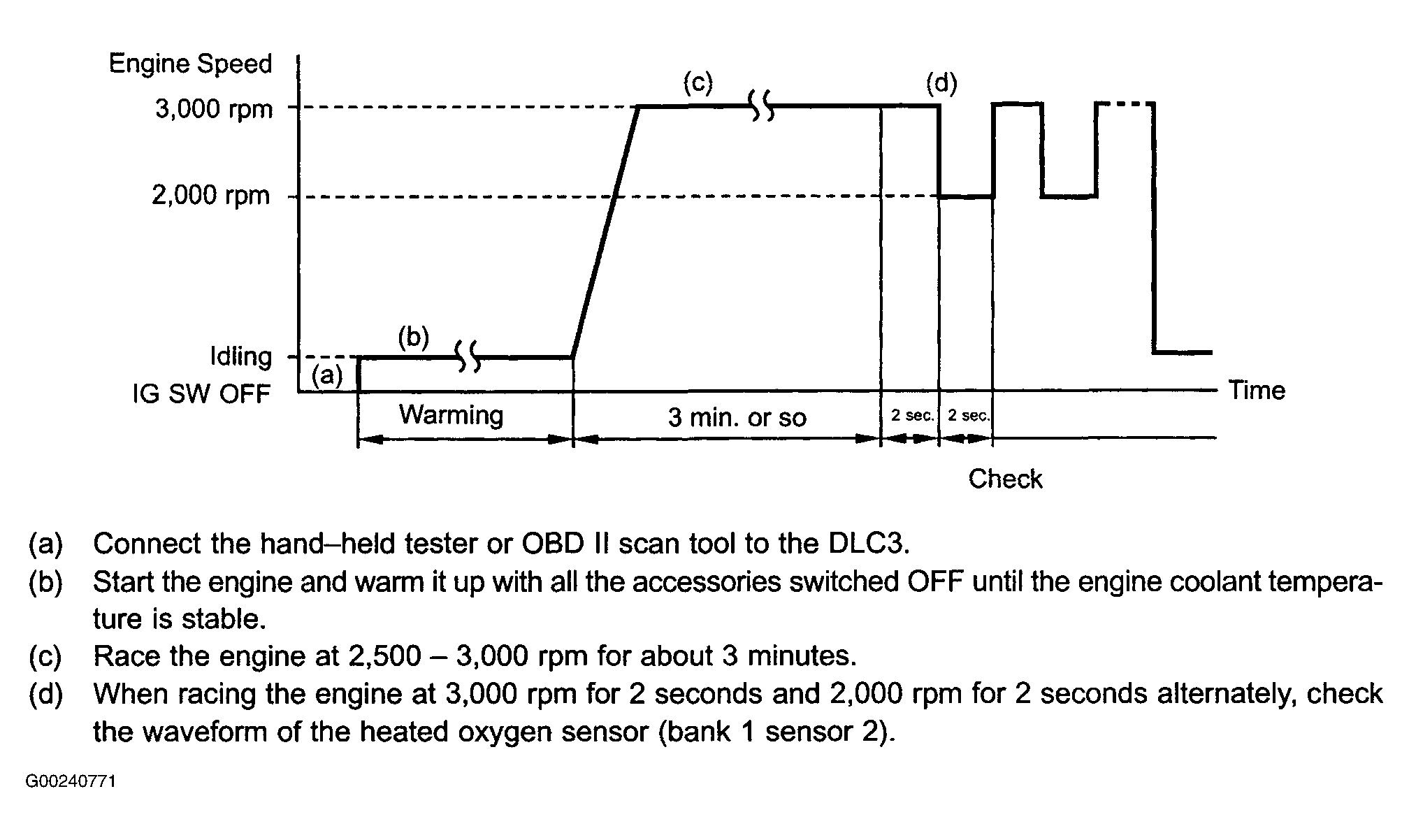

For confirmation engine racing pattern, see Fig 1.

Fig 1: DTC P0420 Confirmation Engine Racing Pattern
G00240771Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
