Diagnostic Tests: Notes

WARNING: This page is about a different car, the 2002 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Before performing any diagnostic test, see SELF-DIAGNOSTIC SYSTEM for diagnostic system functions and system diagnostic procedures. Also check for any related Technical Service Bulletins (TSBs). For component location, see appropriate illustration in THEORY & OPERATION article. When performing diagnostic tests, it may be necessary to identify Engine Control Module (ECM) connector terminals which are referenced to in testing procedure. See Fig 1.

NOTE: For information on engine immobilizer system, see COMPUTERIZED ENGINE CONTROLS in THEORY & OPERATION article.

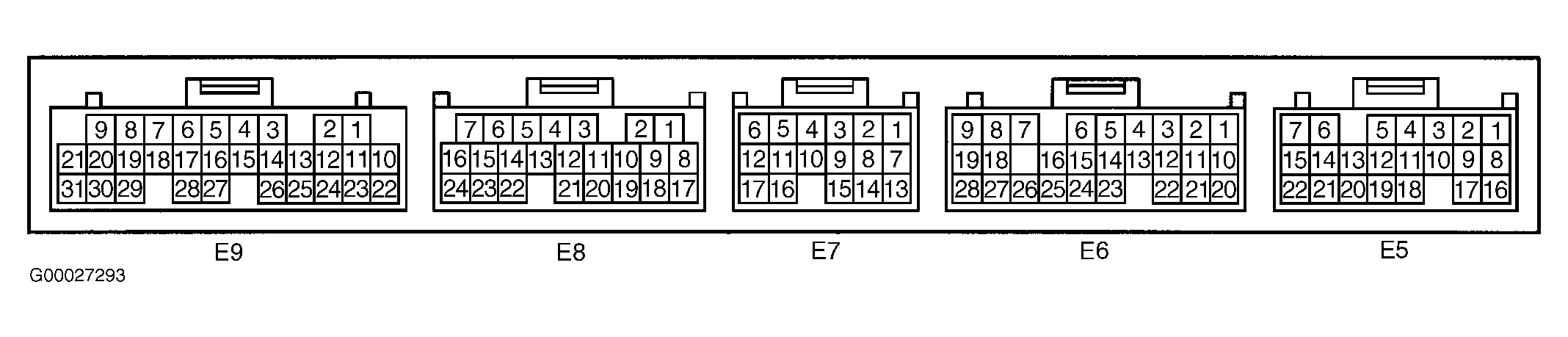

Fig 1: Identifying Engine Control Module Terminals (Component Side)
