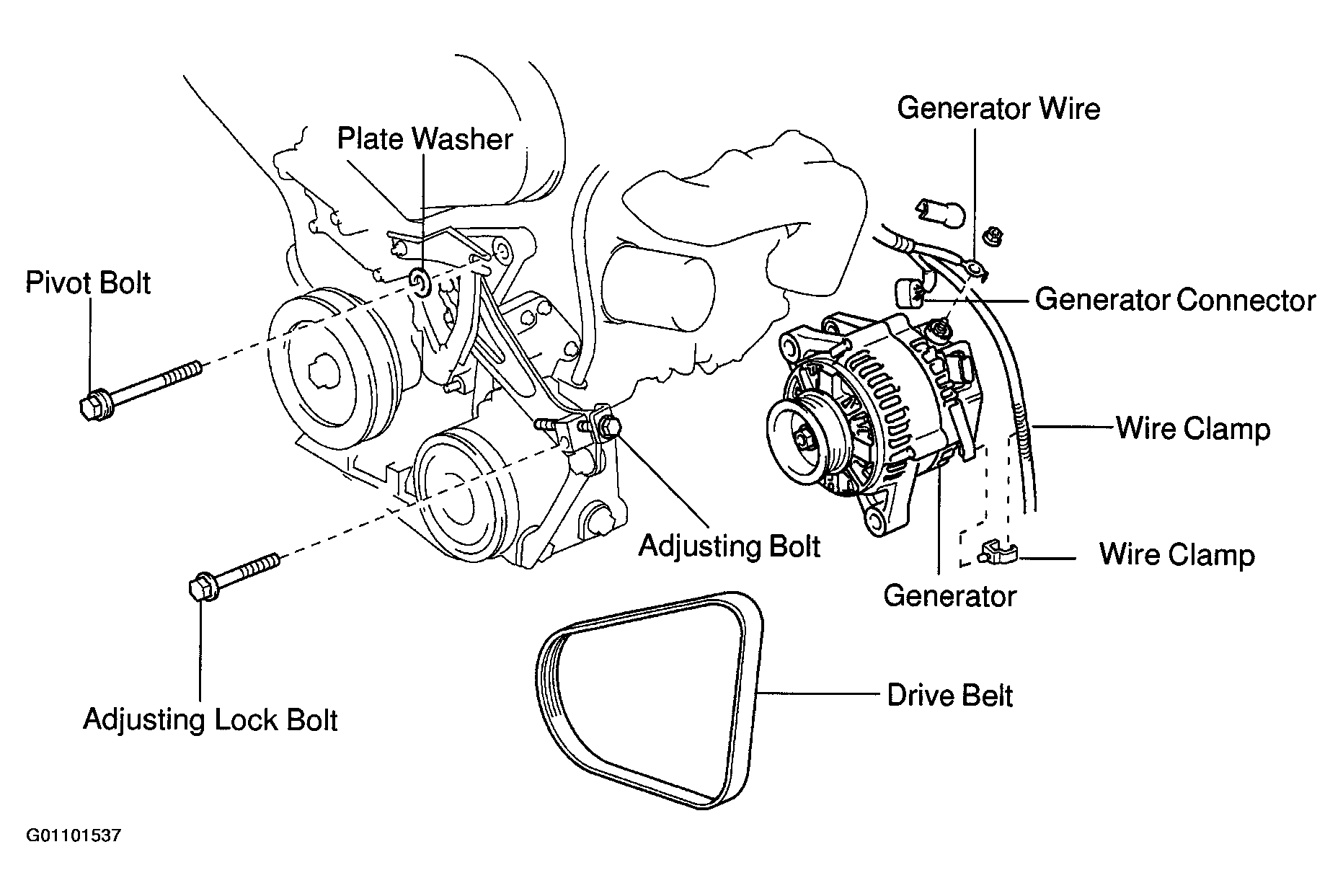

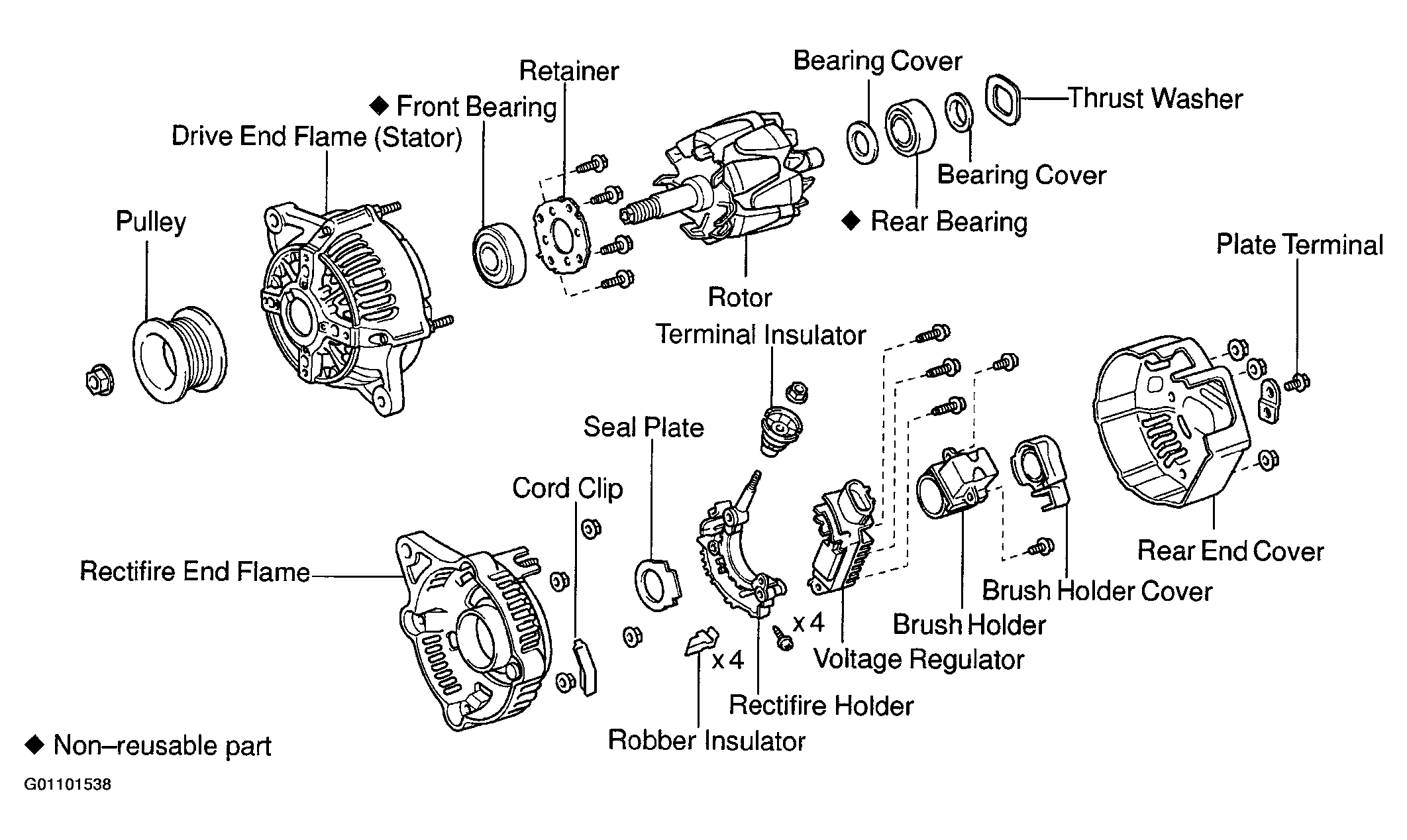

Section 252 (Charging System - Generators & Regulators): Generator: Components

WARNING: This page is about a different car, the 2002 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.
