Section 252 (Charging System - Generators & Regulators): Generator: Replacement

WARNING: This page is about a different car, the 2002 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.

Replace Front Bearing
1. Remove the 4 screws and bearing retainer.

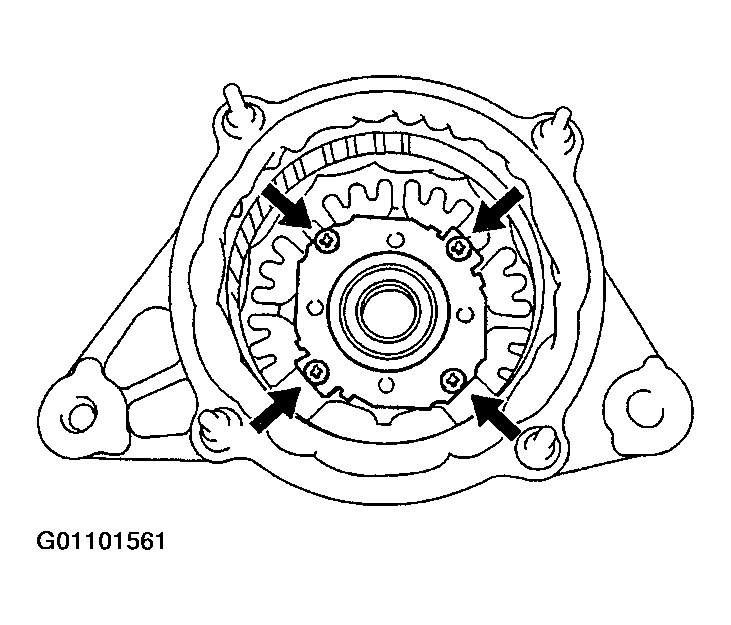

  Fig 1: Locating Bearing Retainer Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using a socket wrench and press, press out the bearing.

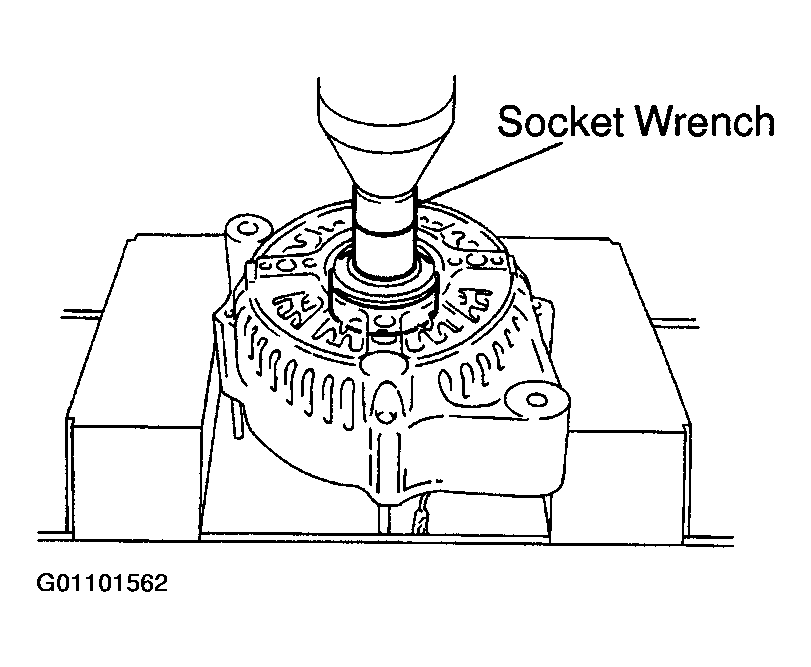

  Fig 2: Using A Socket Wrench To Press Out Bearing
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Using SST and a press, press in a new bearing. SST 09950-60010 (09951-00520)

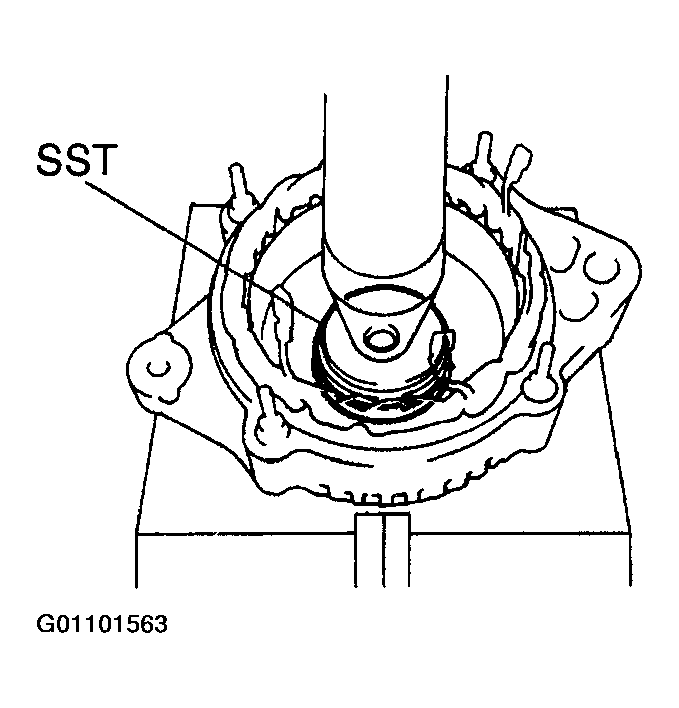

  Fig 3: Using SST To Press In New Bearing
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Install the bearing retainer with the 4 screws.
  Torque: 3.0 N.m (31 kgf.cm, 27 in.lbf)
Replace Rear Bearing
1. Using SST, remove the bearing cover (outside) and bearing. SST 09820-00021

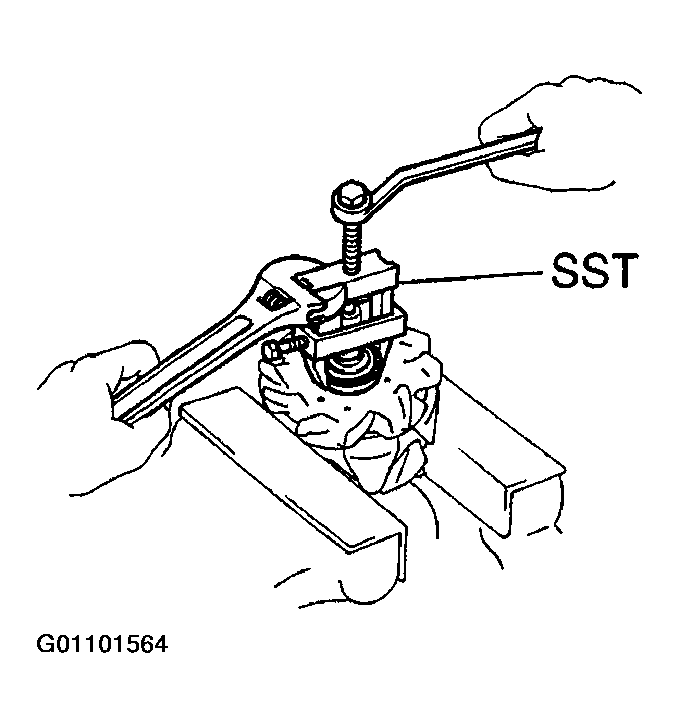

  Fig 4: Using SST To Remove Bearing
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NOTE: Be careful not to damage the fan.
2. Remove the bearing cover (inside).
3. Place the bearing cover (inside) on the rotor.

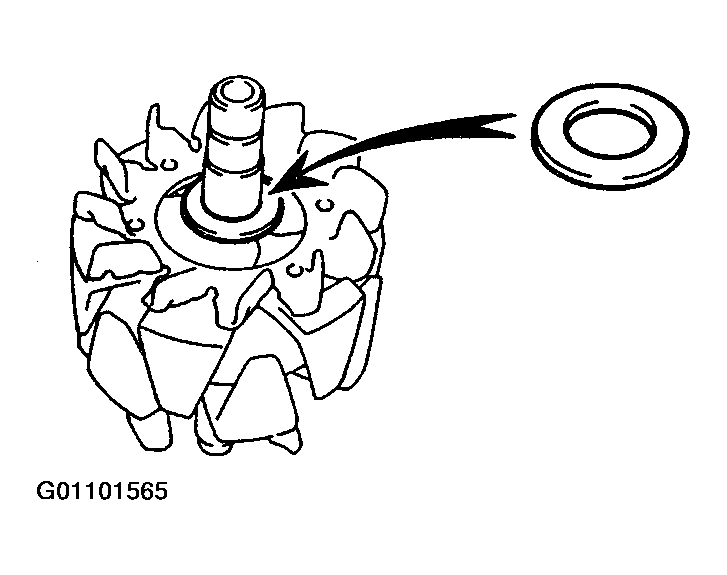

  Fig 5: Placing Bearing Cover (Inside) On Rotor
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Using SST and a press, press in a new bearing. SST 09820-00031

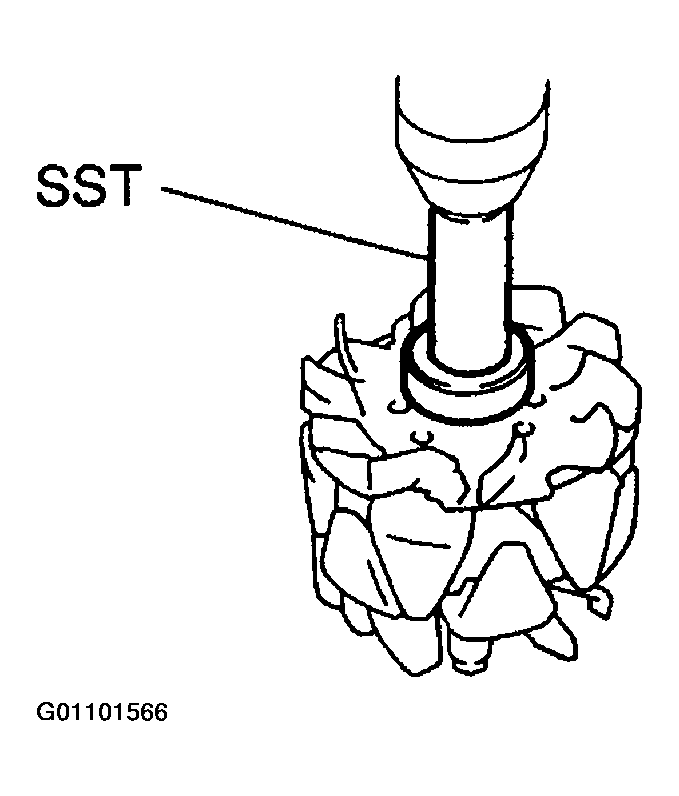

  Fig 6: Using SST To Press In New Bearing
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Using SST, push in the bearing cover (outside). SST 09285-76010

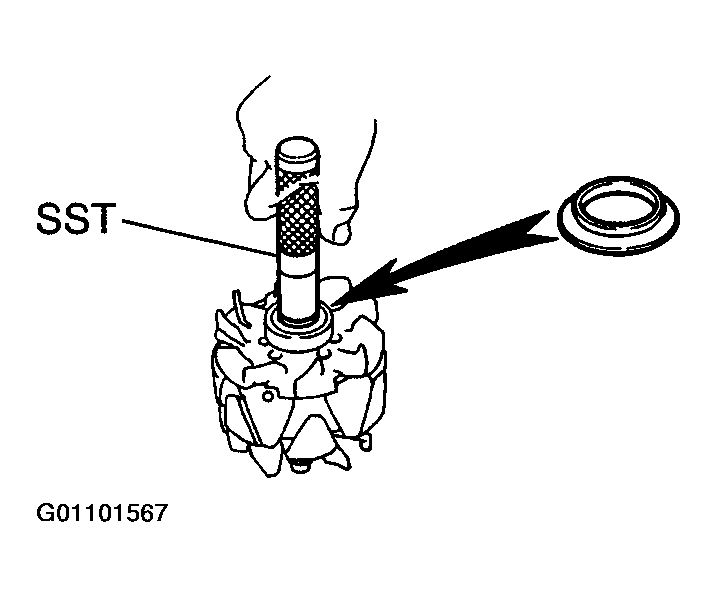

  Fig 7: Using SST To Push In Bearing Cover (Outside)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
