Door Unlock Detection Switch Circuit: Wiring Diagram

WARNING: This page is about a different car, the 2002 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.

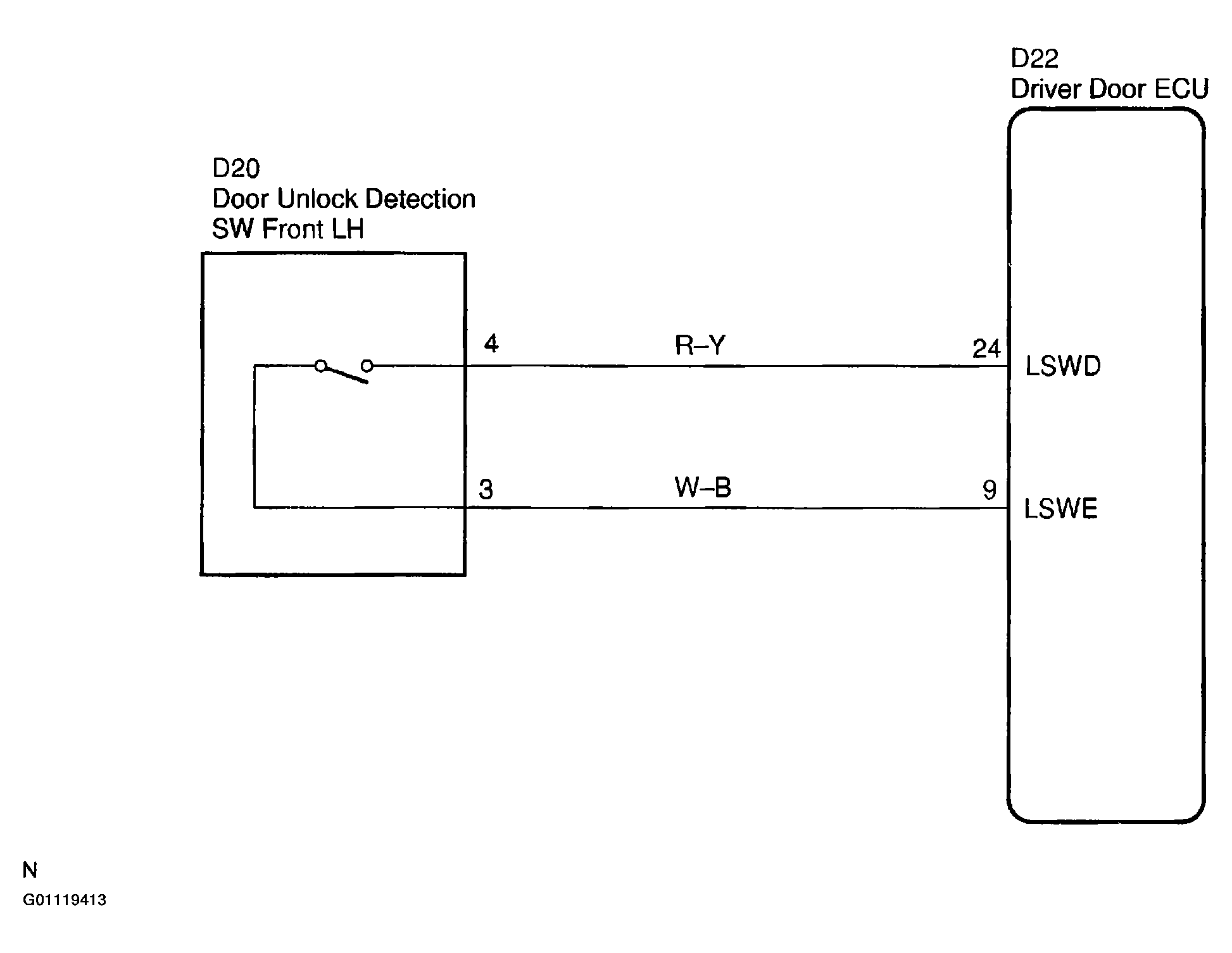

Fig 1: Door Unlock Detection Switch Circuit Wiring Diagram
G01119413Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
