Inspection Procedure

WARNING: This page is about a different car, the 2002 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.

Check the power window master switch using TOYOTA hand-held tester.
Preparation : Connect the TOYOTA hand-held tester to the DLC3.

Check : the power window master switch using DATA LIST.

OK , see Fig 1 and Fig 2 .

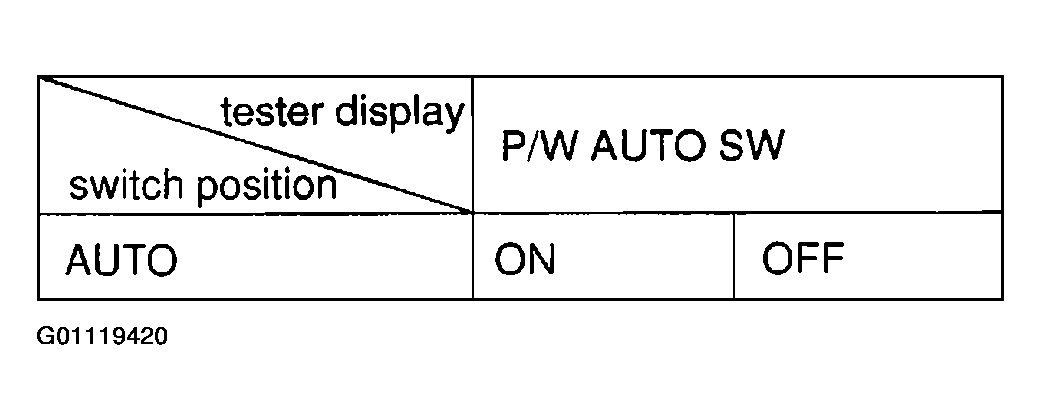

Fig 1: Displaying Expected Results Of Switch Position Tests (Driver Side)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

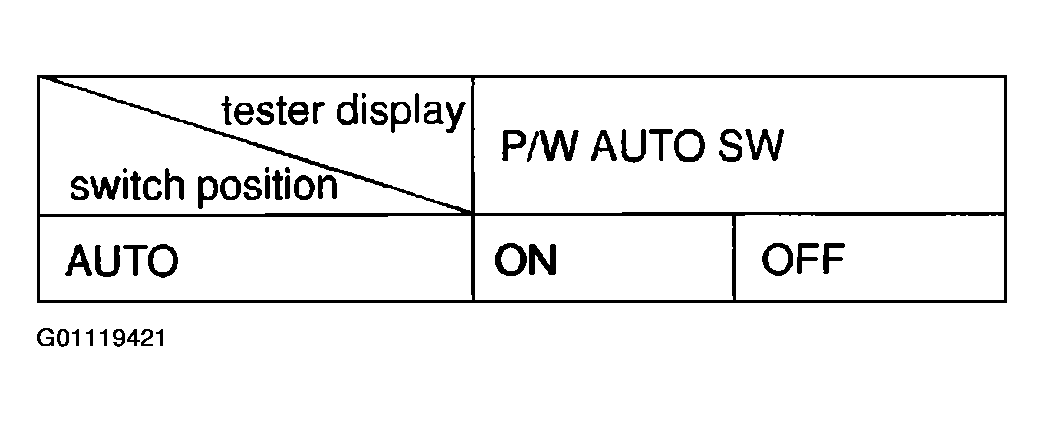

Fig 2: Displaying Expected Results Of Switch Position Tests (Passenger Side)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. OK : Proceed to next circuit inspection shown on problem symptoms table. See PROBLEM SYMPTOMS TABLES .
2. NG : replace the driver door ECU.
