Circuit Description

WARNING: This page is about a different car, the 2002 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.

These DTCs are output when a malfunction of pulse switch within power window motor is detected.

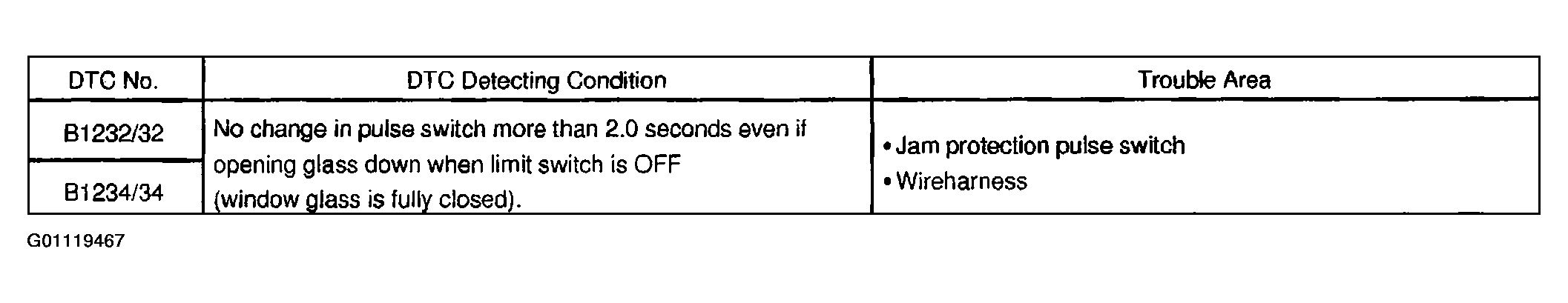

Fig 1: DTC Detected Condition & Trouble Area
G01119467Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
NOTE: Please refer to WINDOWS article for switch inspection, and to each door system DRIVER DOOR CONTROL SYSTEM - DIAGNOSTICS article for wire harness inspection.
