Circuit Description

WARNING: This page is about a different car, the 2002 Toyota Prius. However, it is still accessible from the selected car via links, so may be relevant.

This DTC is output when communication stops between driver door ECU and body ECU.

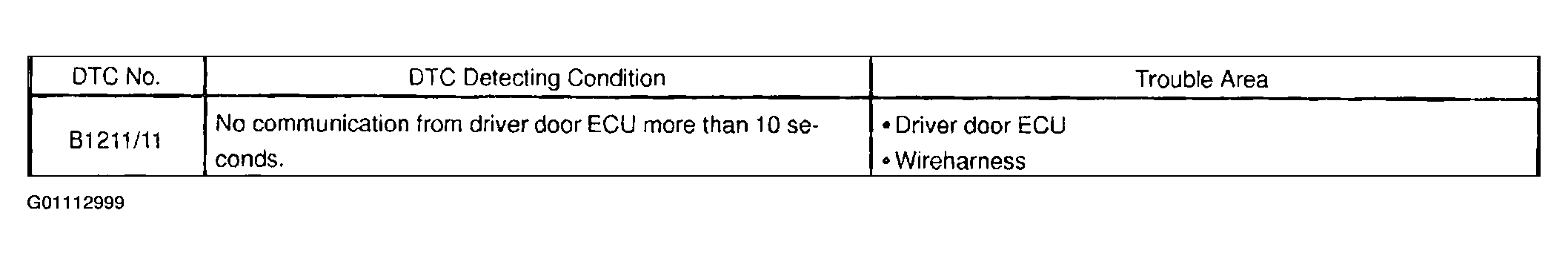

Fig 1: Identifying DTC, Detected Condition & Trouble Area
G01112999Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
