Problem Symptoms Table

WARNING: This page is about a different car, the 2003 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.

POWER WINDOW CONTROL SYSTEM

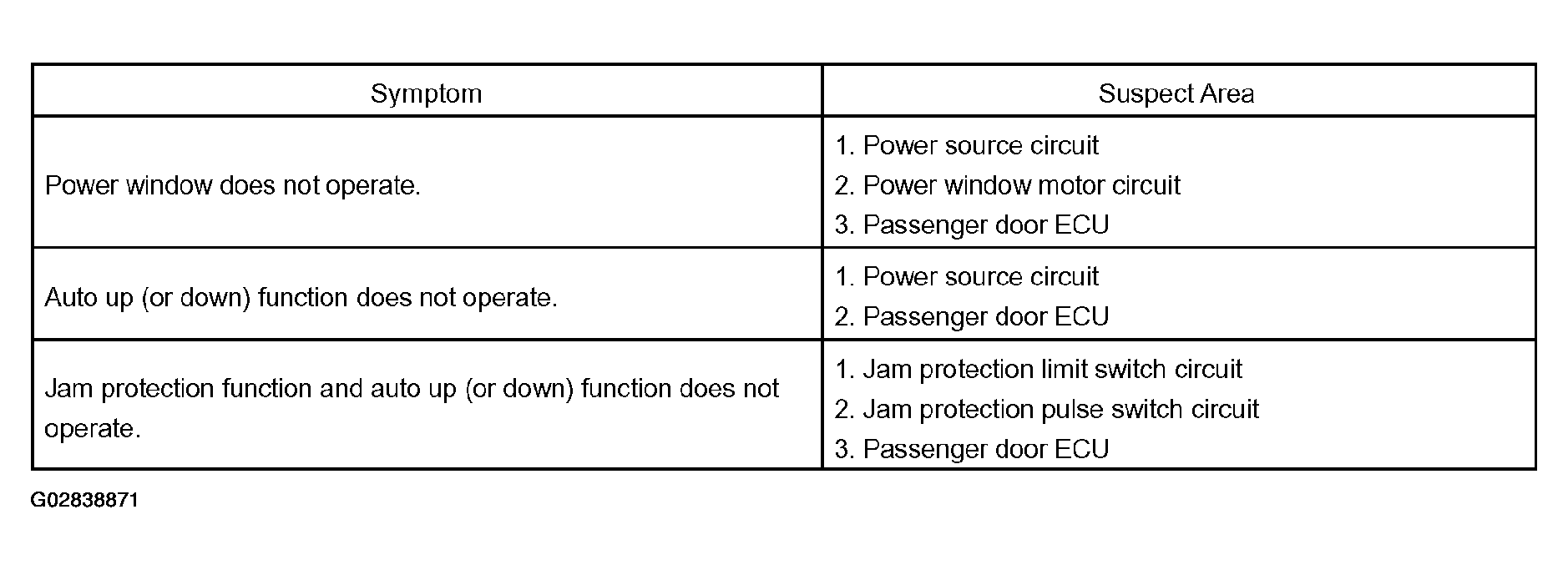

Fig 1: Power Window Control System Problem Symptoms Chart
G02838871Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

OTHERS

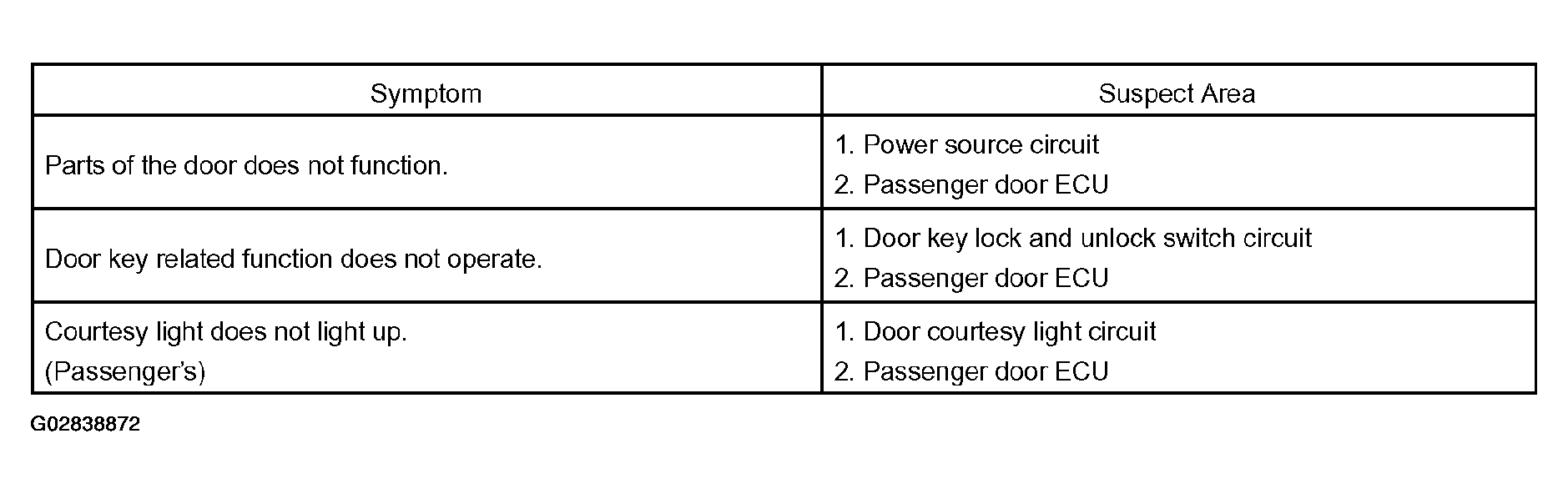

Fig 2: Others Problem Symptoms Chart
G02838872Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
