Exhaust Pipe And Catalytic Converter (1ZZ-FE): Components: Notes

WARNING: This page is about a different car, the 2004 Toyota Matrix. However, it is still accessible from the selected car via links, so may be relevant.

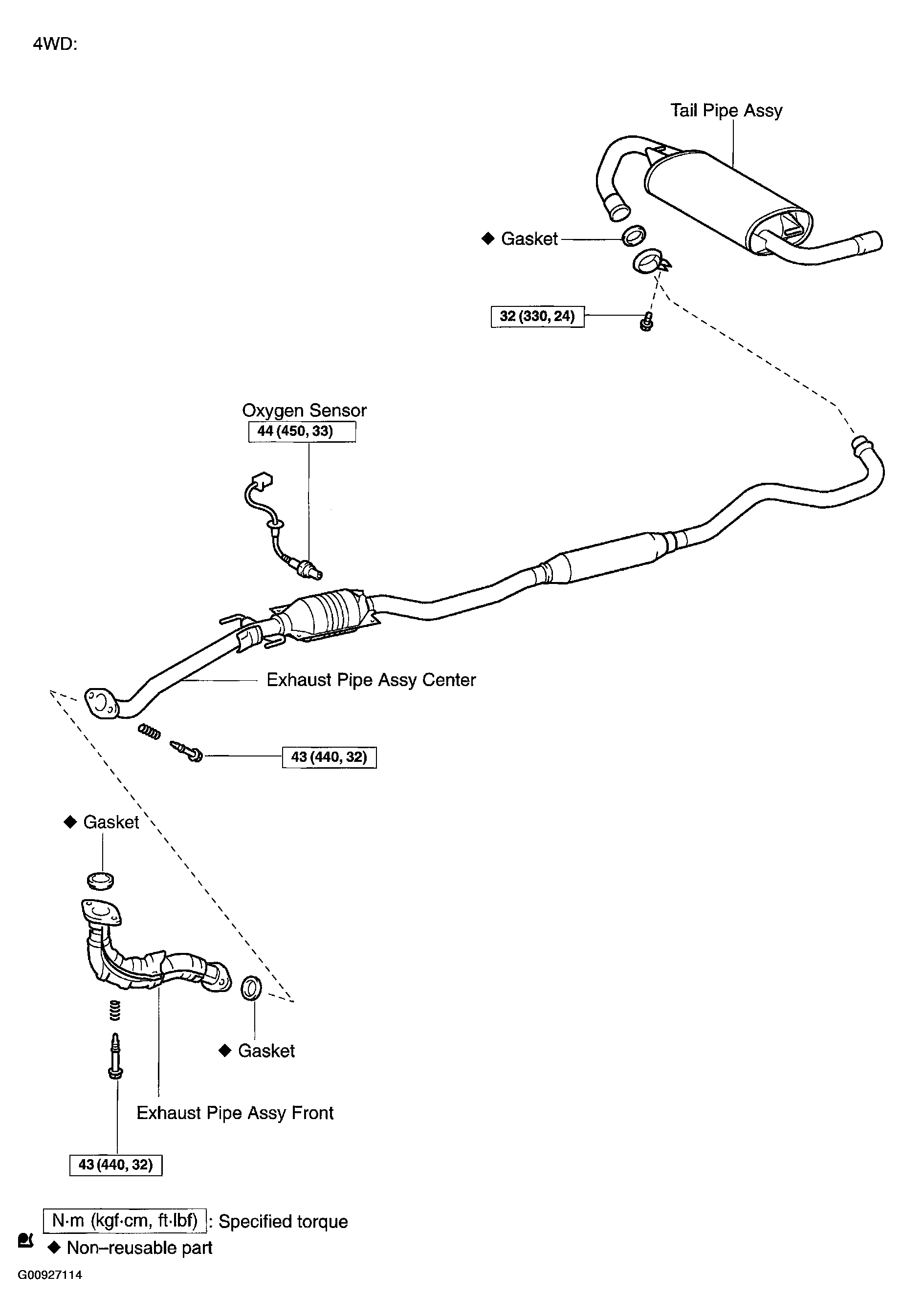

Fig 1: Identifying Exhaust Pipe Components (1ZZ-FE) (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

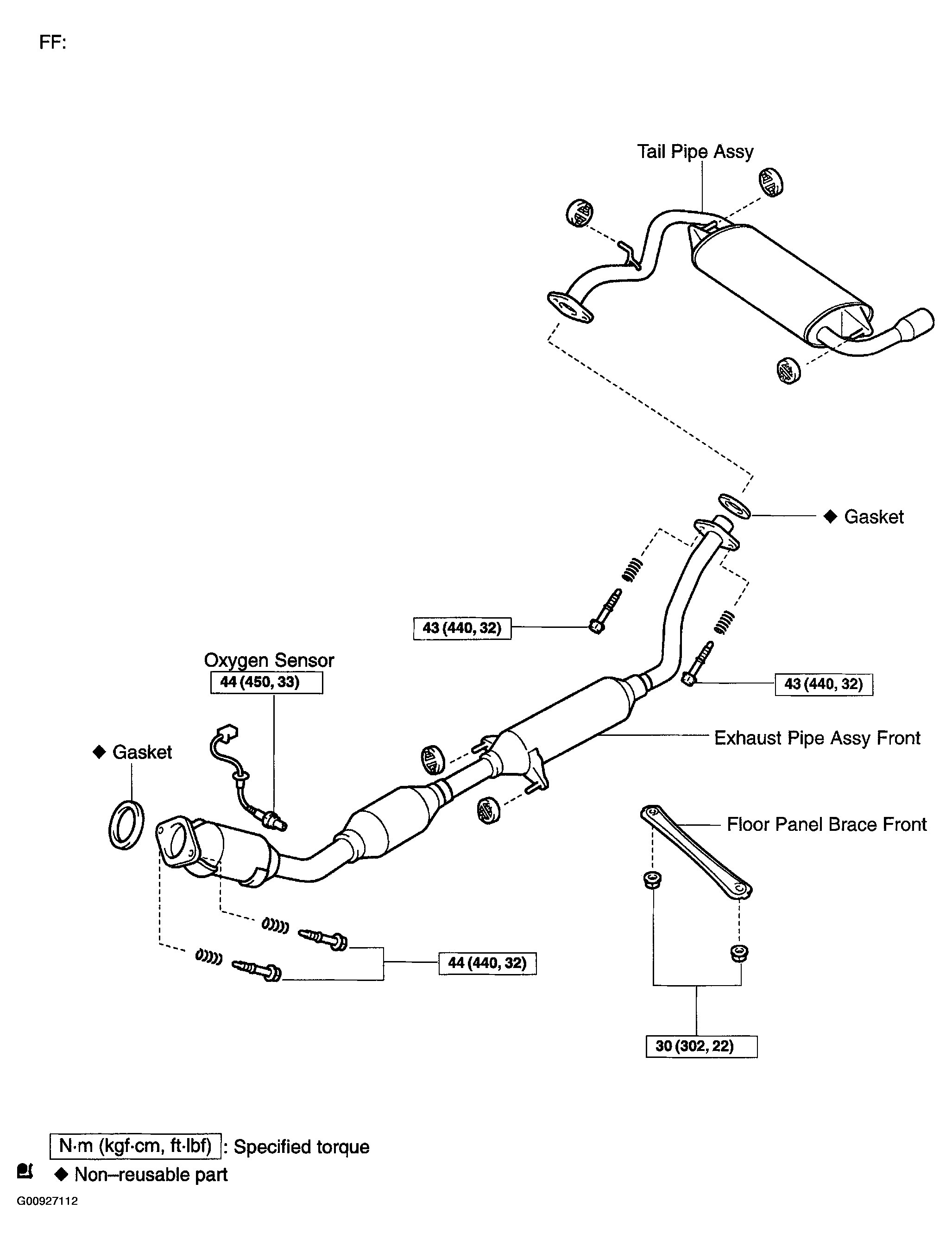

Fig 2: Identifying Exhaust Pipe Components (1ZZ-FE) (2 Of 3)

Fig 3: Identifying Exhaust Pipe Components (1ZZ-FE) (3 Of 3)
