Exhaust Pipe And Catalytic Converter (2ZZ-GE): Components: Notes

WARNING: This page is about a different car, the 2004 Toyota Matrix. However, it is still accessible from the selected car via links, so may be relevant.

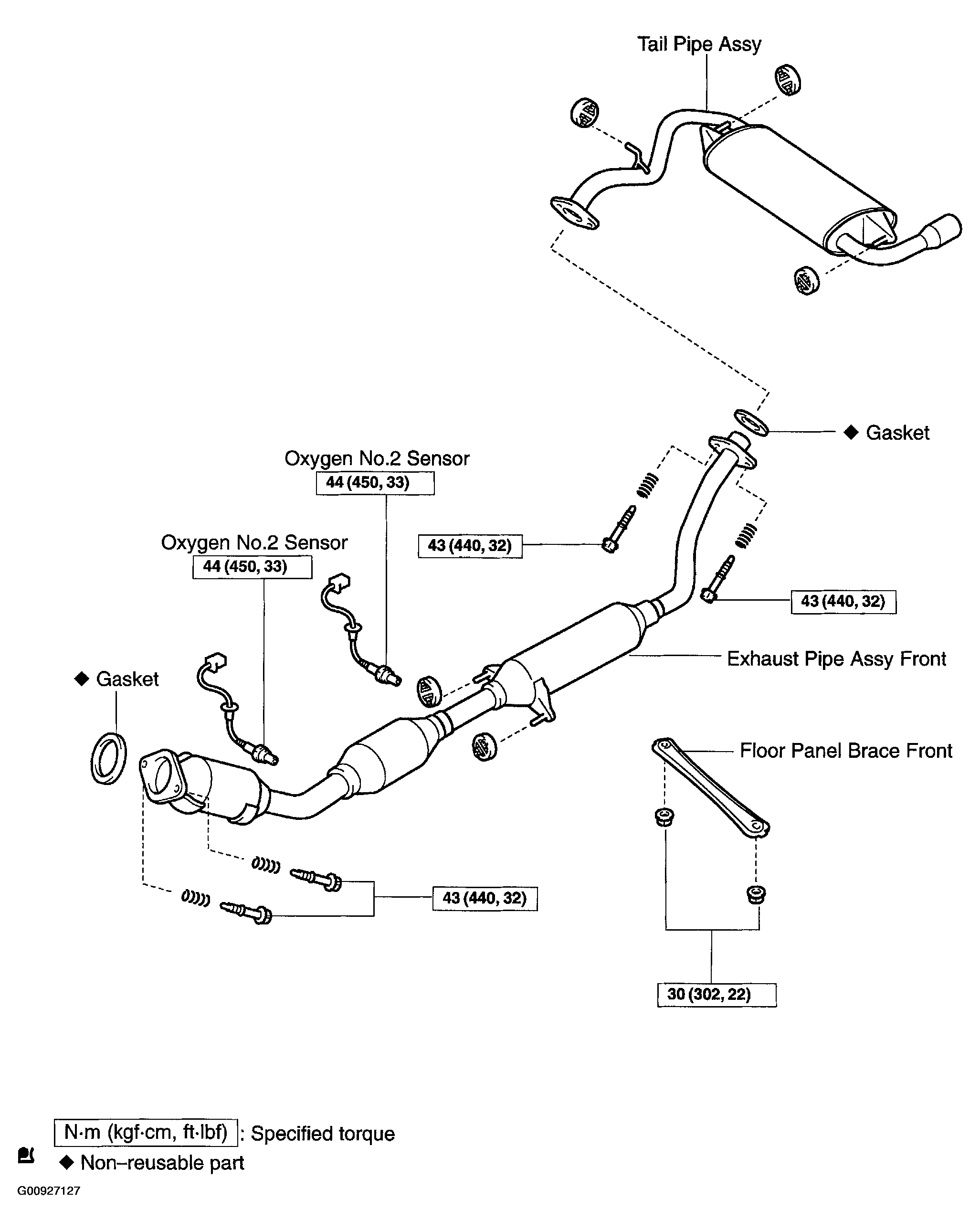

Fig 1: Exhaust Pipe Components (2ZZ-GE)
G00927127Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
