Headlamp Dimmer Switch Assembly: Replacement

WARNING: This page is about a different car, the 2004 Toyota Matrix. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE STEERING COLUMN COVER LWR
1. Remove 3 screws and steering column cover LWR.

  Fig 1: Removing Steering Column Cover LWR Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE HEADLAMP DIMMER SWITCH ASSY
1. Disconnect the connector.
2. Release the claw and pull out the head light dimmer switch assy.

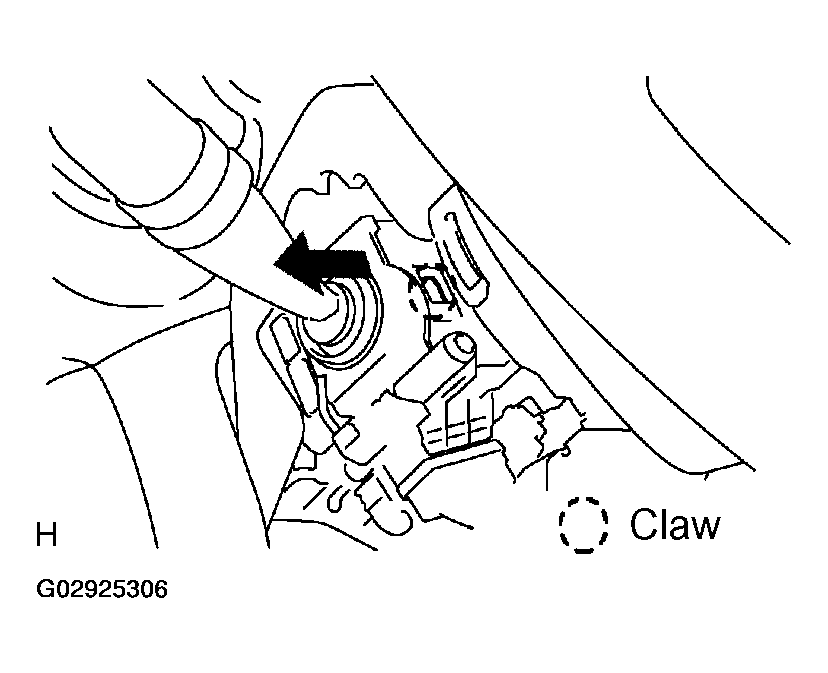

  Fig 2: Releasing Headlamp Dimmer Switch Assy Claw
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
