License Plate Lamp Assembly: Replacement

WARNING: This page is about a different car, the 2004 Toyota Matrix. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE BACK DOOR TRIM BOARD ASSY (See  OVERHAUL  )
  2. REMOVE BACK DOOR OUTSIDE HANDLE (See  OVERHAUL  )
  3. REMOVE BACK DOOR LOCK CYLINDER & KEY SET (See  OVERHAUL  )
  4. REMOVE BACK DOOR GARNISH SUB-ASSY OUTSIDE (See  OVERHAUL  )
  5. REMOVE LICENSE PLATE LAMP ASSY

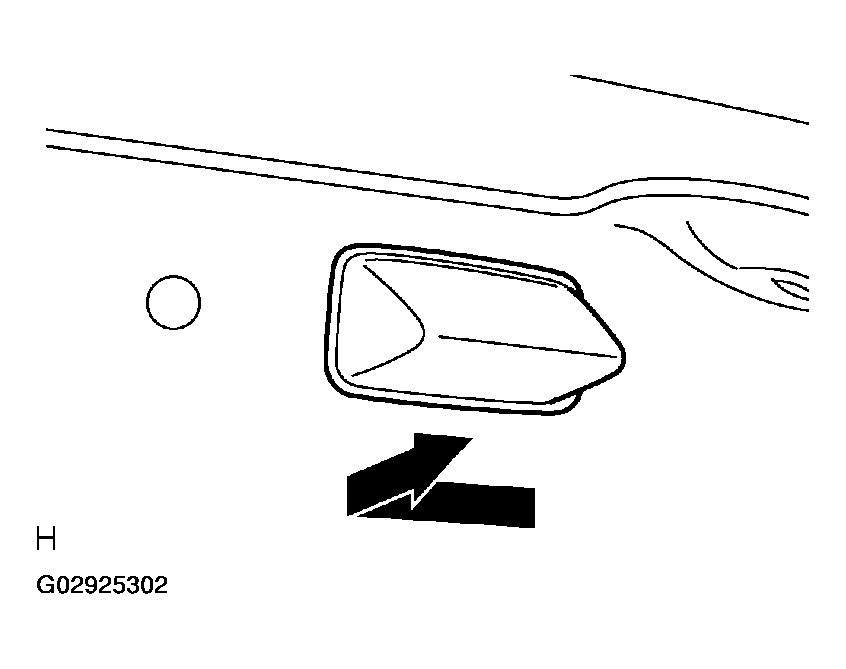

    1. Pull the license plate light assy to the side of vehicle as shown in Fig 1 and release the claw.
      2. Fig 1: Pulling Out License Plate Light Assy.
      G02925302Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the connector and remove the license plate light assy.
