Antenna Cord Sub-Assembly: Replacement

WARNING: This page is about a different car, the 2004 Toyota Matrix. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

COMPONENTS

REMOVE ROOF HEADLINING ASSY (See REPLACEMENT )
NOTE:
Refer to the instructions for removal of the roof headlining assy.
REMOVE ANTENNA CORD SUB-ASSY
1. Remove the antenna cord sub-assy from the roof headlining assy.
INSTALL ANTENNA CORD SUB-ASSY
1. Tape the antenna cord sub-assy at the position of the roof headlining assy shown in Fig 1 .
  NOTE:
  - The antenna cord sub-assy should come to the center of the tape (100 mm (3.94 in.) x 25 mm (0.98 in.)) when taped.
  - Try not to touch the adhesive side of the tape when taping.

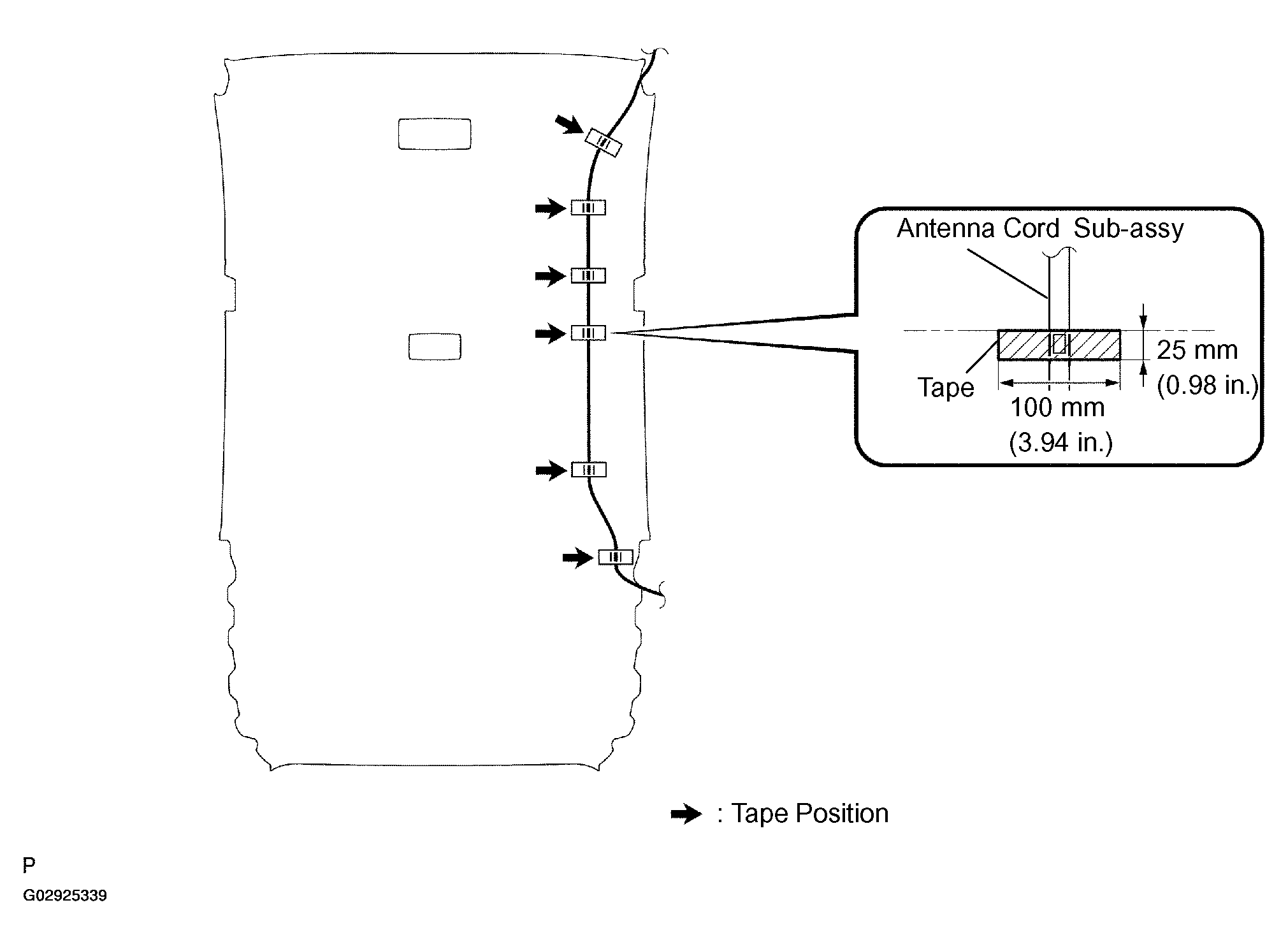

    Fig 1: Locating Tape Position
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL ROOF HEADLINING ASSY (See REPLACEMENT )
INSTALL REAR SEAT CUSHION ASSY AND REAR SEAT BACK ASSY (See OVERHAUL )
