On-Vehicle Inspection

WARNING: This page is about a different car, the 2004 Toyota Matrix. However, it is still accessible from the selected car via links, so may be relevant.

CHECK PLAY OF ACCELERATOR AUTO DRIVE CABLE ASSY (1ZZ-FE)

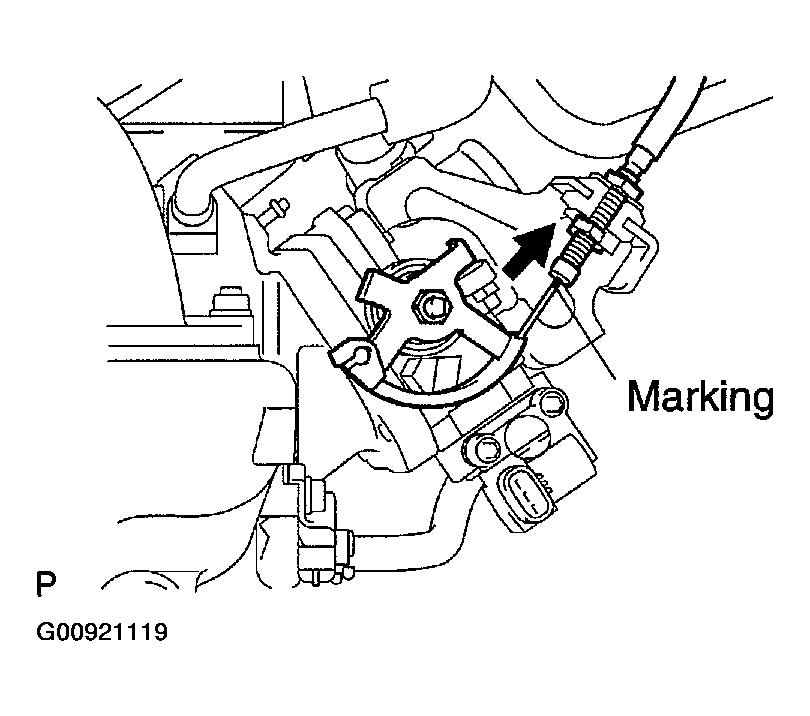

1. Push the wire into the cable so as not to move the throttle link and put a mark on the position shown in Fig 1 .

  Fig 1: Identifying Mark On Throttle Link
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

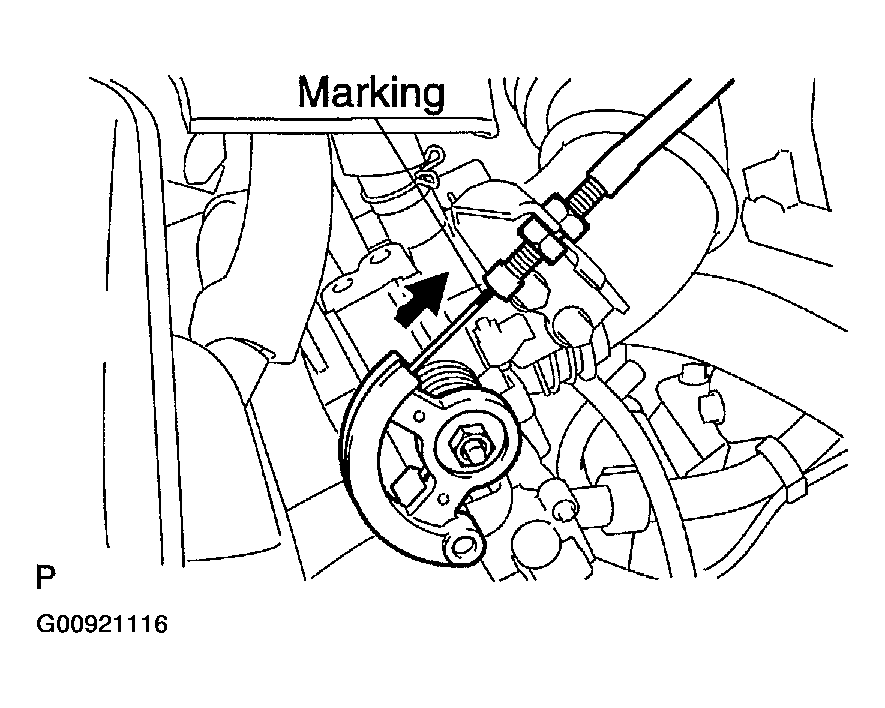

2. Pull the wire and check the moved distance of the mark.
Fig 2: Pulling Wire And Checking Moved Distance Of Mark
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
ADJUST PLAY IN ACCELERATOR AUTO DRIVE CABLE ASSY (1ZZ-FE)

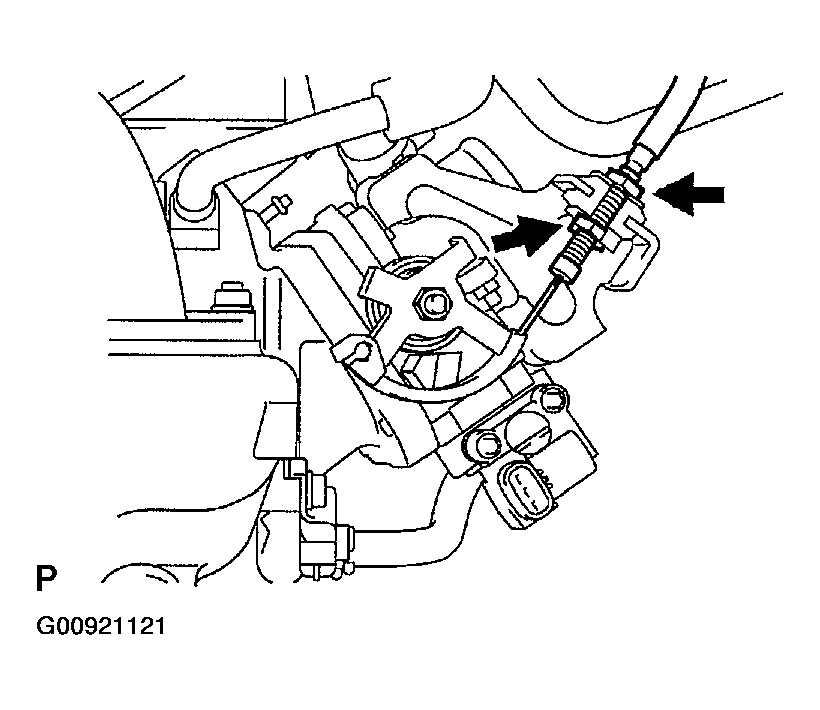

1. Changing the double nut position shown by the arrows in Fig 3, adjust the play to the standard value.
  1. Standard: 2 - 6 mm (0.079 - 0.236 in.)
Fig 3: Adjusting Play To Standard Value
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
CHECK PLAY OF ACCELERATOR AUTO DRIVE CABLE ASSY (2ZZ-GE)

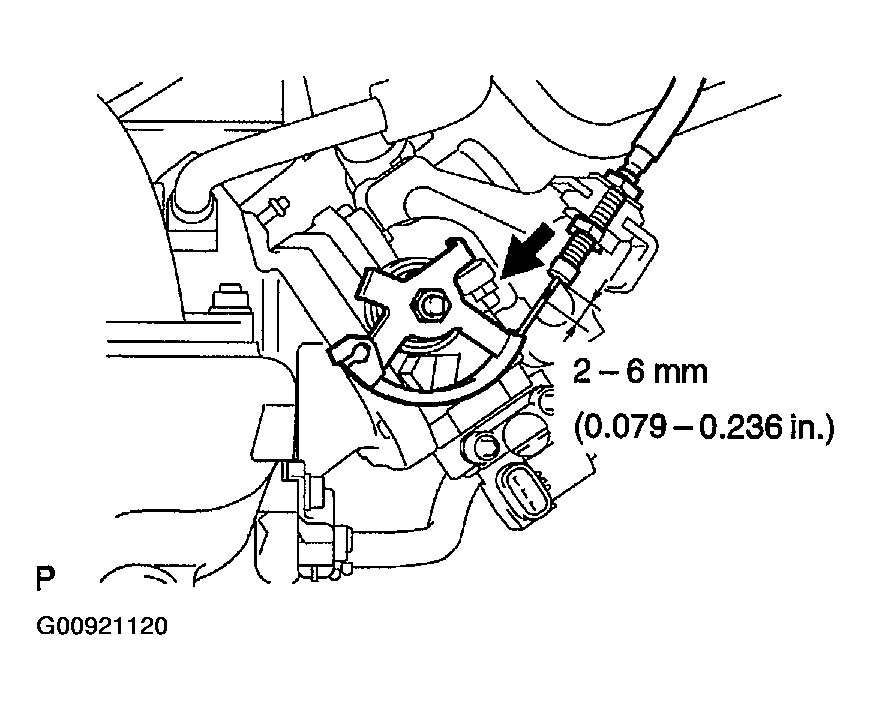

1. Push the wire into the cable so as not to move the throttle link and put a mark on the position shown in Fig 4 .

  Fig 4: Checking Play Of Accelerator Auto Drive Cable Assy (2ZZ-GE)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

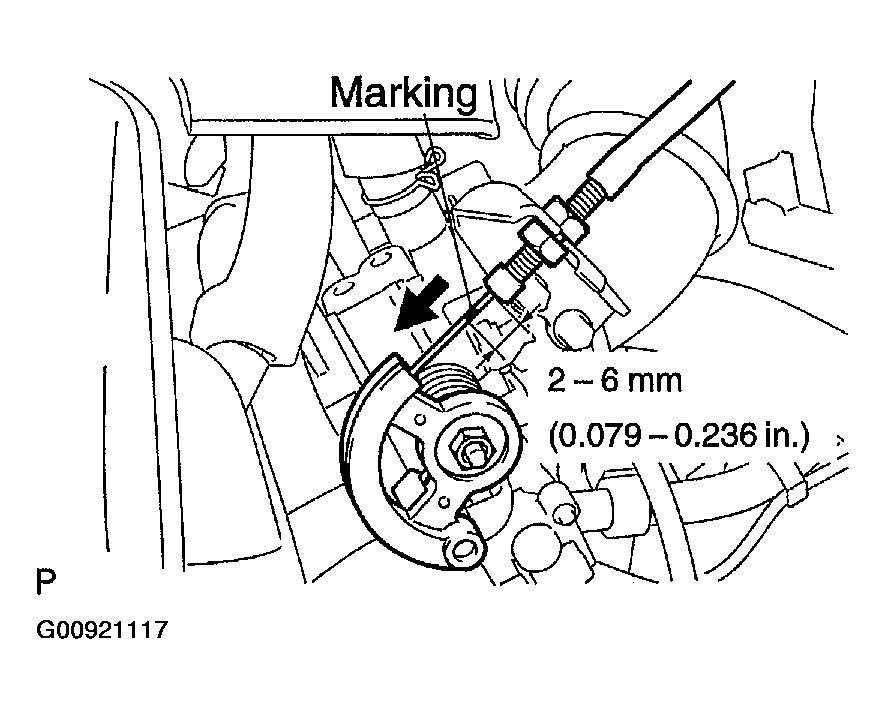

2. Pull the wire and check the moved distance of the mark.
Fig 5: Pulling Wire And Checking Moved Distance Of Mark
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
ADJUST PLAY IN ACCELERATOR AUTO DRIVE CABLE ASSY (2ZZ-GE)

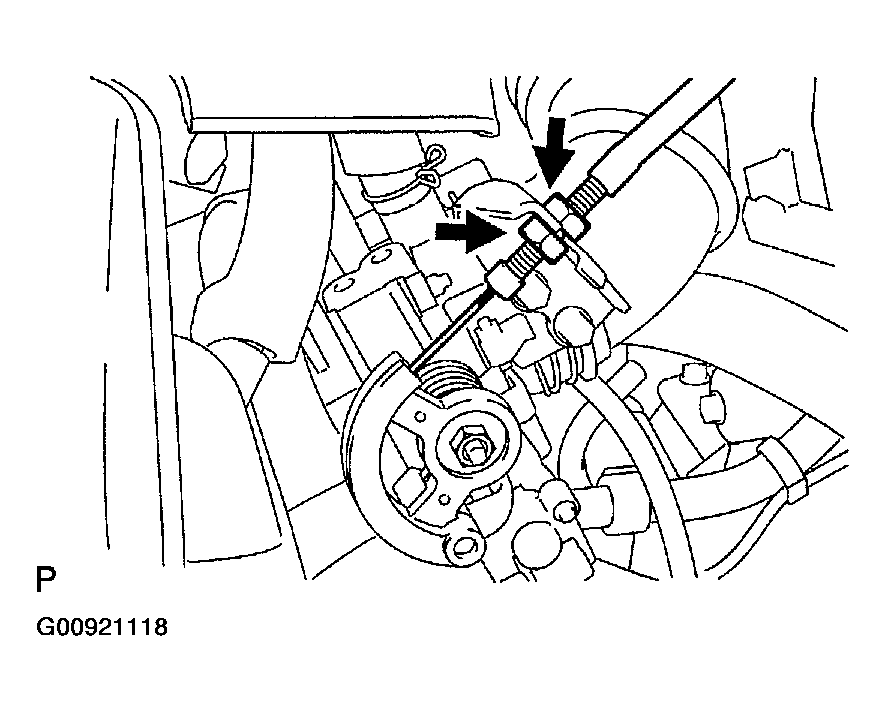

1. Changing the double nut position shown by the arrows in Fig 6, adjust the play to the standard value.
  1. Standard: 2 - 6 mm (0.079 - 0.236 in.)
Fig 6: Adjusting Play In Accelerator Auto Drive Cable Assy (2ZZ-GE)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
ADJUST PLAY IN ACCELERATOR CONTROL CABLE ASSY

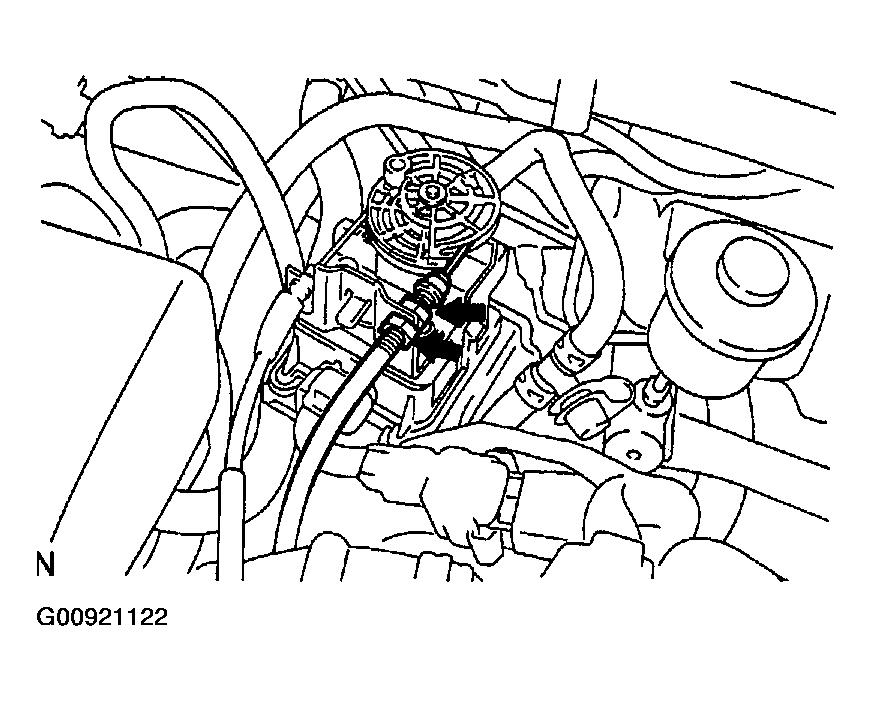

1. Remove the cruise control actuator cover and adjust the play in the accelerator control cable assy by changing the double nut position.
Fig 7: Adjusting Play In Accelerator Control Cable Assy
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
