Section 19 (Automatic Transmission Floor Shift Assembly (ATM)): Components
WARNING:
This page is about a different variant/trim than selected.

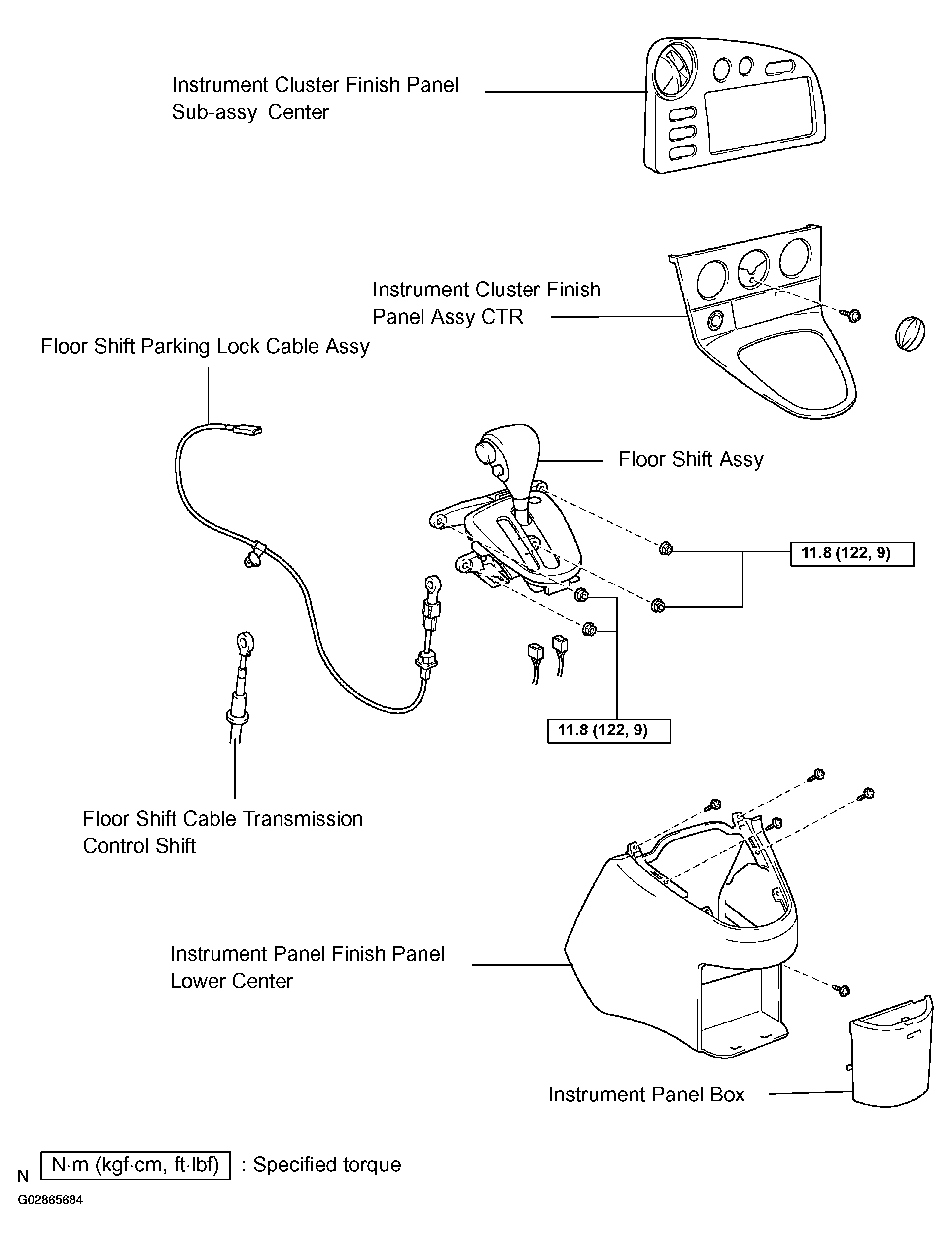

Fig 1: Identifying Floor Shift Assembly (ATM) Components (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

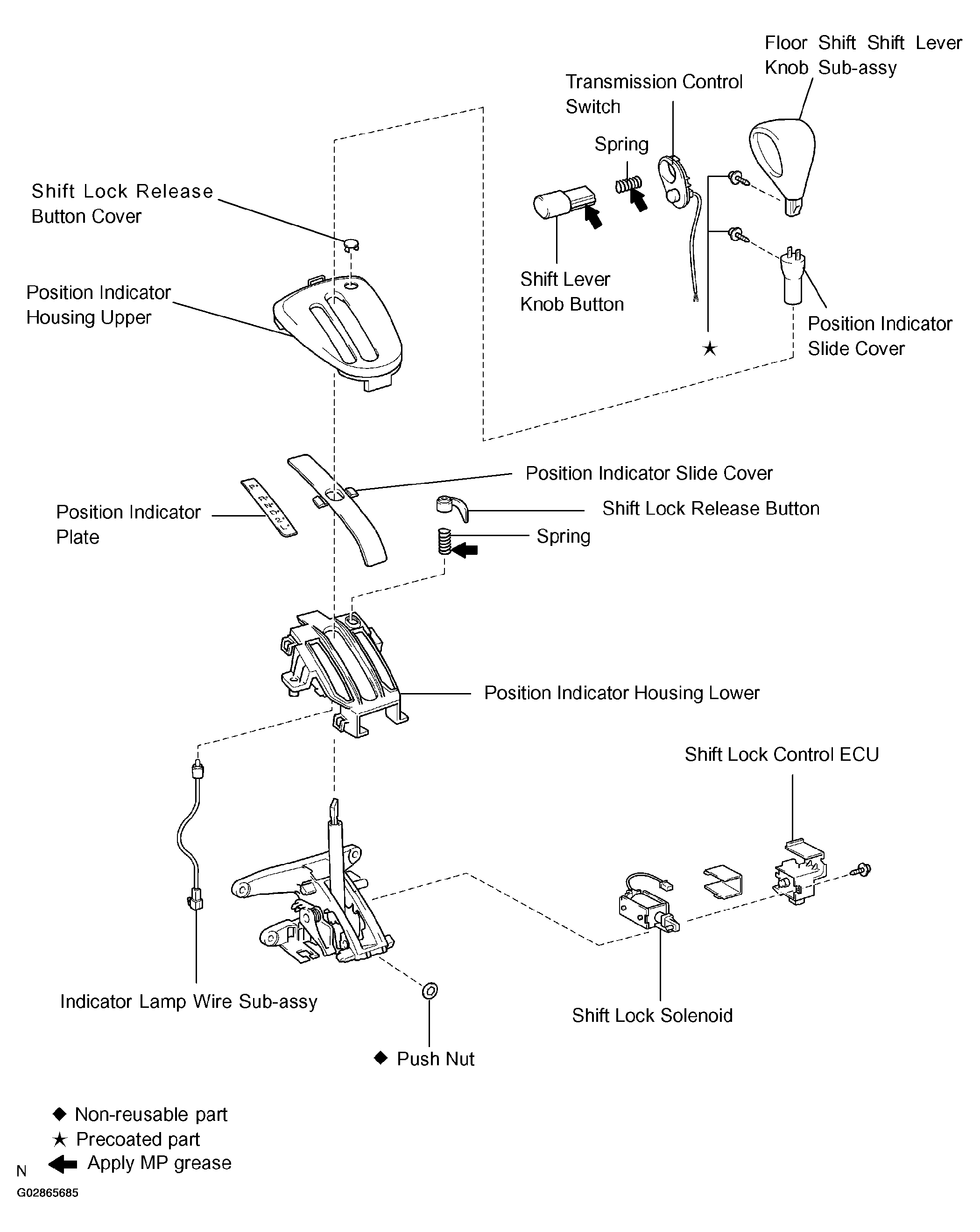

Fig 2: Identifying Floor Shift Assembly (ATM) Components (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
