Section 19 (Automatic Transmission Floor Shift Assembly (ATM)): Overhaul

WARNING: This page is about a different variant/trim than selected.

REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSY CENTER (See REPLACEMENT )
REMOVE INSTRUMENT CLUSTER FINISH PANEL ASSY CTR (See REPLACEMENT )
REMOVE INSTRUMENT PANEL BOX (See REPLACEMENT )
REMOVE INSTRUMENT PANEL FINISH PANEL LOWER CENTER (See REPLACEMENT )
DISCONNECT FLOOR SHIFT PARKING LOCK CABLE ASSY
1. Push the claw and disconnect the parking lock cable assy from the shift lock release link.

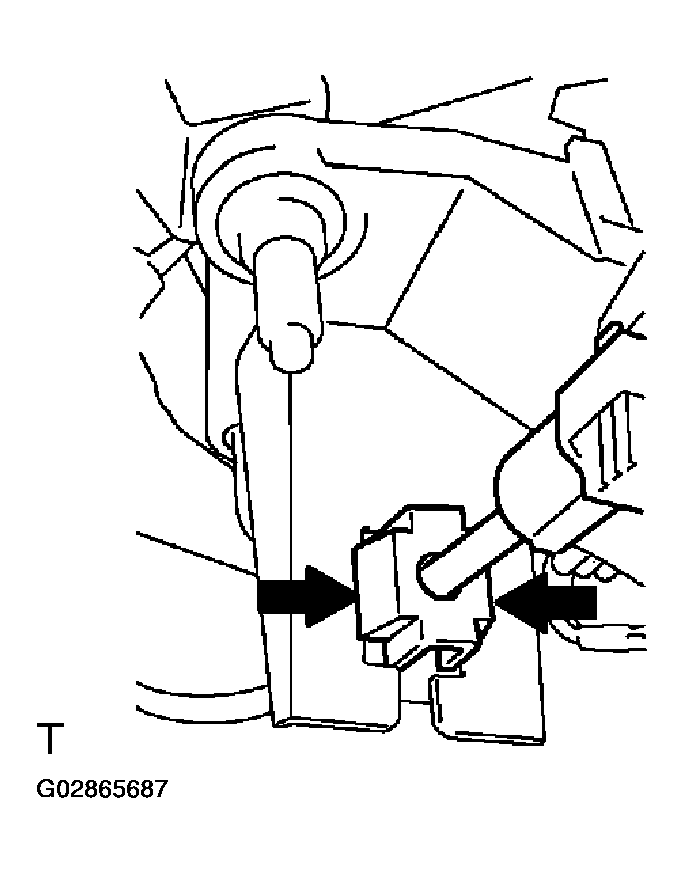

  Fig 1: Disconnecting Parking Lock Cable Assy From Shift Lock Release Link
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using a screwdriver, disconnect the parking lock cable assy from the shift lever plate.

  Fig 2: Disconnecting Parking Lock Cable Assy From Shift Lever Plate
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

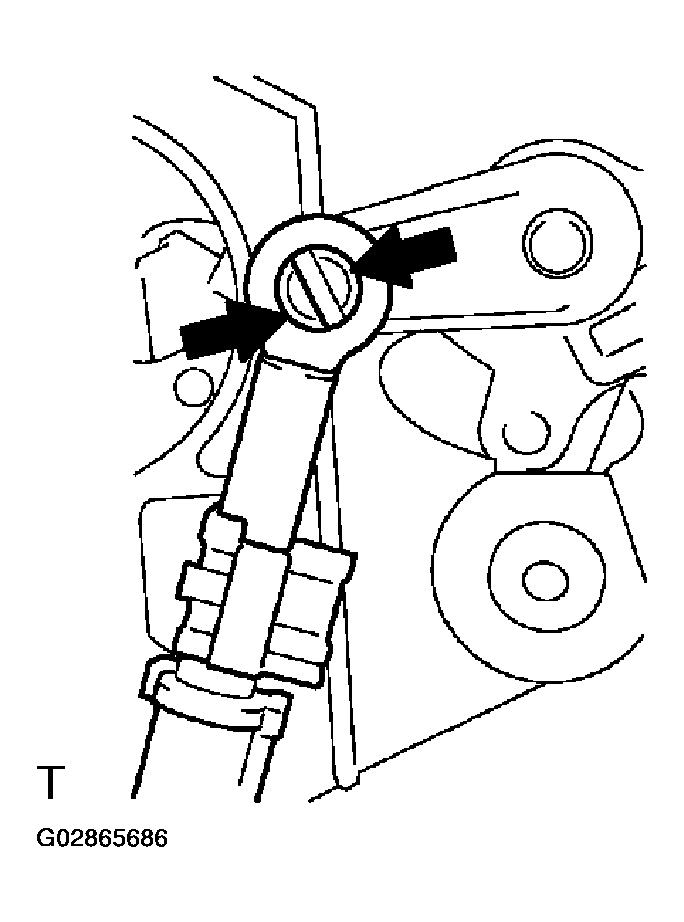

DISCONNECT FLOOR SHIFT CABLE TRANSMISSION CONTROL SHIFT

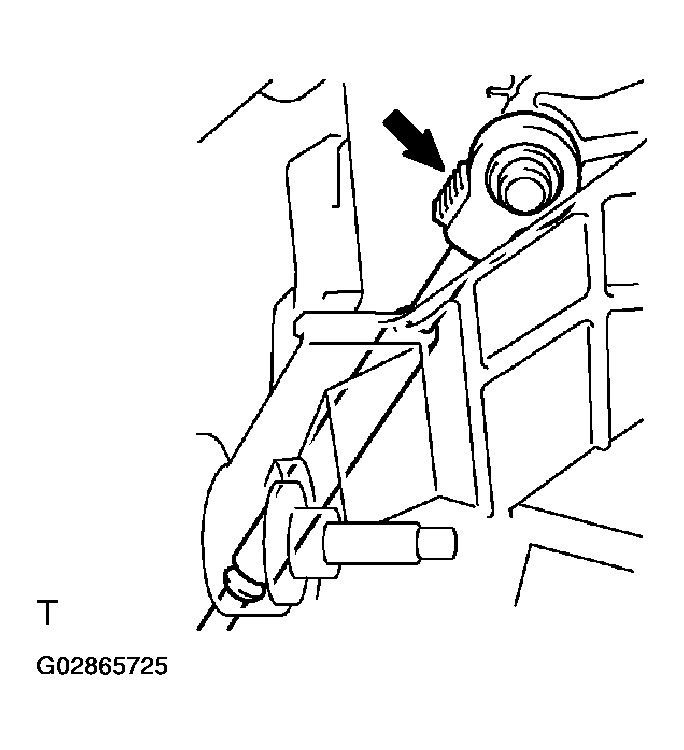

1. Disconnect the control cable end from the shift lever.

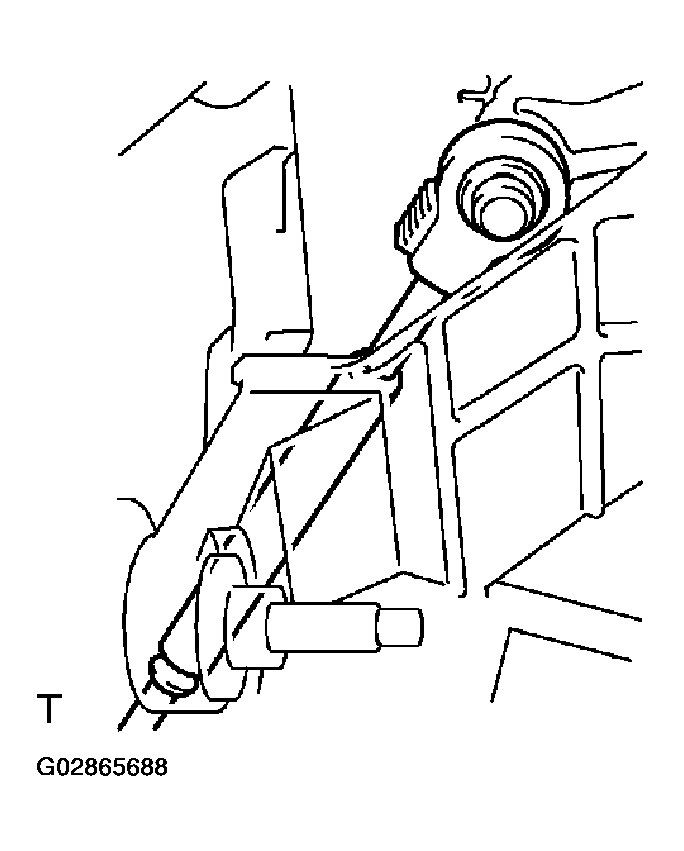

  Fig 3: Disconnecting Control Cable End From Shift Lever
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

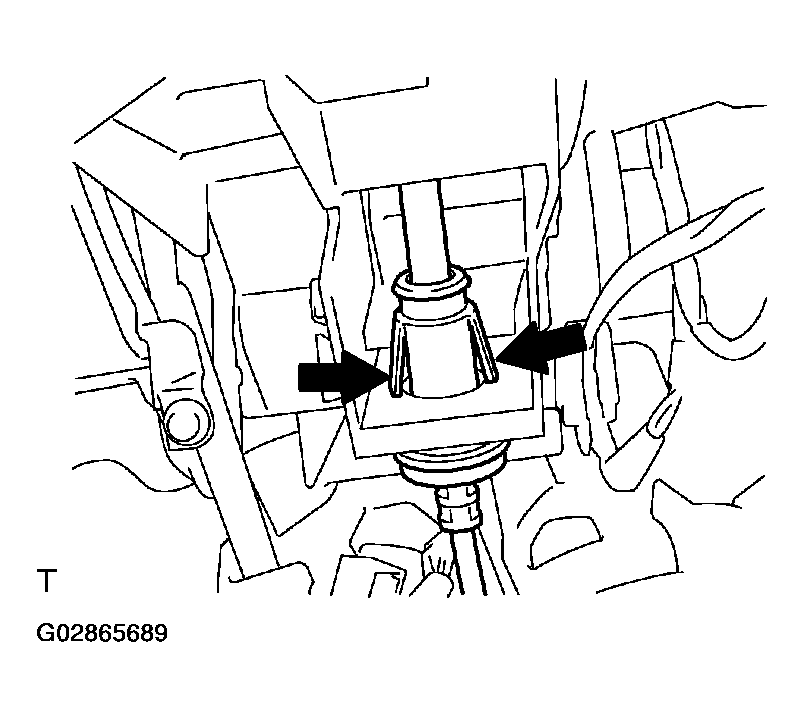

2. Using a screwdriver, disconnect the control cable from the shift lever plate.

  Fig 4: Disconnecting Control Cable From Shift Lever Plate
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE FLOOR SHIFT ASSY

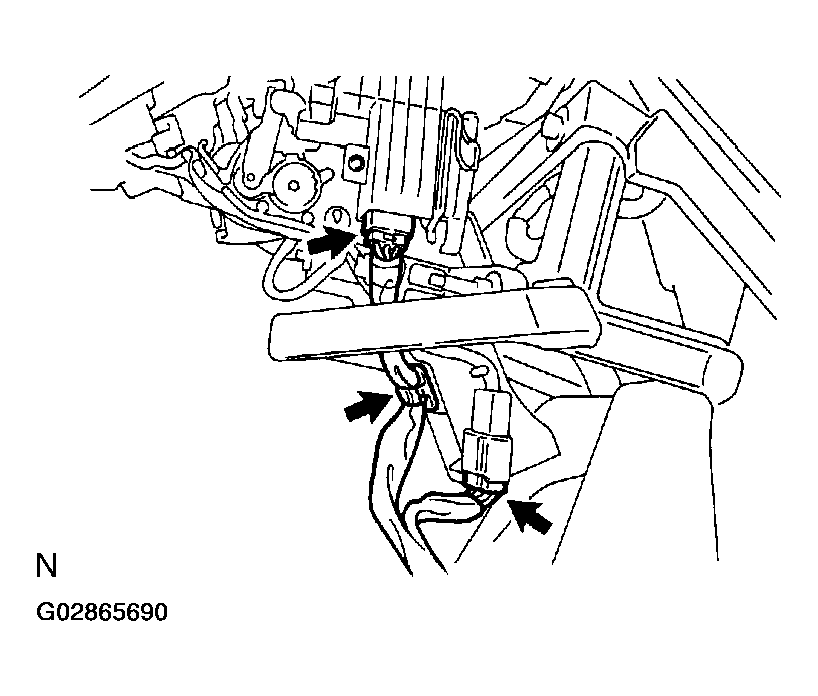

1. Disconnect the shift lock control ECU connector and indicator lamp wire connector.
2. Disconnect the wire harness clamp.

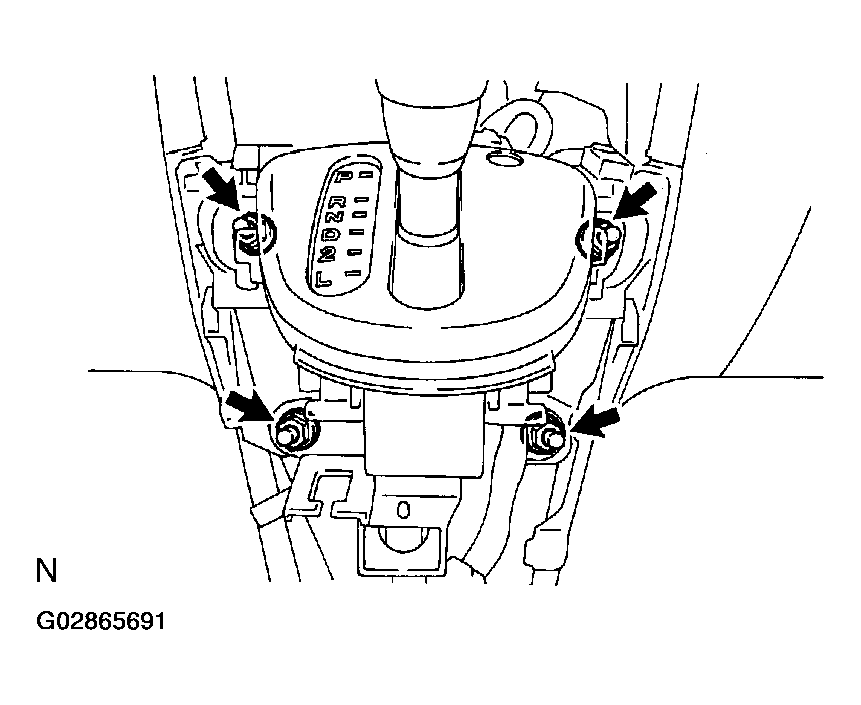

3. Remove the 4 nuts and floor shift assy.

  Fig 6: Removing Floor Shift Assy
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE FLOOR SHIFT LEVER KNOB SUB-ASSY

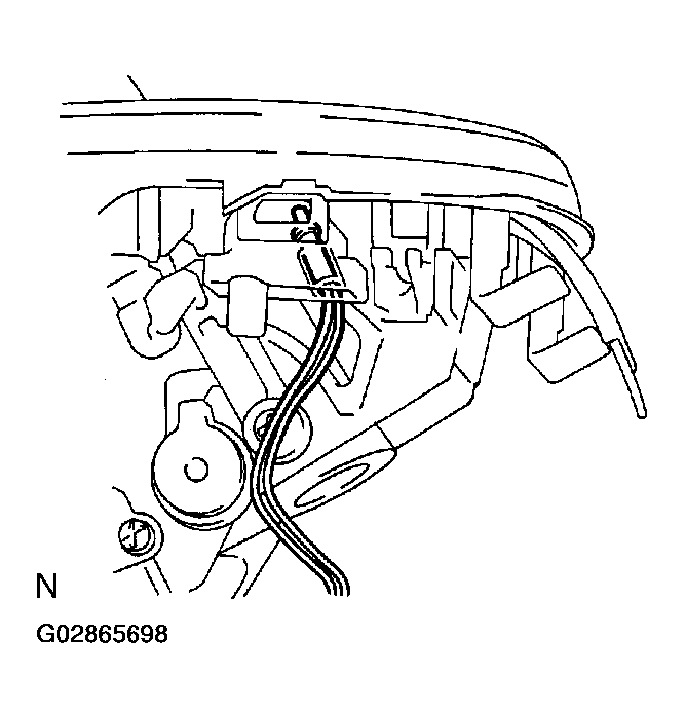

1. Disconnect the indicator lamp wire connector from the shift lever plate.
2. Using a small screwdriver, remove the push nut.
3. Separate the wire harness from the shift lever plate.

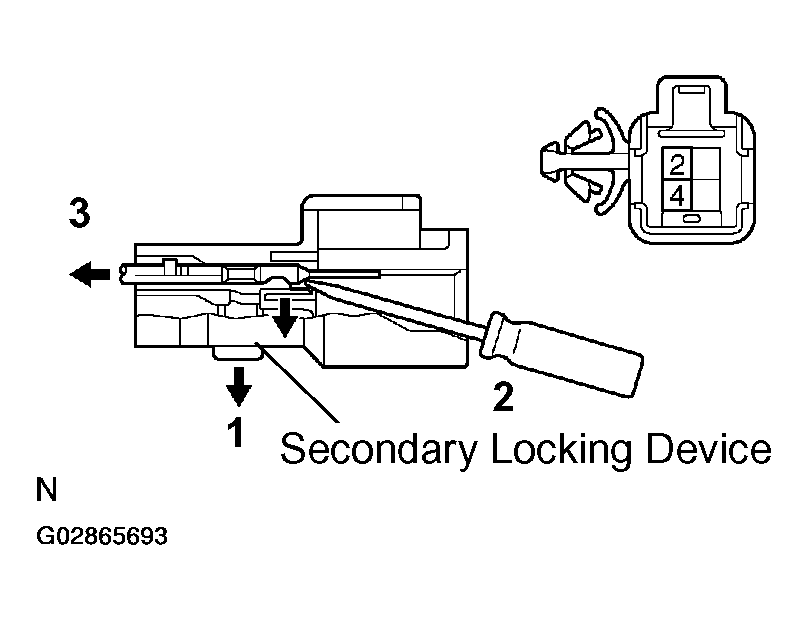

4. Disengage the secondary locking device.
5. Release the locking lug of the terminals 2 and 4, and pull the terminals out from the rearward.

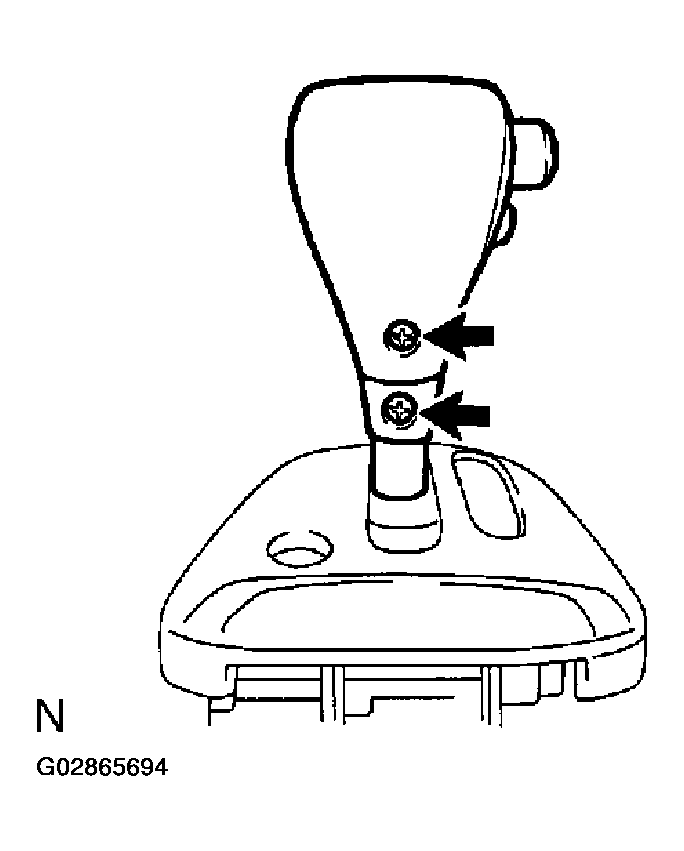

6. Remove the 2 screws and shift lever knob sub-assy with the position indicator slide cover.
  NOTE: Pay attention not to apply unnatural load to transmission control switch wire harness.

  Fig 9: Removing Shift Lever Knob Sub-Assy
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE SHIFT LEVER KNOB BUTTON

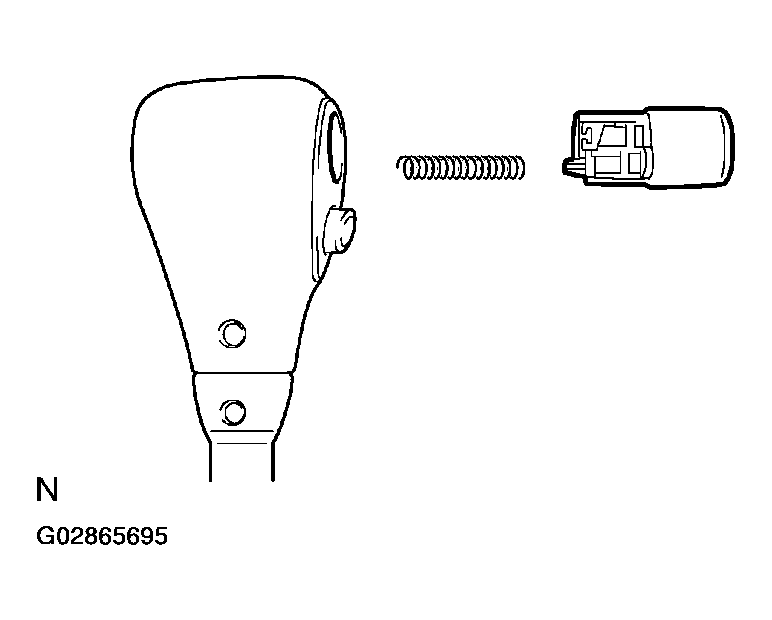

1. Remove the shift lever knob button and spring from the shift lever knob.

  Fig 10: Removing Shift Lever Knob Button & Spring
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE POSITION INDICATOR SLIDE COVER
1. Remove the position indicator slide cover No. 2 from the shift lever knob.

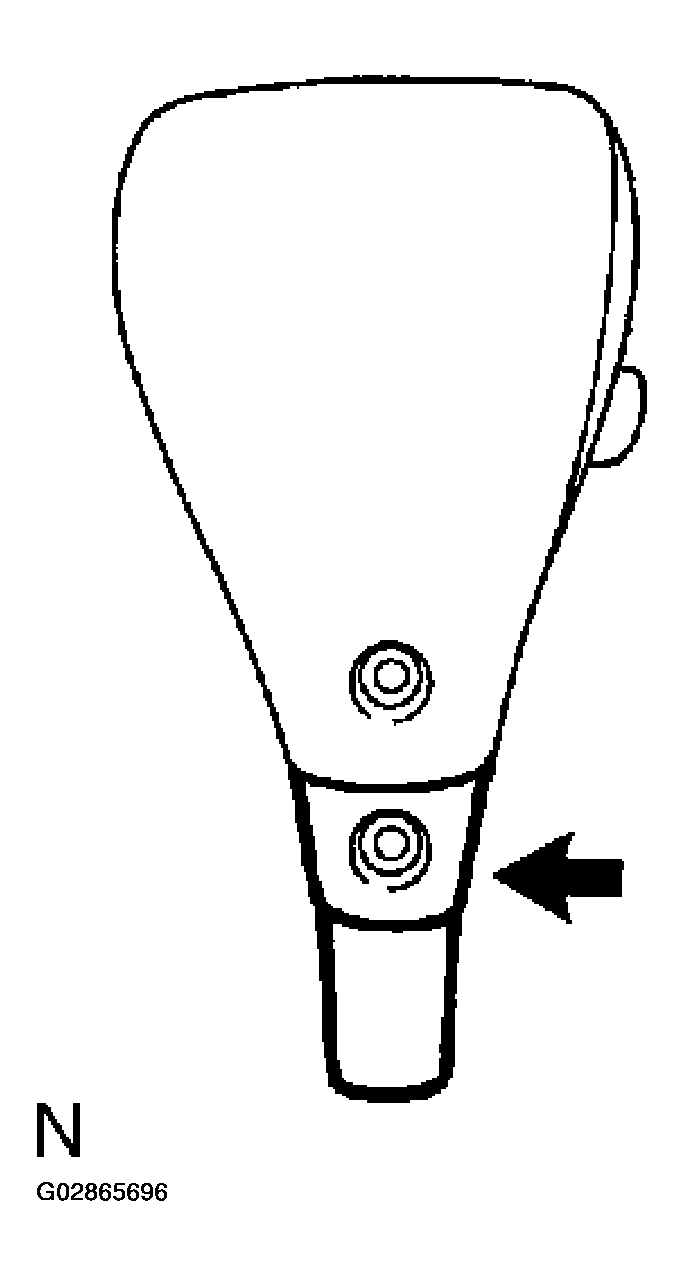

  Fig 11: Identifying Position Indicator Slide Cover No. 2
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

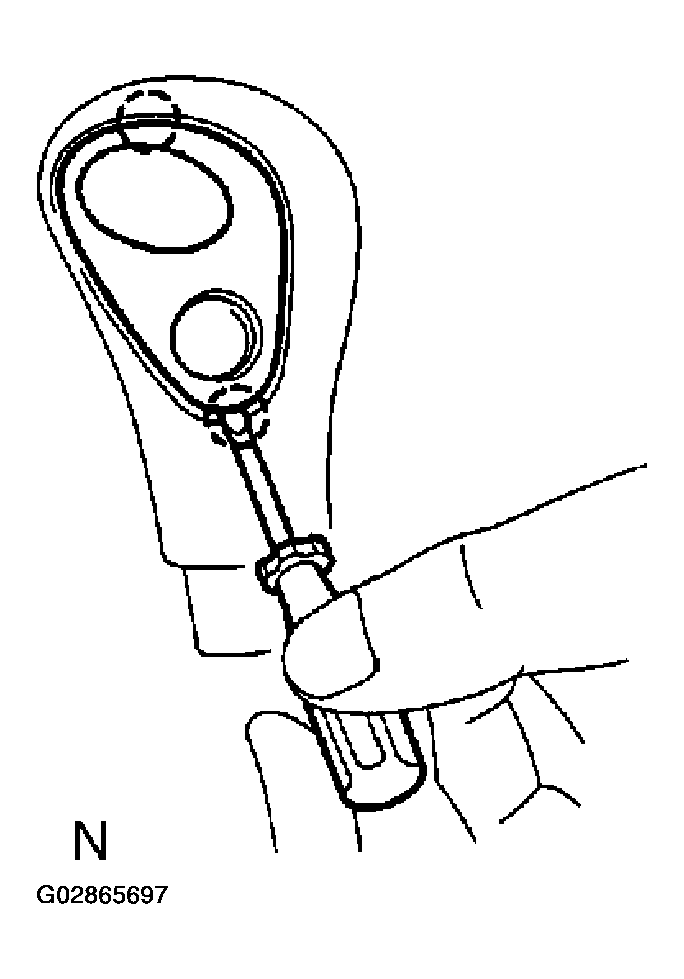

REMOVE TRANSMISSION CONTROL SWITCH
1. Using a small screwdriver, remove the transmission control switch from the shift lever knob.

  Fig 12: Removing Transmission Control Switch From Shift Lever Knob
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE INDICATOR LAMP WIRE SUB-ASSY
1. Remove the indicator lamp wire sub-assy from the position indicator housing lower.

  Fig 13: Removing Indicator Lamp Wire Sub-Assy
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE POSITION INDICATOR HOUSING LOWER

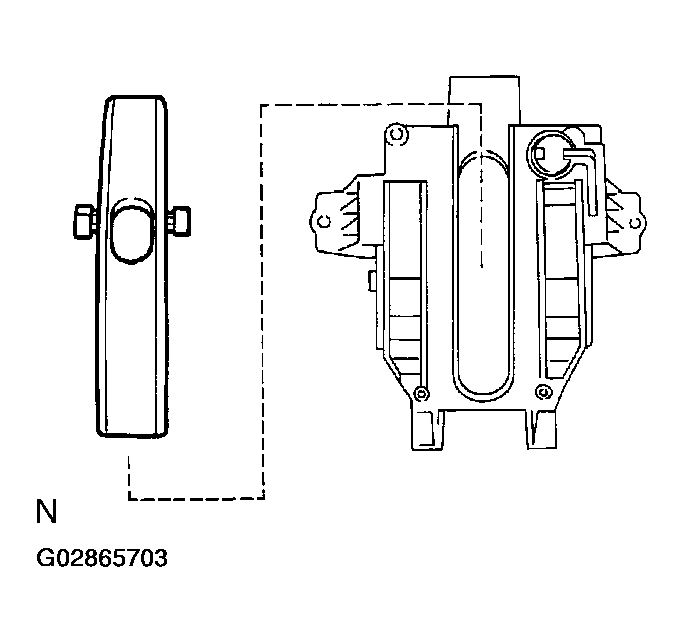

1. Remove the position indicator housing lower with the position indicator housing upper from the shift lever plate.

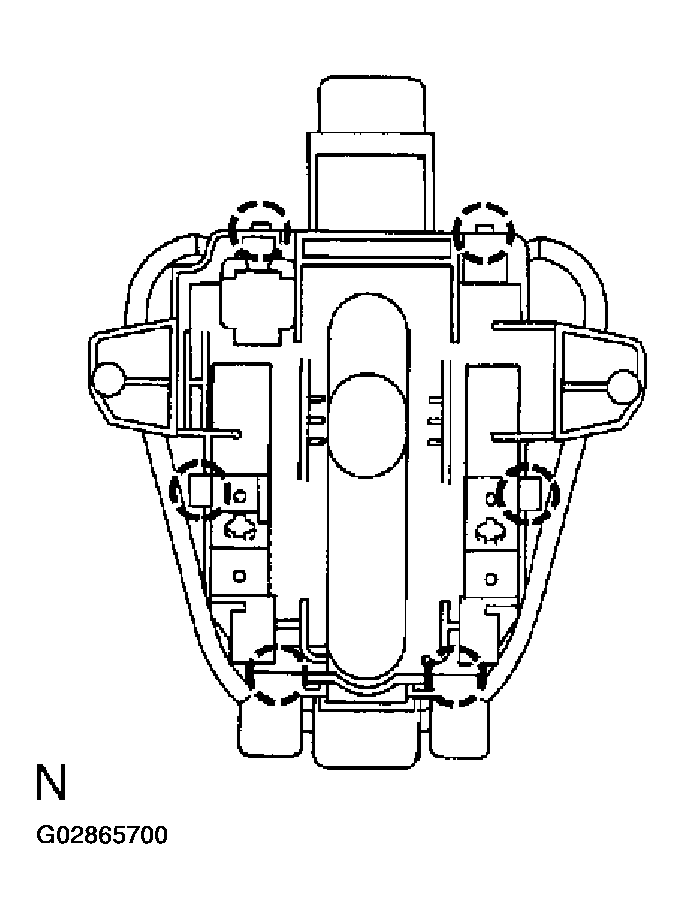

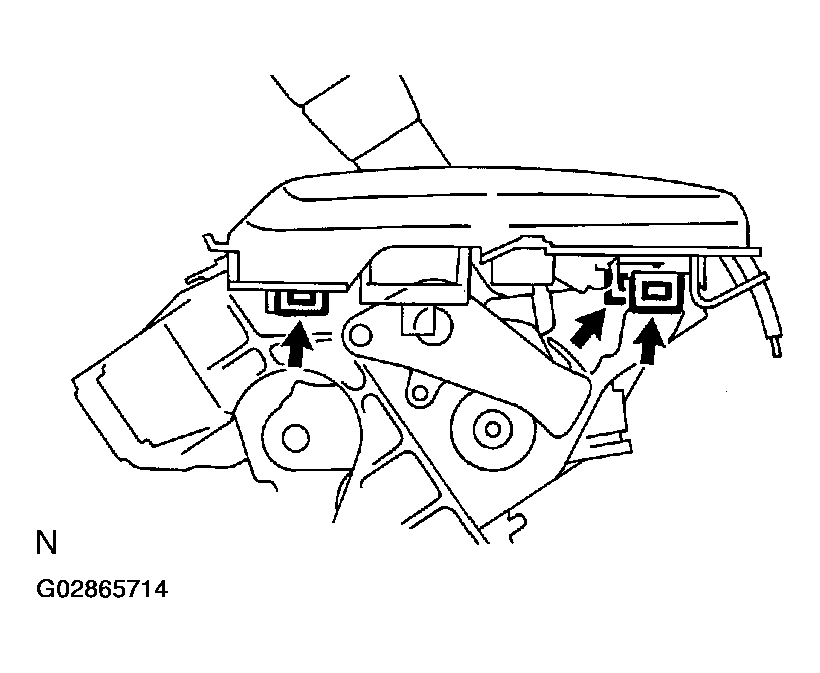

  Fig 14: Removing Position Indicator Housings
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE POSITION INDICATOR HOUSING UPPER
1. Using a small screw driver, remove the position indicator housing upper from the position indicator housing lower.

  Fig 15: Separating Position Indicator Housing Upper From Lower
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

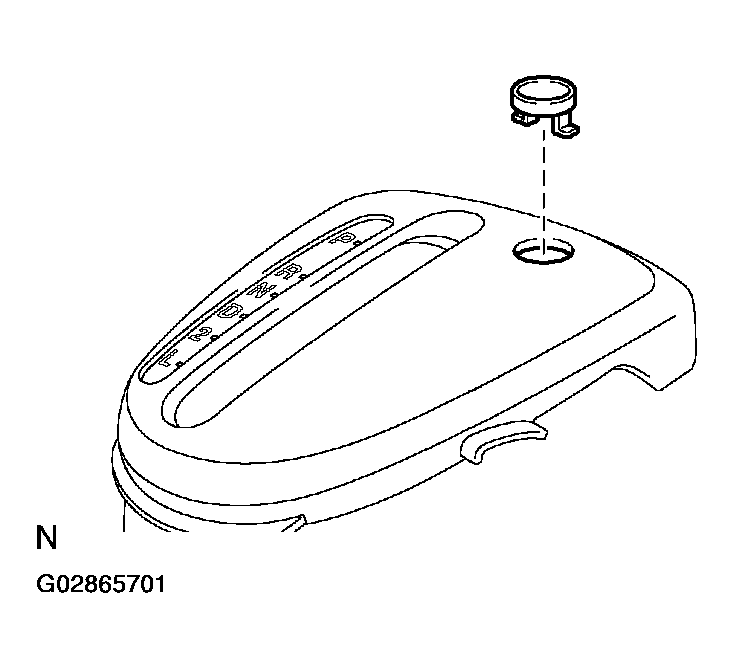

REMOVE SHIFT LOCK RELEASE BUTTON COVER
1. Using a screwdriver, remove the shift lock release button cover.

  Fig 16: Removing Shift Lock Release Button Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE CONTROL POSITION INDICATOR PLATE
1. Remove the position indicator plate from the position indicator housing upper.

  Fig 17: Removing Position Indicator Plate
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE POSITION INDICATOR SLIDE COVER
1. Remove the position indicator slide cover from the position indicator housing lower.

  Fig 18: Removing Position Indicator Slide Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE SHIFT LOCK RELEASE BUTTON
1. Remove the shift lock release button and spring from the position indicator housing lower.

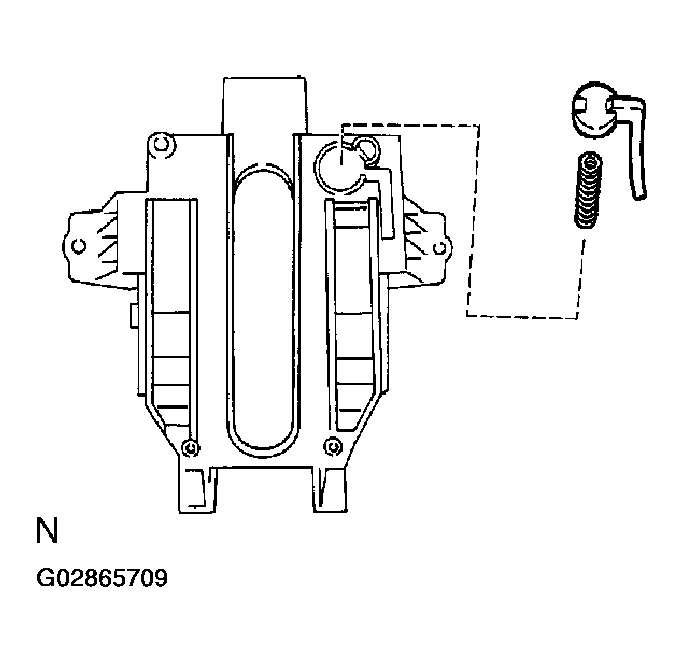

  Fig 19: Removing Shift Lock Release Button & Spring
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE SHIFT LOCK CONTROL ECU
1. Remove the screw.
2. Disconnect the shift lock solenoid connector and remove the shift lock control ECU from the shift lever plate.

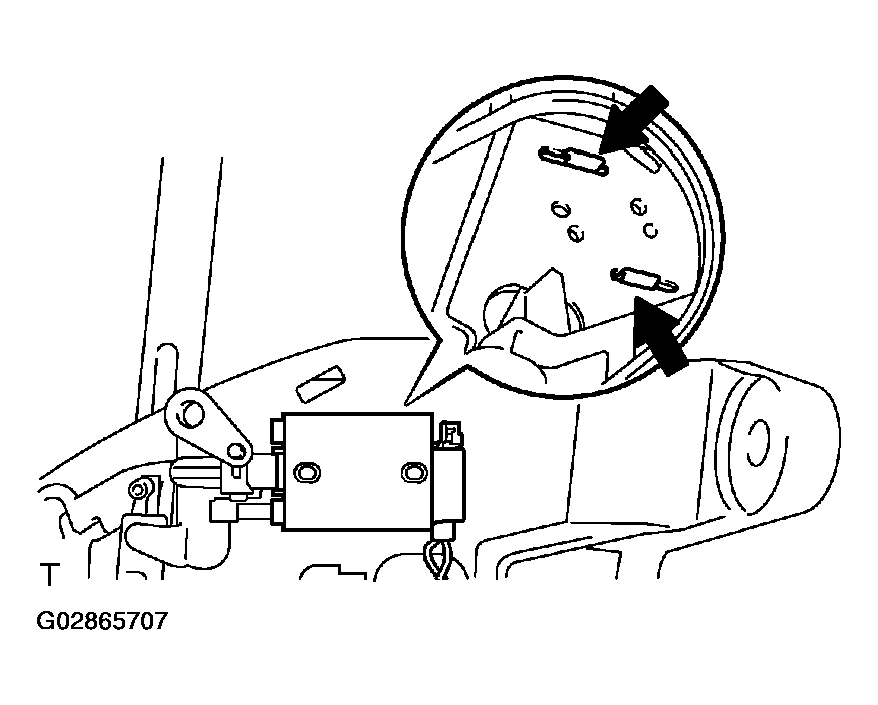

  Fig 20: Removing Shift Lock Control ECU From Shift Lever Plate
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE SHIFT LOCK SOLENOID

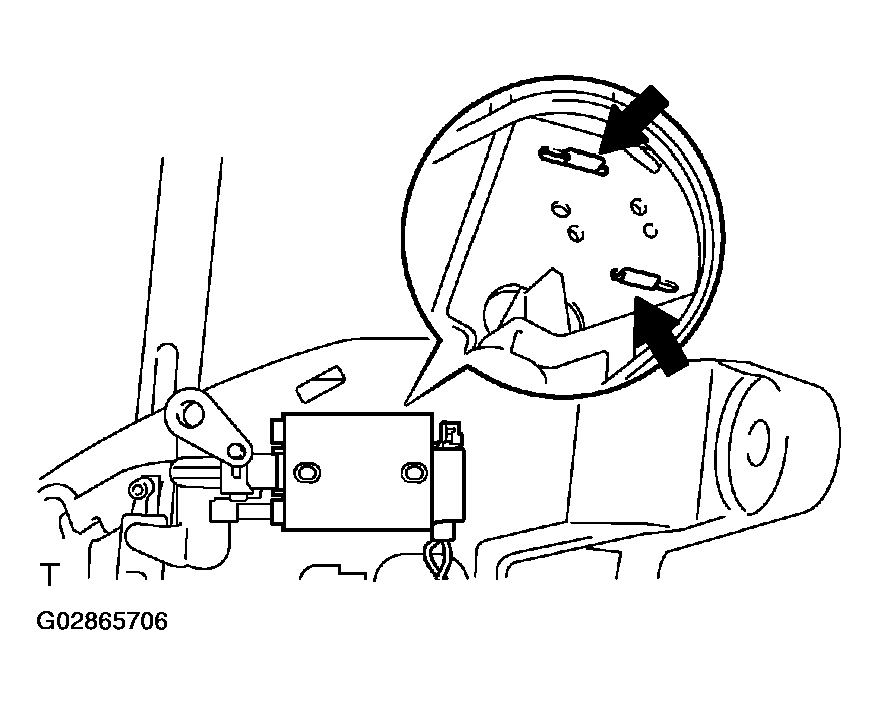

1. Using a screwdriver, remove the shift lock solenoid from the shift lever plate.

  Fig 21: Removing Shift Lock Solenoid From Shift Lever Plate
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL SHIFT LOCK SOLENOID
1. Install the shift lock solenoid to the shift lever plate.

  Fig 22: Installing Shift Lock Solenoid To Shift Lever Plate
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

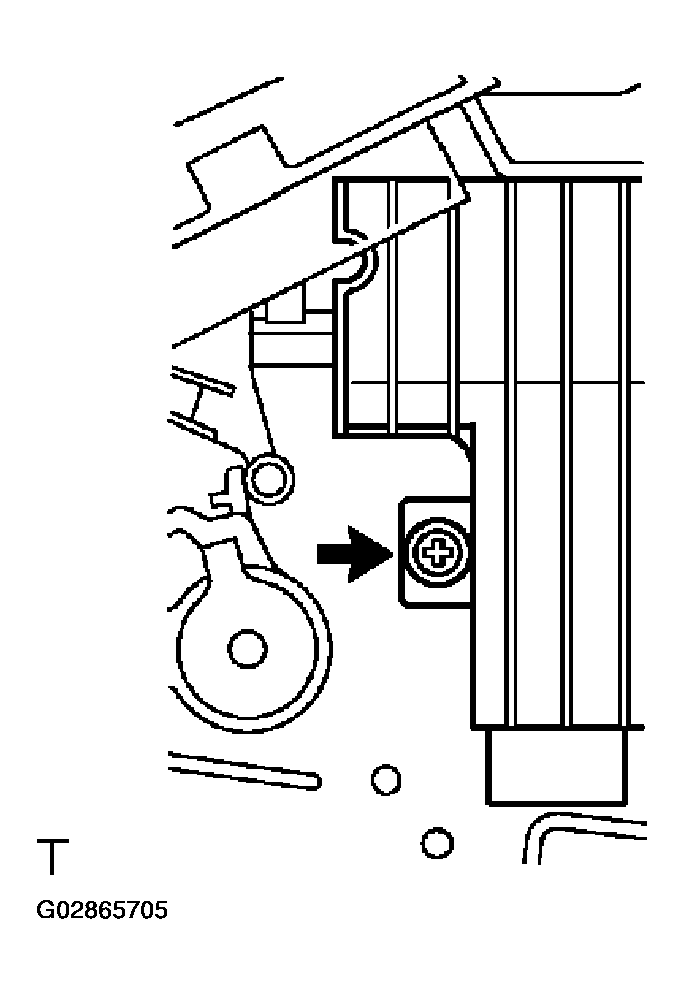

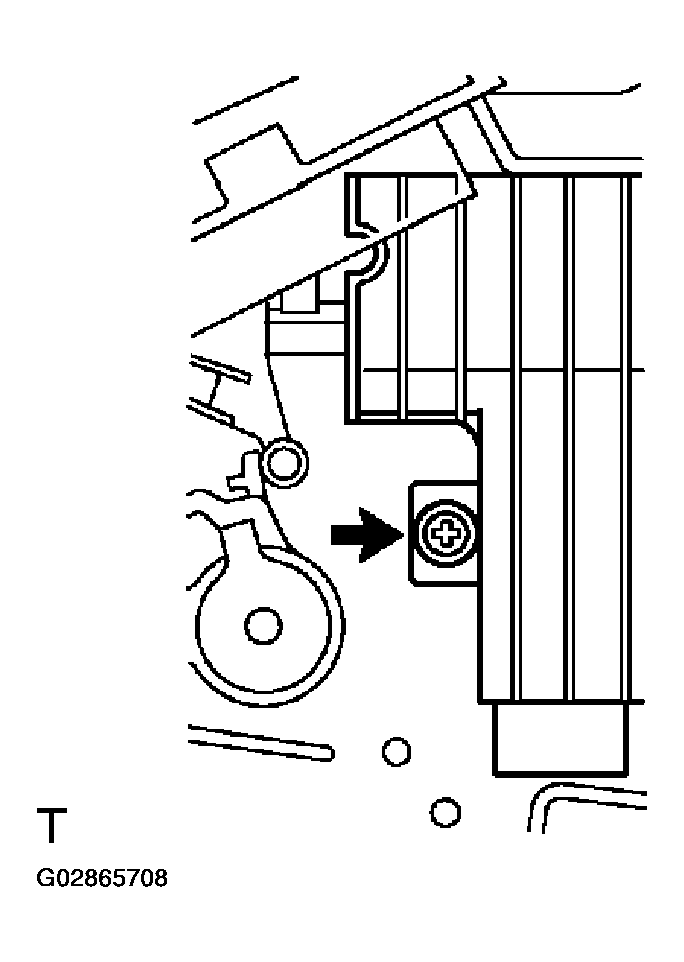

INSTALL SHIFT LOCK CONTROL ECU
1. Connect the shift lock solenoid connector to the shift lock control ECU.
2. Install the shift lock control ECU with the screw.
INSTALL SHIFT LOCK RELEASE BUTTON
1. Apply MP grease to the spring.
2. Install the shift lock release button and spring.

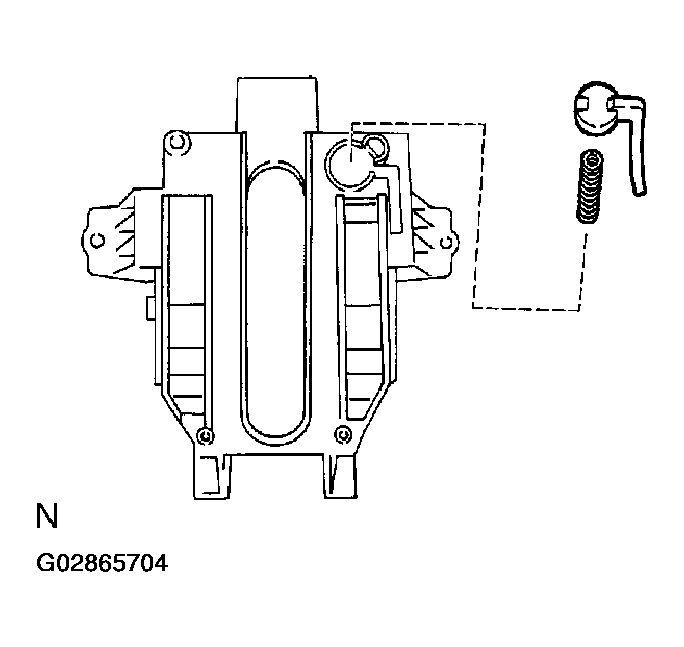

  Fig 24: Installing Shift Lock Release Button & Spring
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL POSITION INDICATOR SLIDE COVER
1. Install the position indicator slide cover to the position indicator housing lower.

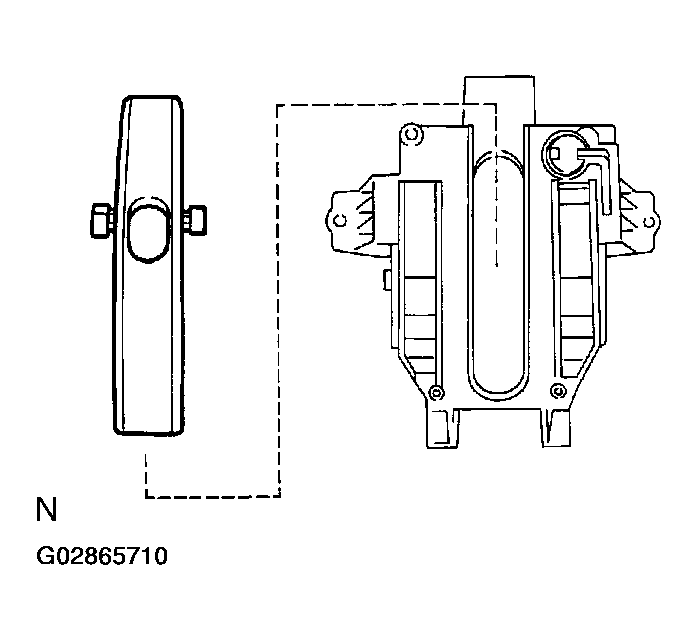

  Fig 25: Installing Position Indicator Slide Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

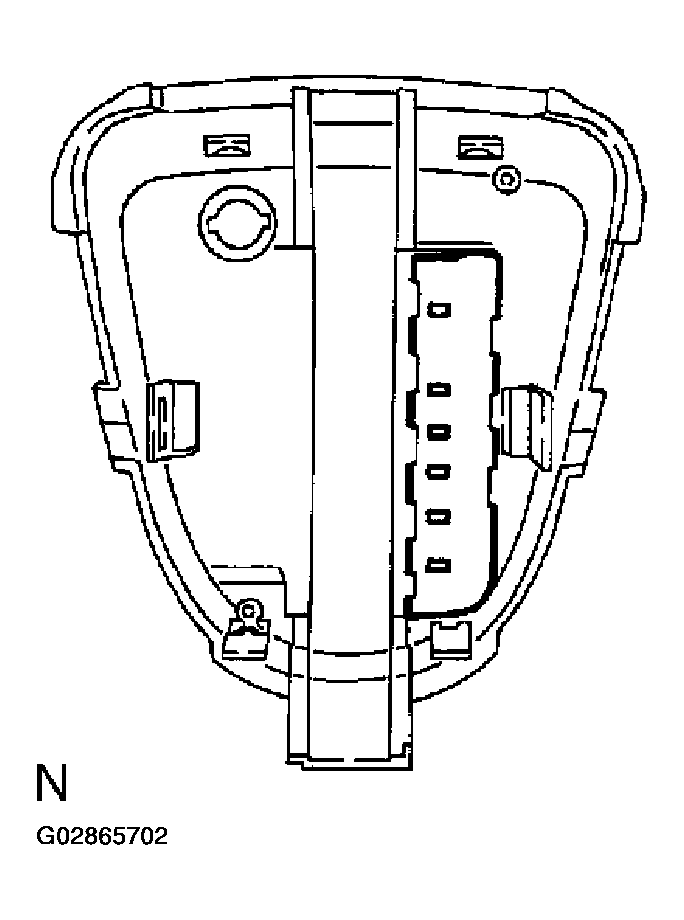

INSTALL CONTROL POSITION INDICATOR PLATE
1. Install the position indicator plate to the position indicator housing upper.

  Fig 26: Installing Position Indicator Plate
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL SHIFT LOCK RELEASE BUTTON COVER
1. Install the shift lock release button cover.

  Fig 27: Installing Shift Lock Release Button Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL POSITION INDICATOR HOUSING UPPER
1. Install the position indicator housing upper to the position indicator housing lower.

  Fig 28: Installing Position Indicator Housing Upper To Position Indicator Housing Lower
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NOTE: Fit the claws securely.
INSTALL POSITION INDICATOR HOUSING LOWER
1. Install the position indicator housing lower with the position indicator housing upper to the shift lever plate.

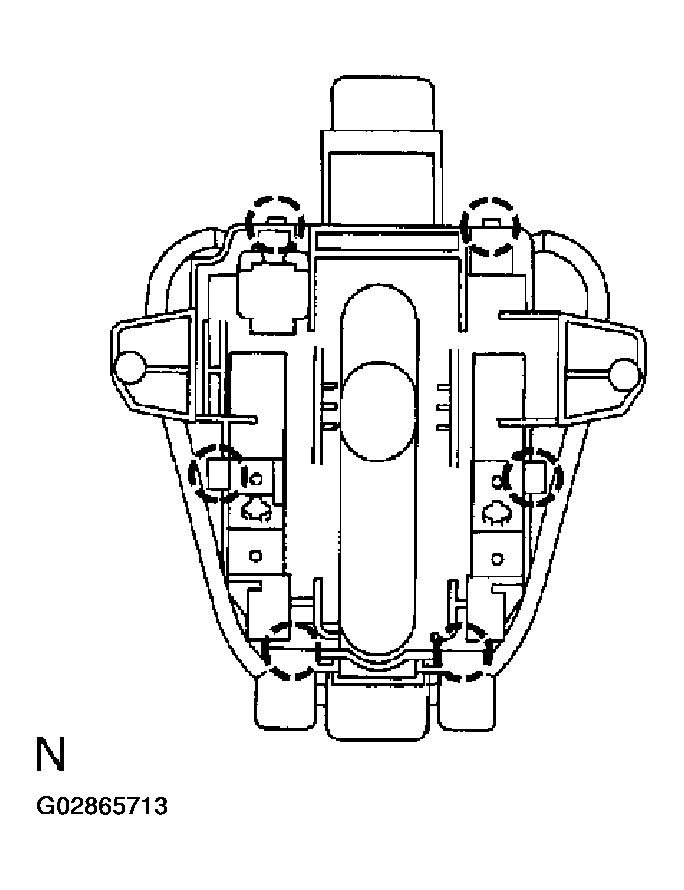

  Fig 29: Installing Position Indicator Housing Lower/Upper To Shift Lever Plate
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NOTE: Fit the claws securely.

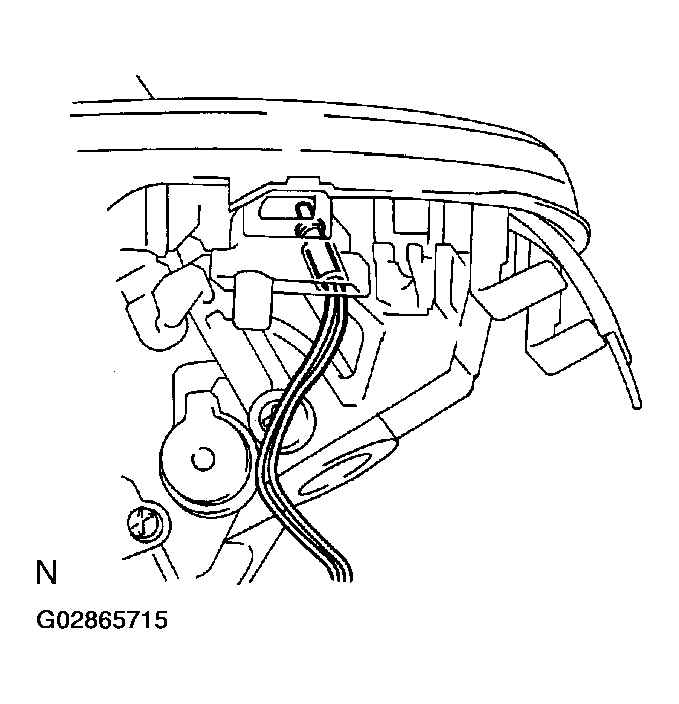

INSTALL INDICATOR LAMP WIRE SUB-ASSY
1. Install the indicator lamp wire sub-assy to the position indicator housing lower.

  Fig 30: Installing Indicator Lamp Wire Sub-Assy
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

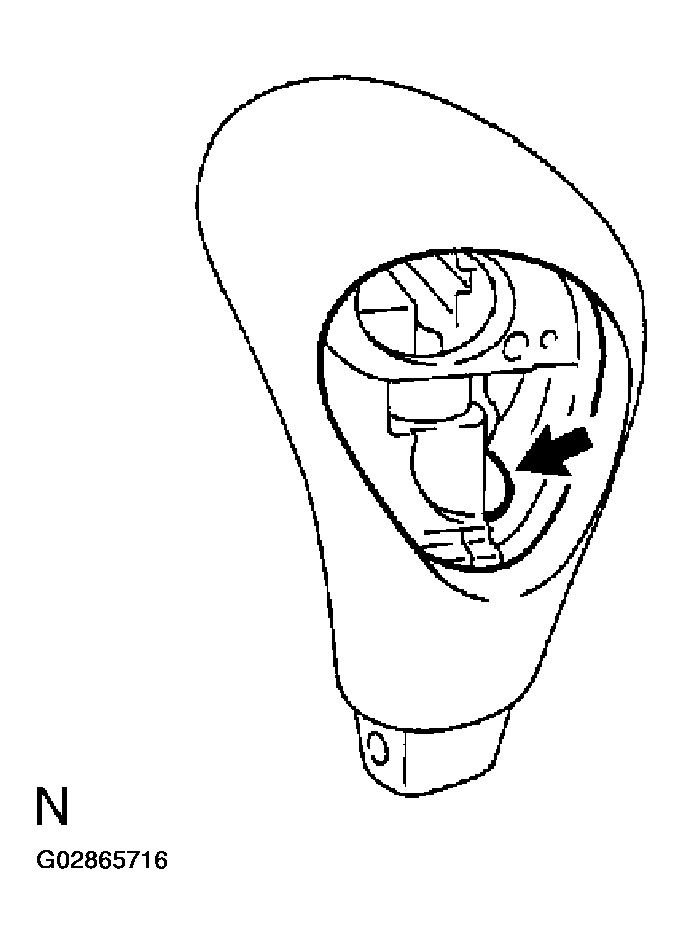

INSTALL TRANSMISSION CONTROL SWITCH
1. Insert the wire harness into the shift lever knob from the part shown by the arrow, and install the transmission control switch to the shift lever knob.

  Fig 31: Installing Transmission Control Switch To Shift Lever Knob
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL POSITION INDICATOR SLIDE COVER
1. Install the position indicator slide cover No. 2 to the shift lever knob.

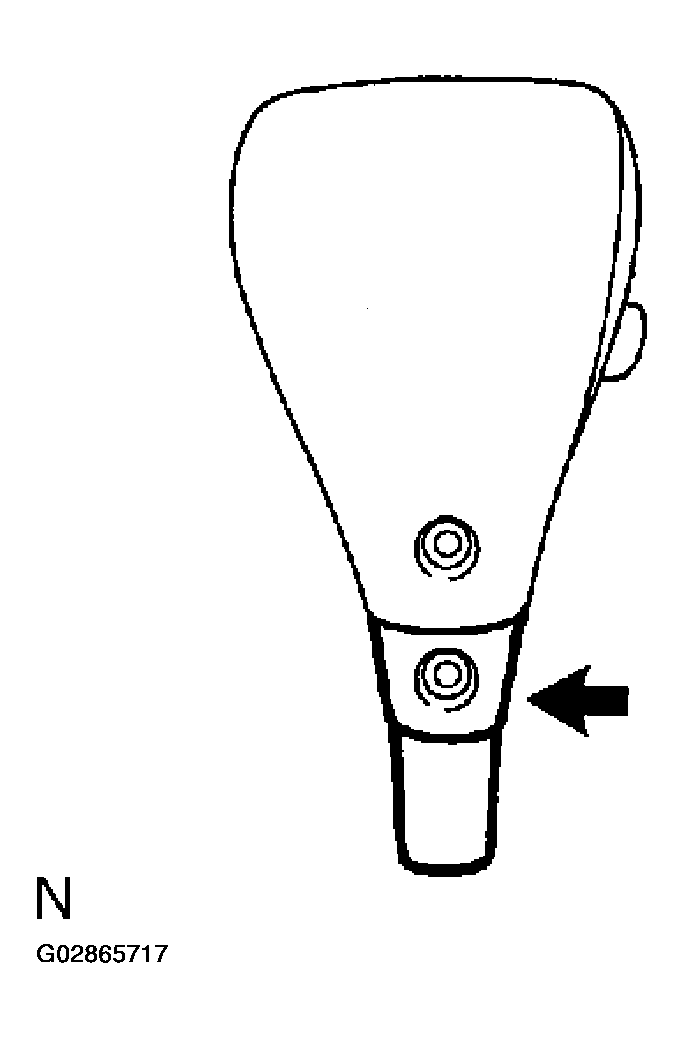

  Fig 32: Installing Position Indicator Slide Cover No 2 To Shift Lever Knob
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

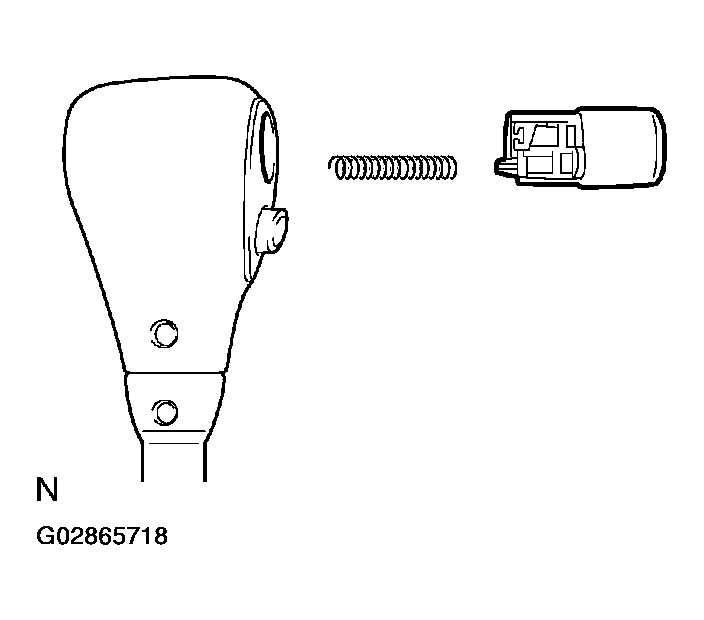

INSTALL SHIFT LEVER KNOB BUTTON
1. Apply MP grease to the spring and shift lever knob button.
2. Install the spring and shift lever knob button to the shift lever knob.

  Fig 33: Installing Spring & Shift Lever Knob Button
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

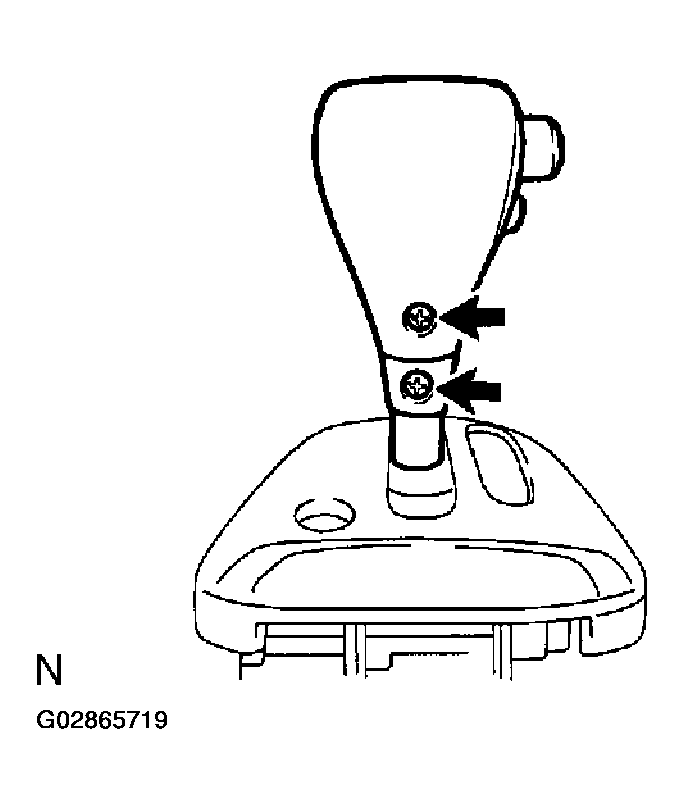

INSTALL FLOOR SHIFT LEVER KNOB SUB-ASSY
1. Install the shift lever knob with the 2 screws.

  Fig 34: Installing Shift Lever Knob
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

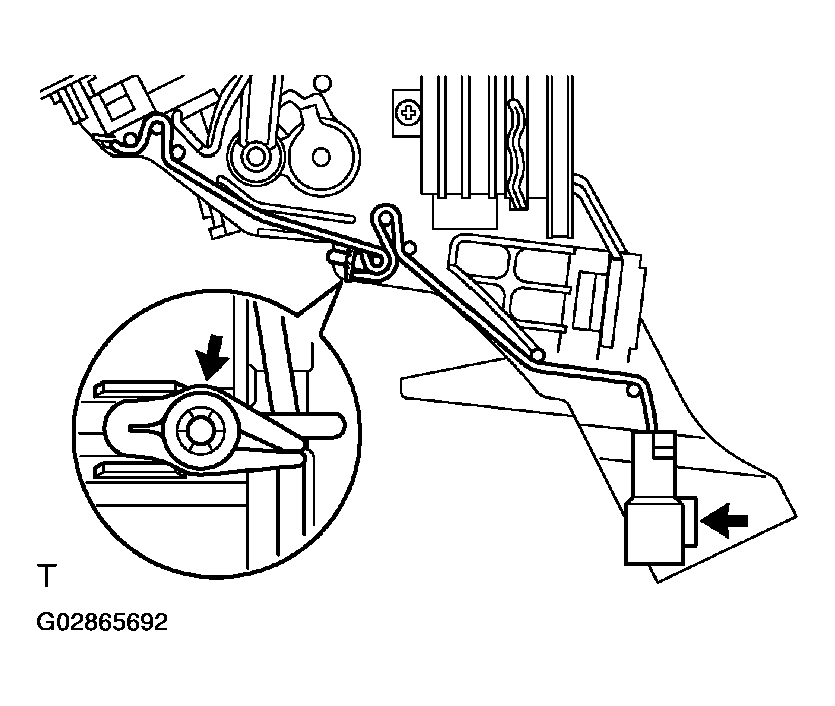

2. Connect the 2 wire harness of transmission control switch to the connector of indicator lamp wire.

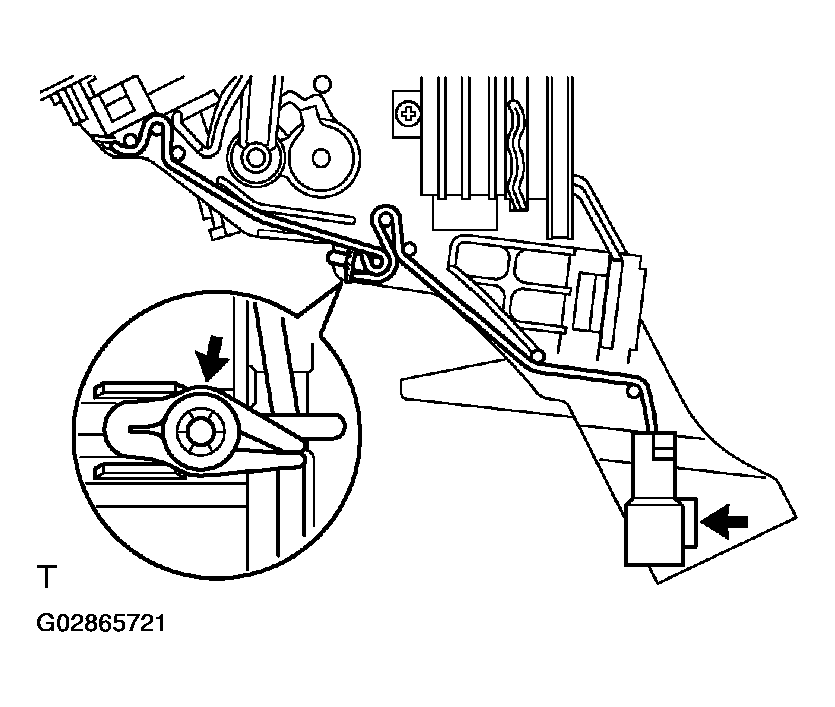

3. Install the wire harness with a new push nut to the shift lever plate as shown in the illustration.
4. Connect the indicator lamp wire connector to the shift lever plate

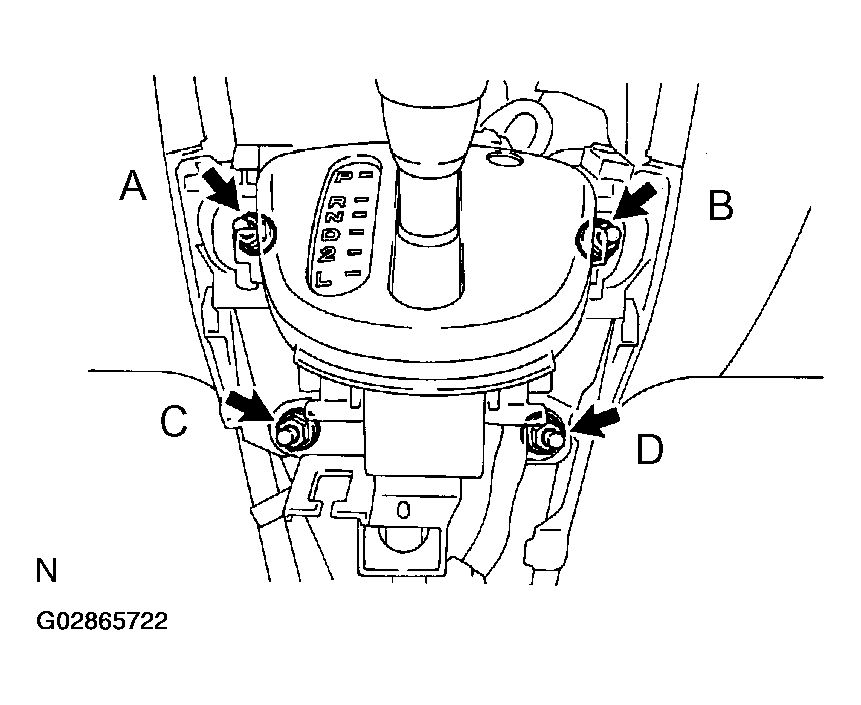

INSTALL FLOOR SHIFT ASSY
1. Install the floor shift assy with the 4 nuts.

  Fig 36: Installing Floor Shift Assy
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 11.8 N.m (122 kgf.cm, 9 ft.lbf)

  NOTE: Tighten them in the order, A, B, C and D.
2. Connect the shift lock control ECU connector and indicator lamp wire connector.
3. Connect the wire harness clamp.

  Fig 37: Connecting Shift Lock Control ECU & Indicator Lamp Connectors
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

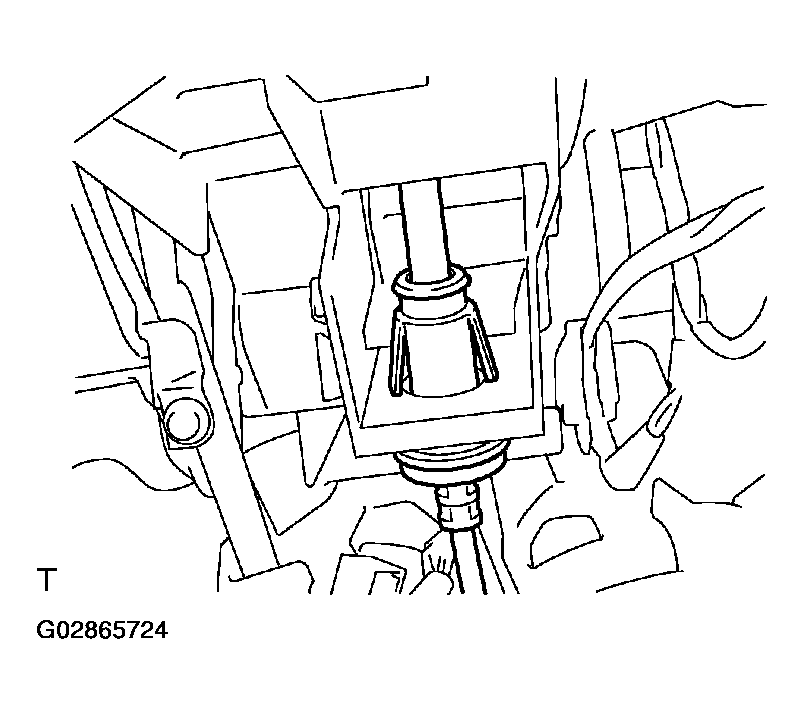

CONNECT FLOOR SHIFT CABLE TRANSMISSION CONTROL SHIFT
1. Install the control cable to the shift lever plate.

  Fig 38: Installing Control Cable To Shift Lever Plate
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

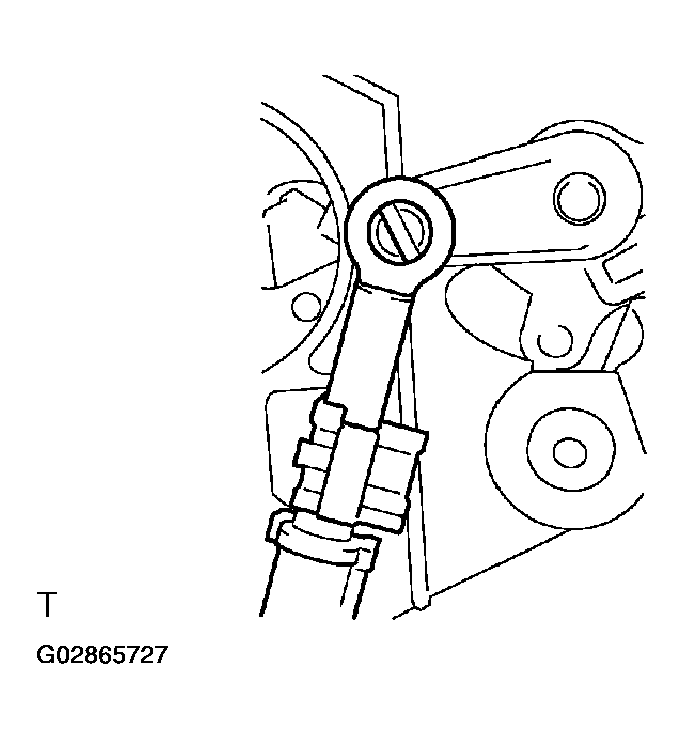

2. Connect the control cable end to the floor shift assy.

  Fig 39: Connecting Control Cable End To Floor Shift Assy
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NOTE: Install it with the uneven surface facing up.
CONNECT FLOOR SHIFT PARKING LOCK CABLE ASSY
1. Pass the parking lock cable through the hole of shift lever plate.
2. Insert the slide cap into the shift lever plate.

  Fig 40: Installing Parking Lock Cable Through Hole Of Shift Lever Plate
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

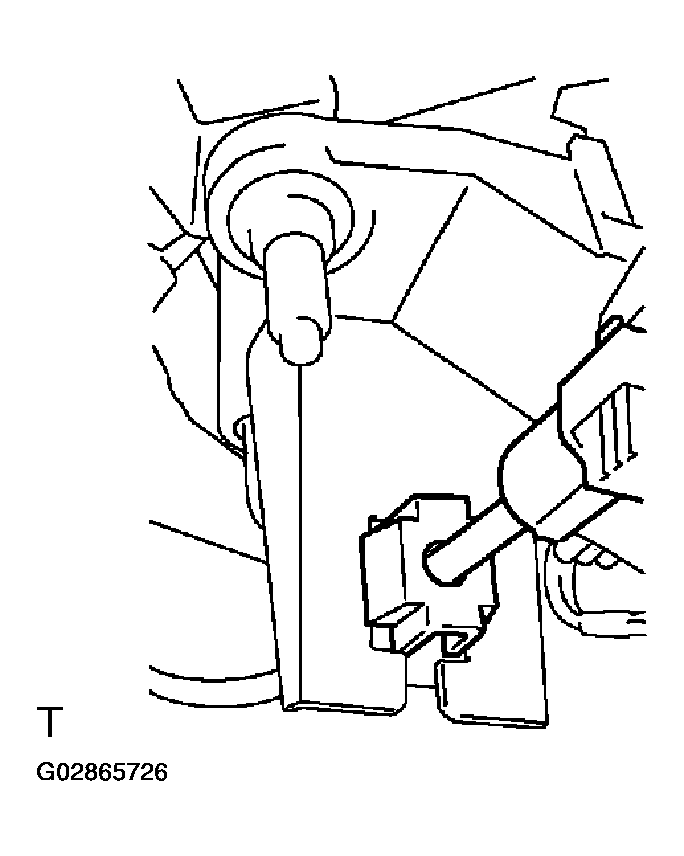

3. Apply MP grease to the shift lock release link.
4. Insert the lever pin into the hole in the cable end.

  Fig 41: Inserting Lever Pin Into Hole In Cable End
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
CHECK KEY INTERLOCK OPERATION (See ON-VEHICLE INSPECTION )
CHECK SHIFT LOCK OPERATION (See ON-VEHICLE INSPECTION )
CHECK SHIFT LOCK RELEASE BUTTON OPERATION (See ON-VEHICLE INSPECTION )
