Ecu & Combination Switch

WARNING: This page is about a different variant/trim than selected.

For ECU and combination switch terminal resistance values, see illustration. See Fig 1.

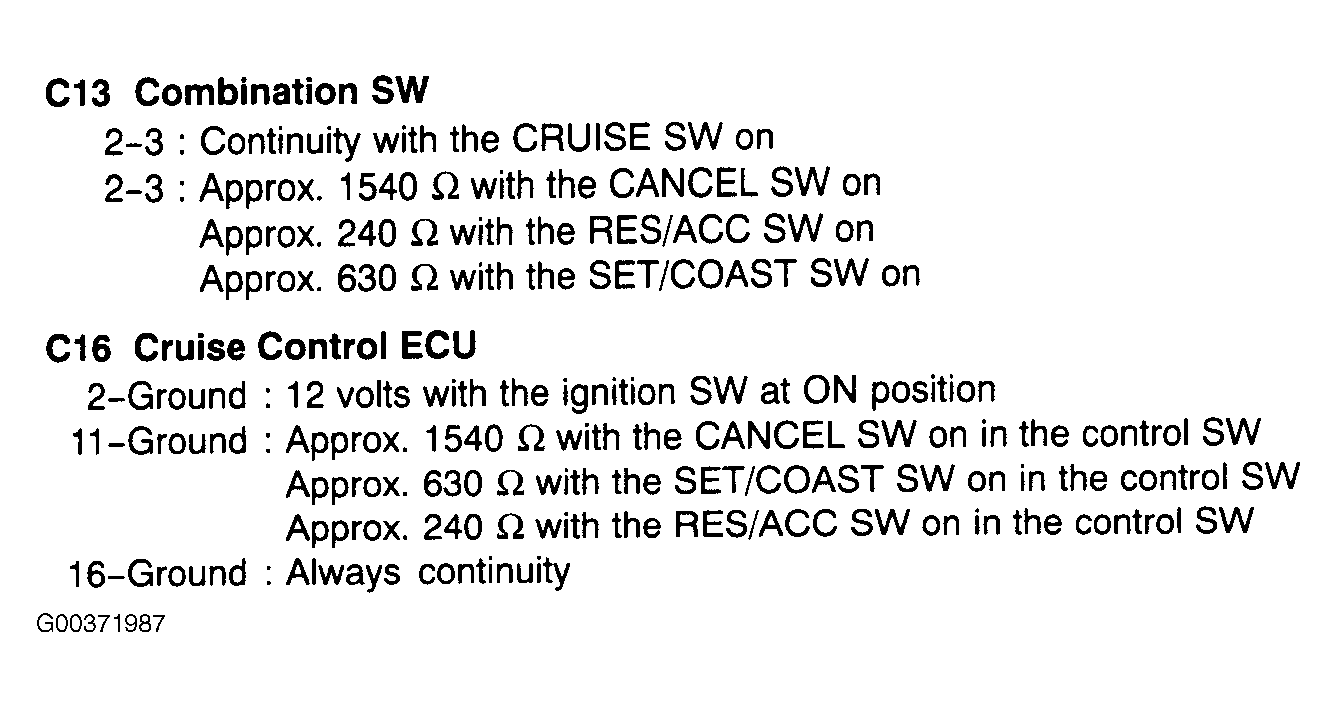

Fig 1: Identifying ECU & Combination Switch Terminal Resistance Values
G00371987Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
