Diagnostic Trouble Code Chart

WARNING: This page is about a different variant/trim than selected.

If a DTC is displayed during the DTC check, check the circuit listed in the table below and proceed to the page given.

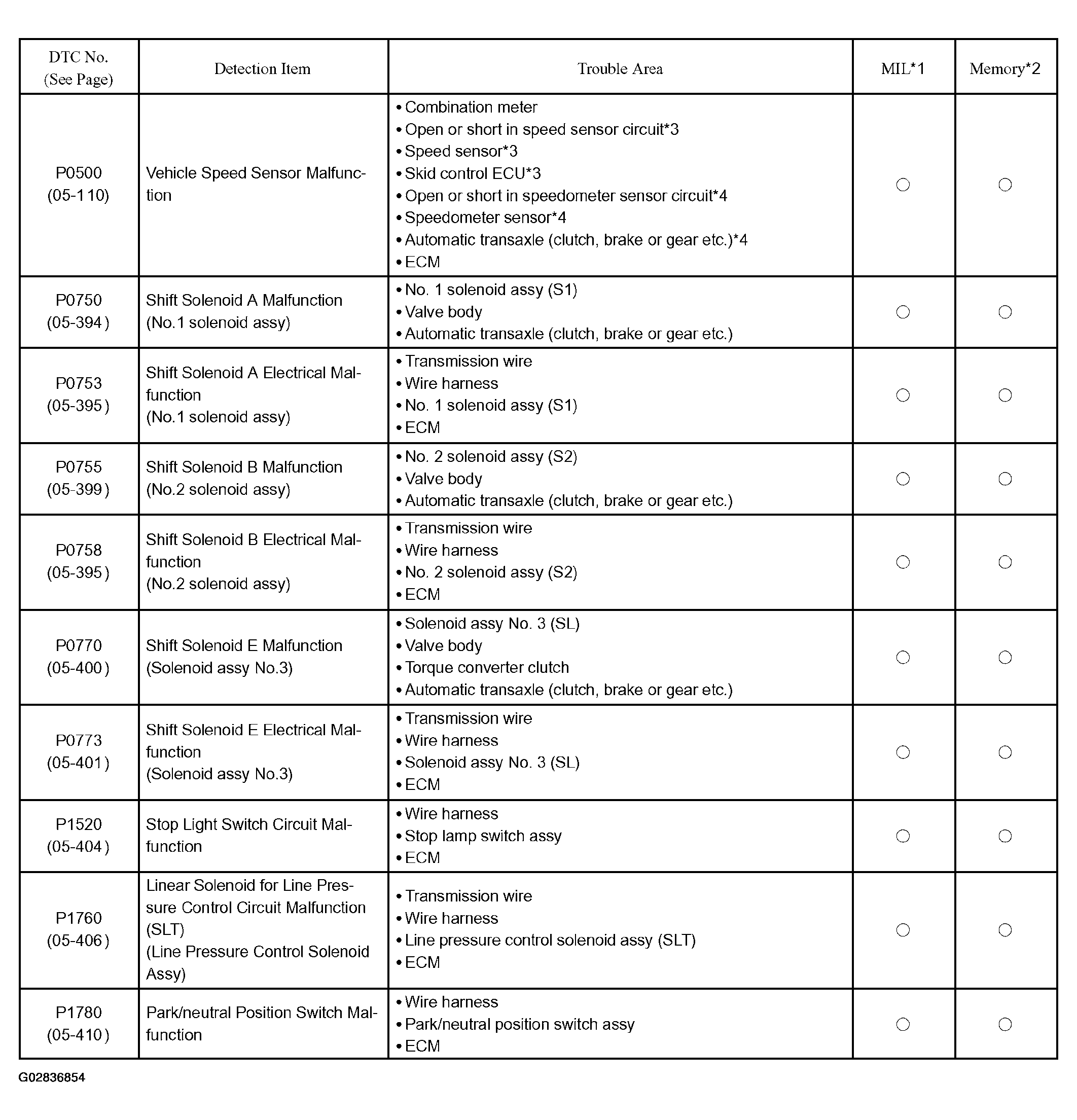

Fig 1: Identifying Diagnostic Trouble Code Chart

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NOTE:

The following footnotes are for use with Fig 1.

^* 1: "O" mark means MIL light up. "x" mark means MIL does not light up.
^* 2: "O" mark means ECM memorizes the malfunction code if the ECM detects the DTC detection condition.
^* 3: w/ABS
^* 4: w/o ABS
This DTC may be output when the clutch, brake and gear components etc. inside the automatic transaxle are damaged.
