4. Catalyst Monitor (A/F Sensor Equipped): Notes

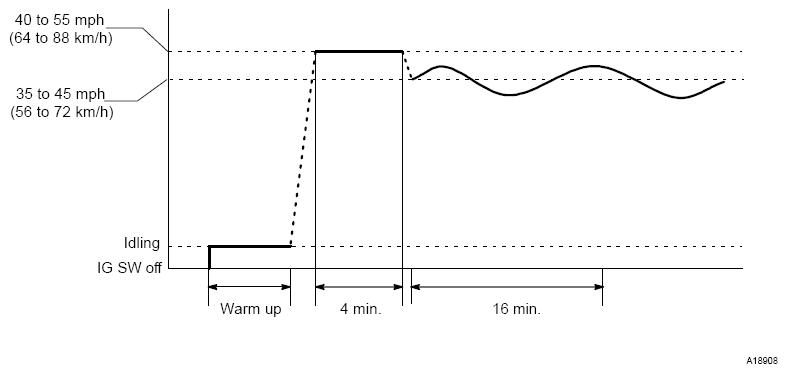

Fig 1: Catalyst Monitor (A/F Sensor Equipped) Drive Pattern
G06928206Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
