Section 249 (Charging System - Generators & Regulators - 5VZ-FE): Generator: Components

WARNING: This page is about a different car, the 2002 Toyota Tundra. However, it is still accessible from the selected car via links, so may be relevant.

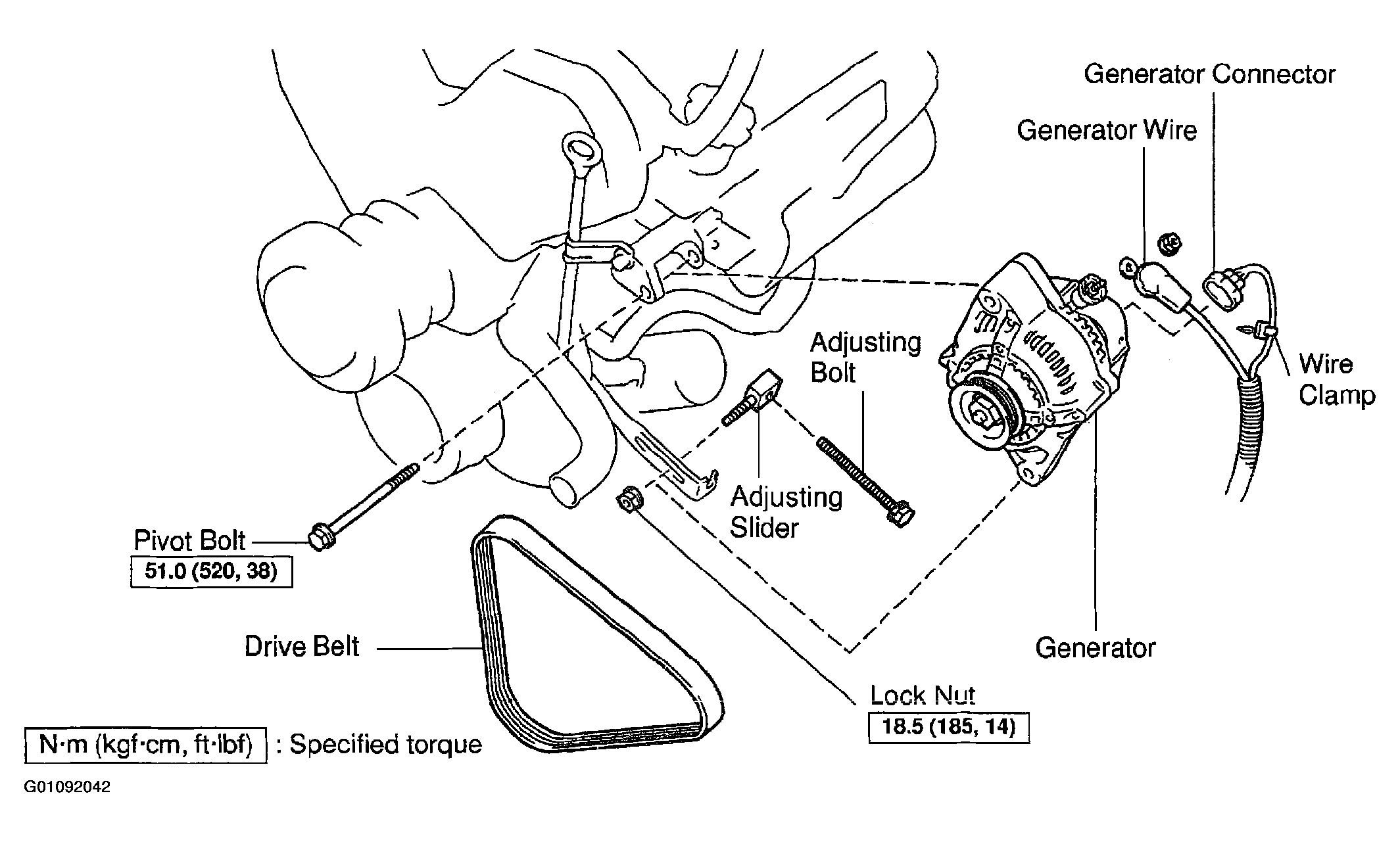

Fig 1: Displaying Generator Components (1 Of 2)
G01092042Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

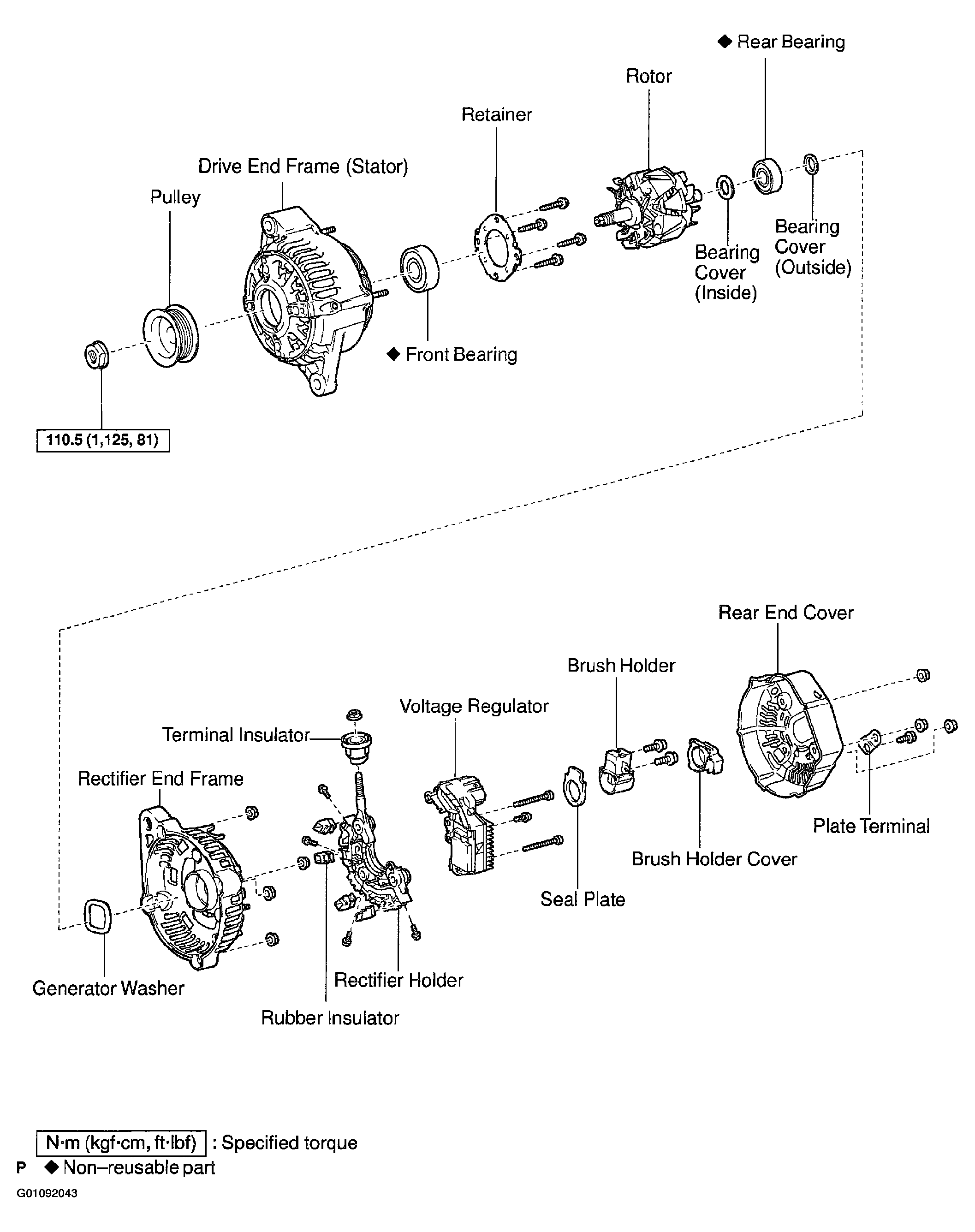

Fig 2: Displaying Generator Components (2 Of 2)
G01092043Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
