Section 249 (Charging System - Generators & Regulators - 5VZ-FE): Generator: Removal
WARNING: This page is about a different car, the 2002 Toyota Tundra. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect Wiring From Generator
- Disconnect the connector from the generator.
- Remove the nut and disconnect the wire from the generator.
- Disconnect the cord clamp from the generator.
- Remove Generator Drive Belt

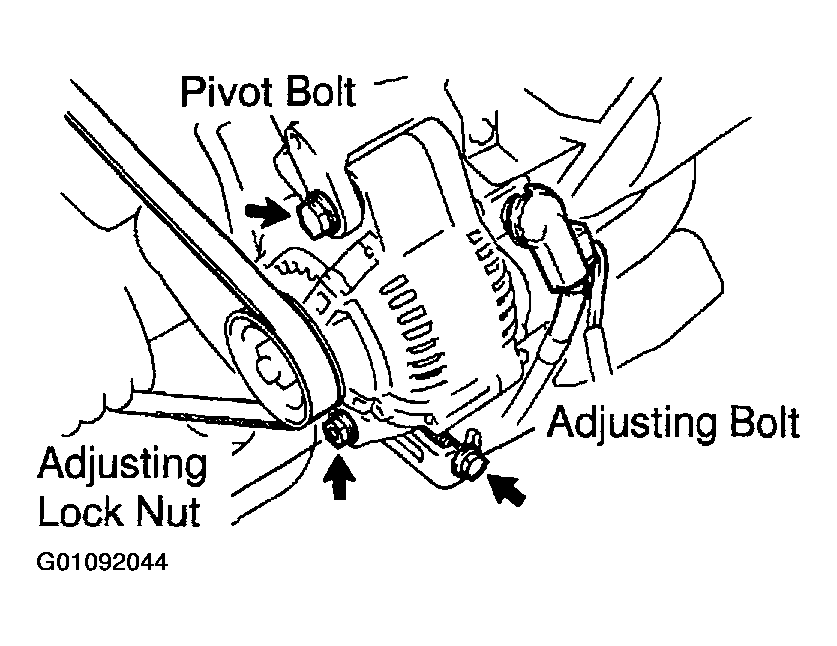

- Loosen the adjust lock nut, adjusting bolt and pivot bolt.
- Remove the drive belt.
- Remove Generator
- Remove the pivot bolt, adjusting lock nut, adjusting bolt and adjusting slider.
- Remove the generator.
