Headlight System: Components

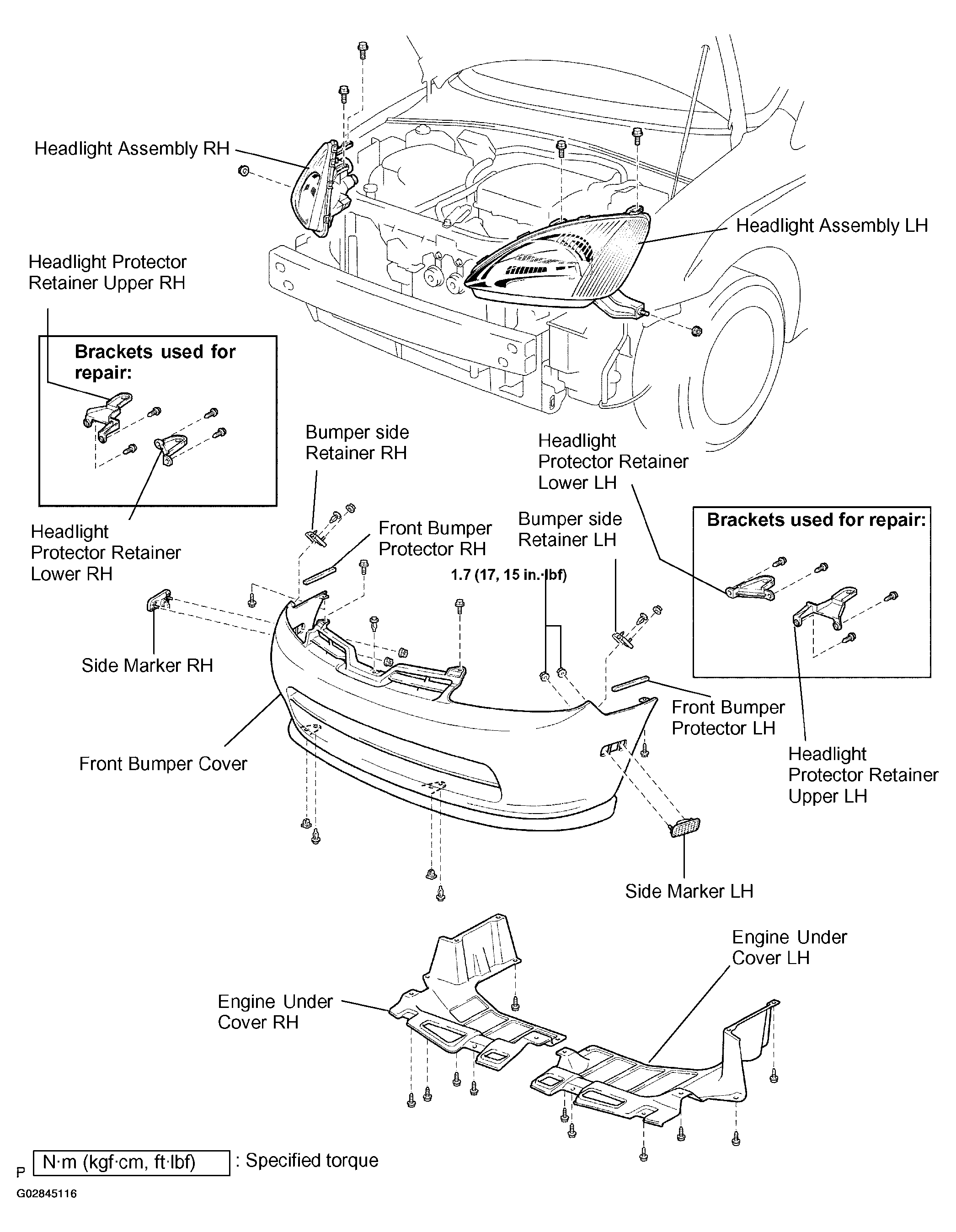

Fig 1: Identifying Components Of Headlight

G02845116

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
