Wireless Door Lock Control System: Location

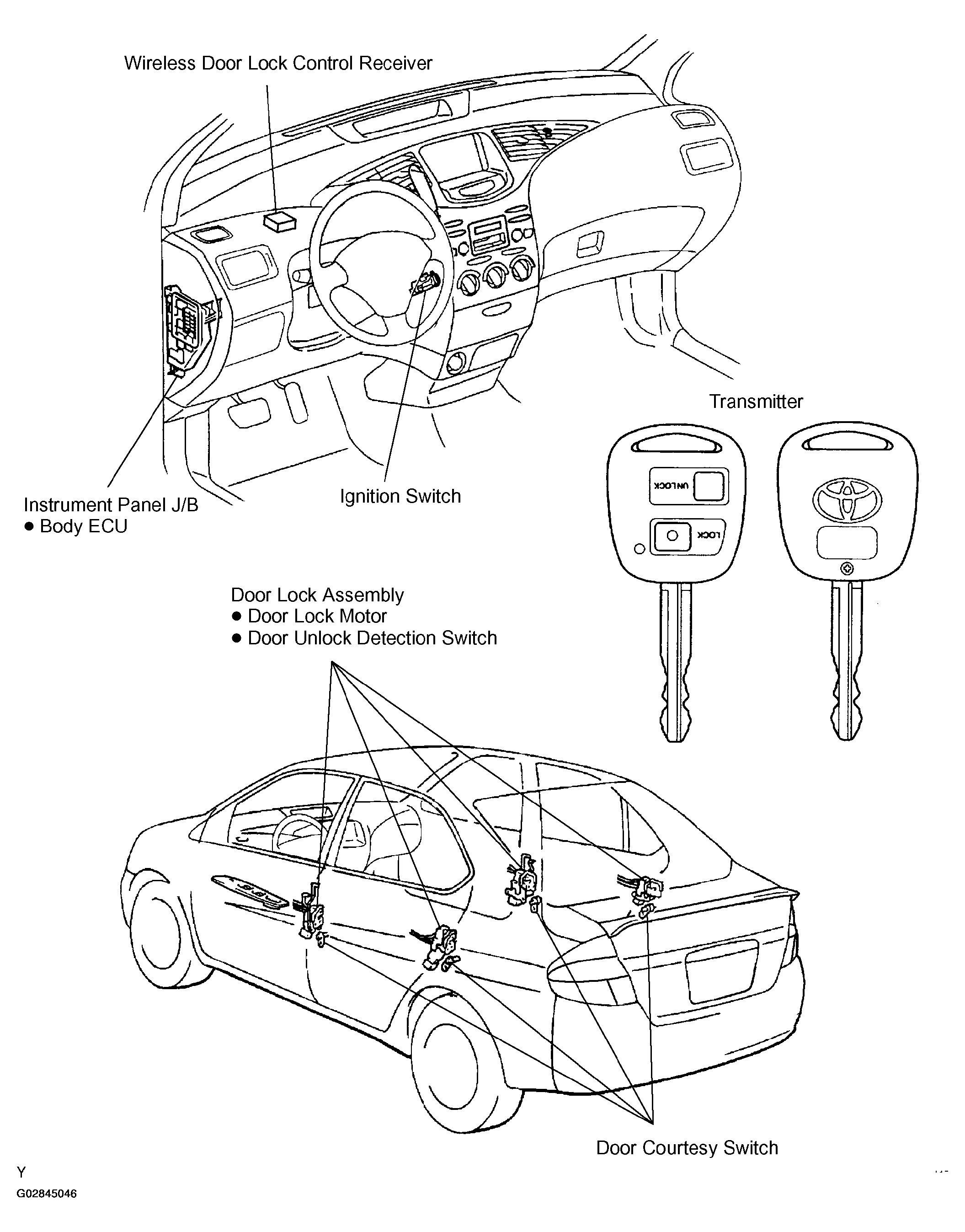

Fig 1: Identifying Wireless Door Lock Control System Component Locations
G02845046Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
