Ignition Switch & Key Unlock Warning System: Inspection

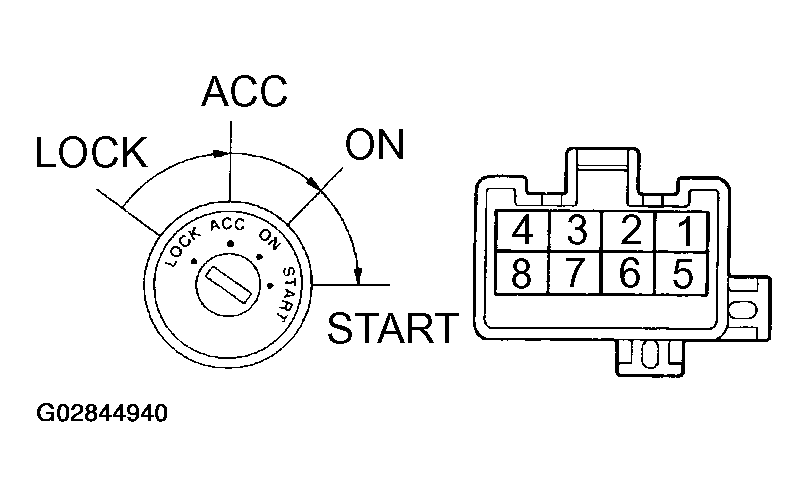

- INSPECT IGNITION SWITCH CONTINUITY IGNITION SWITCH CONTINUITY
Switch Position Tester Connection Specified Condition LOCK - No Continuity ACC 2 - 3 Continuity ON 2 - 3 - 4 6 - 7 Continuity START 1 - 2 - 4 6 - 7 - 8 Continuity If continuity is not as specified, replace the switch.

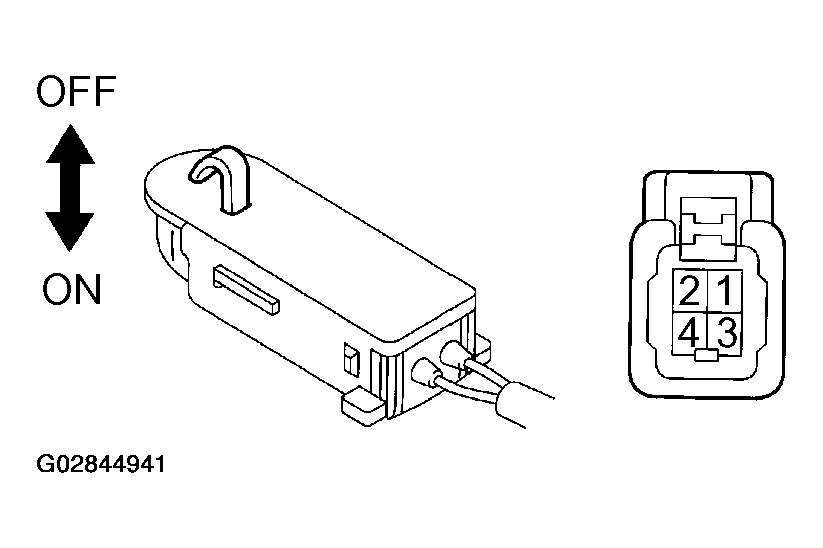

- INSPECT KEY UNLOCK WARNING SWITCH CONTINUITY
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
KEY UNLOCK WARNING SWITCH CONTINUITYSwitch Position Tester Connection Specified Condition OFF (Key removed) - No Continuity ON (Key set) 1 - 2 Continuity If continuity is not as specified, replace the switch.

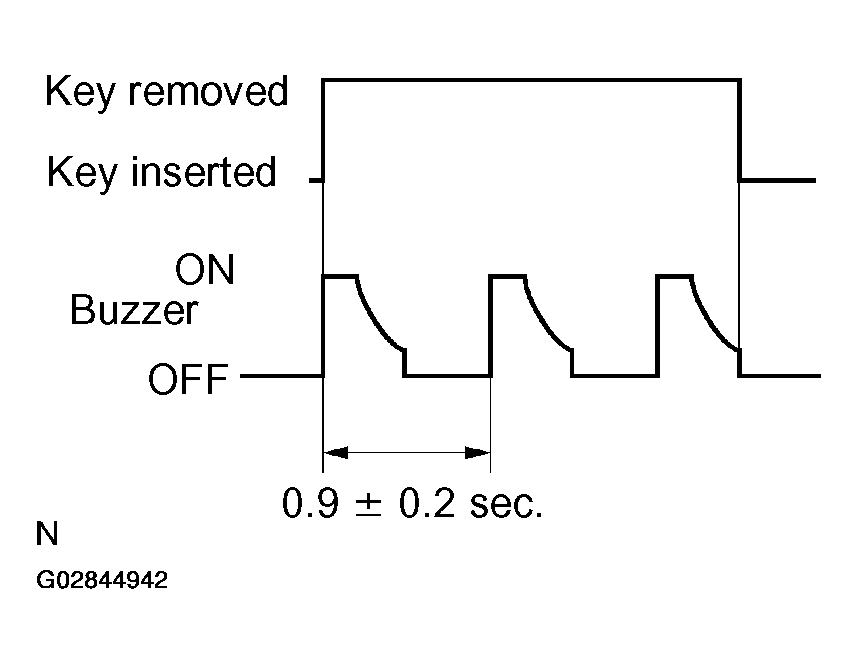

- INSPECT KEY UNLOCK WARNING BUZZER
Check that the buzzer sound when driver's door is opened and key inserted.
If operation is not as specified, replace the combination meter. (See COMBINATION METER )
