Engine Torque and Service Data

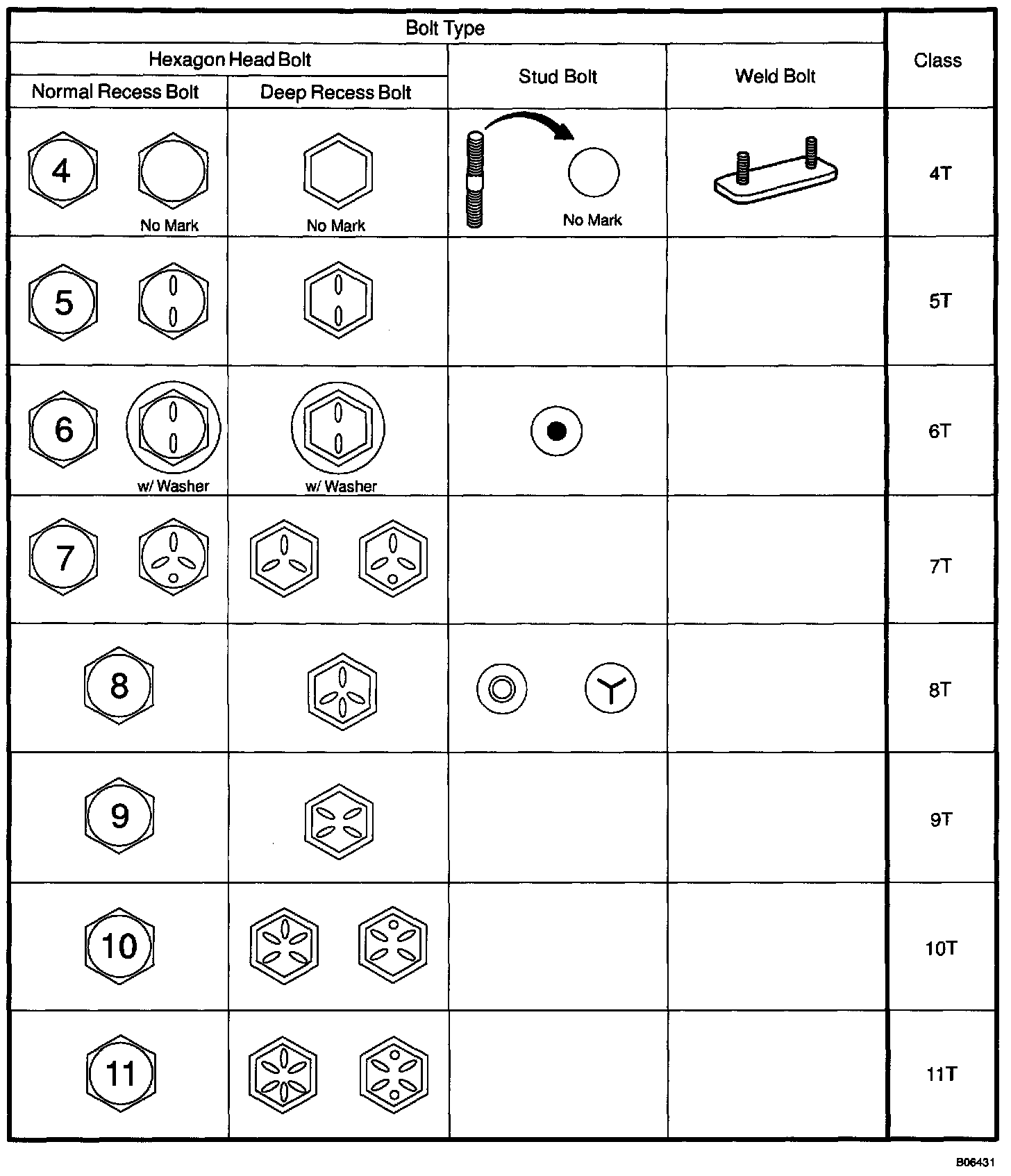

STANDARD BOLT HOW TO DETERMINE BOLT STRENGTH:

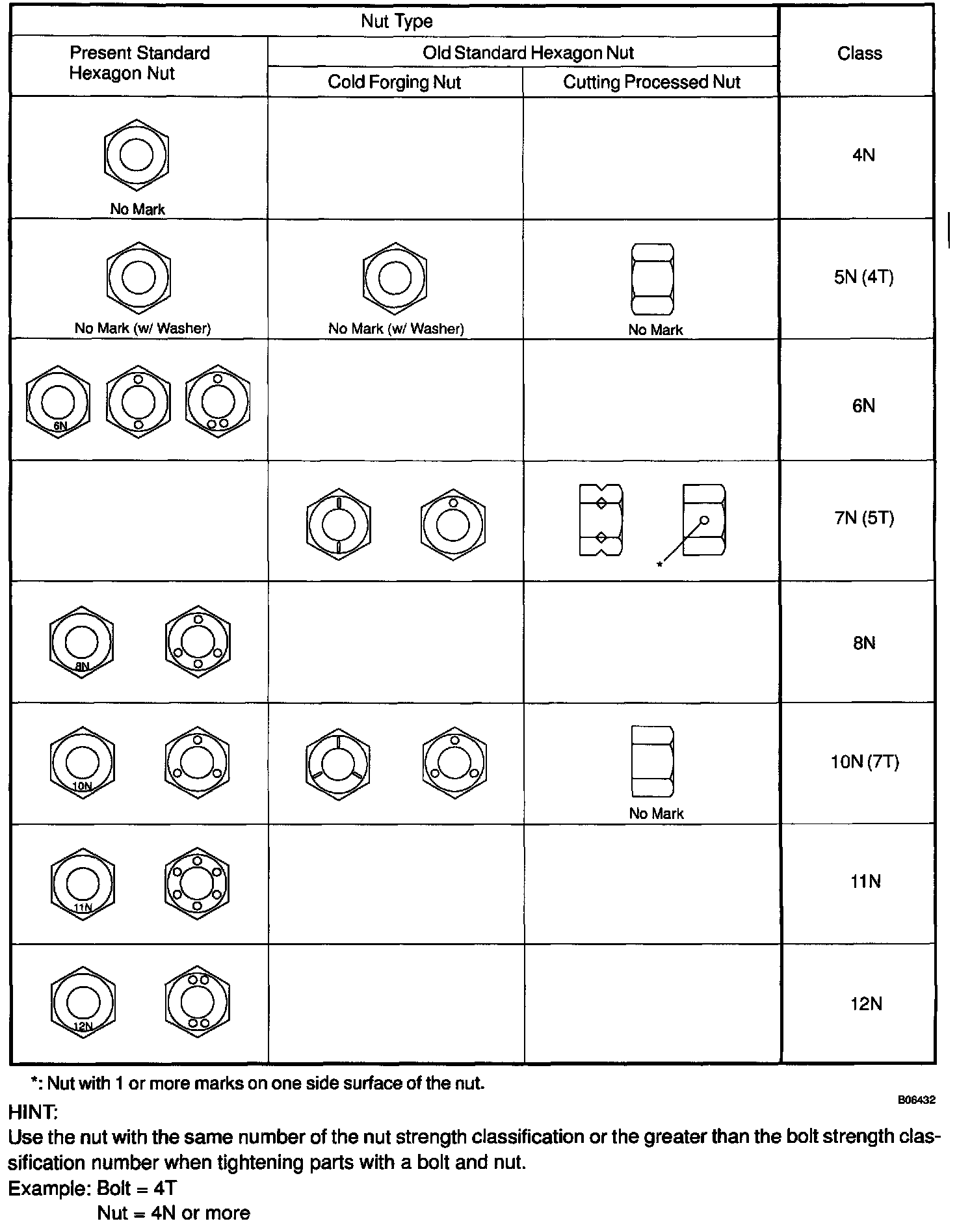

HOW TO DETERMINE NUT STRENGTH:

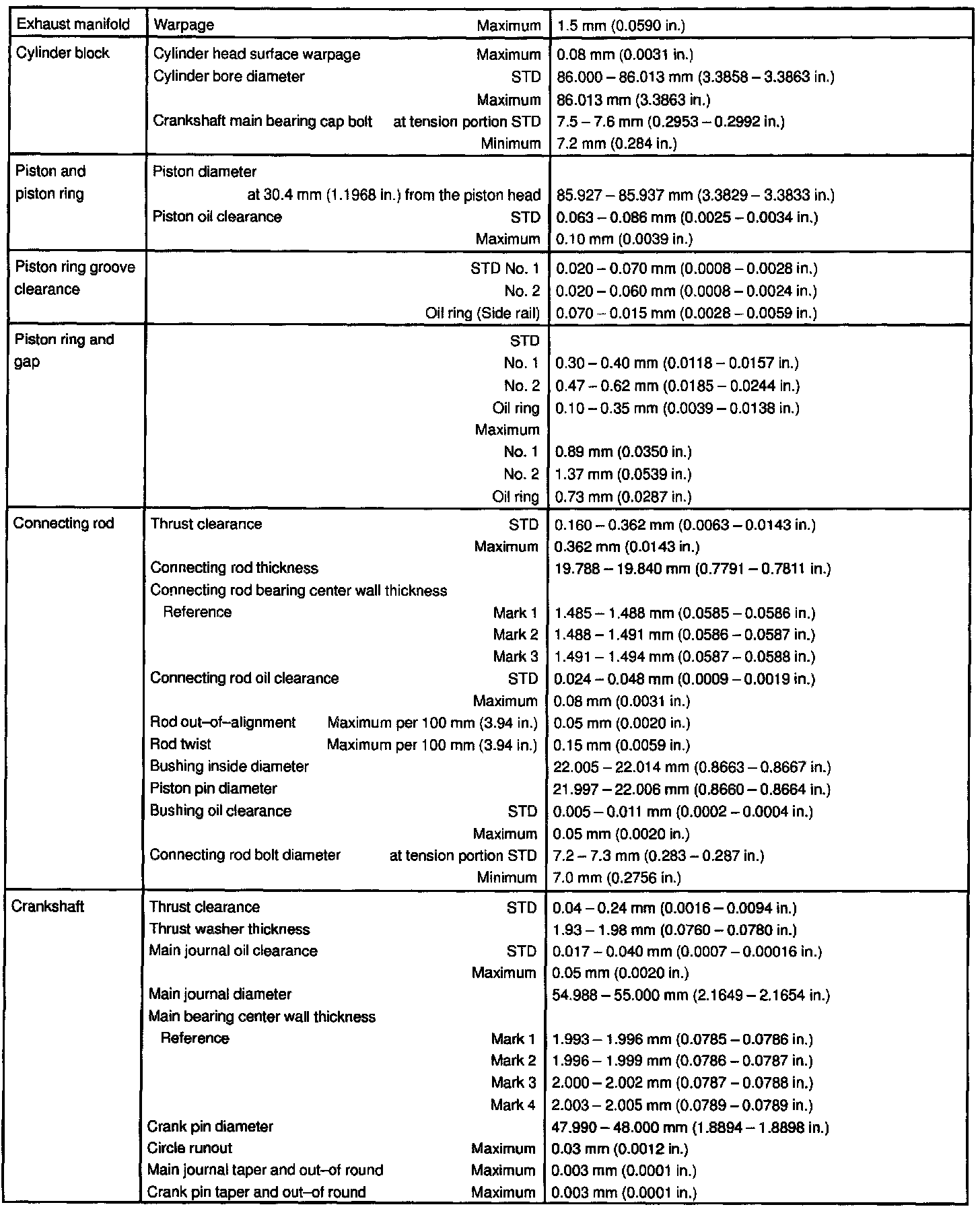

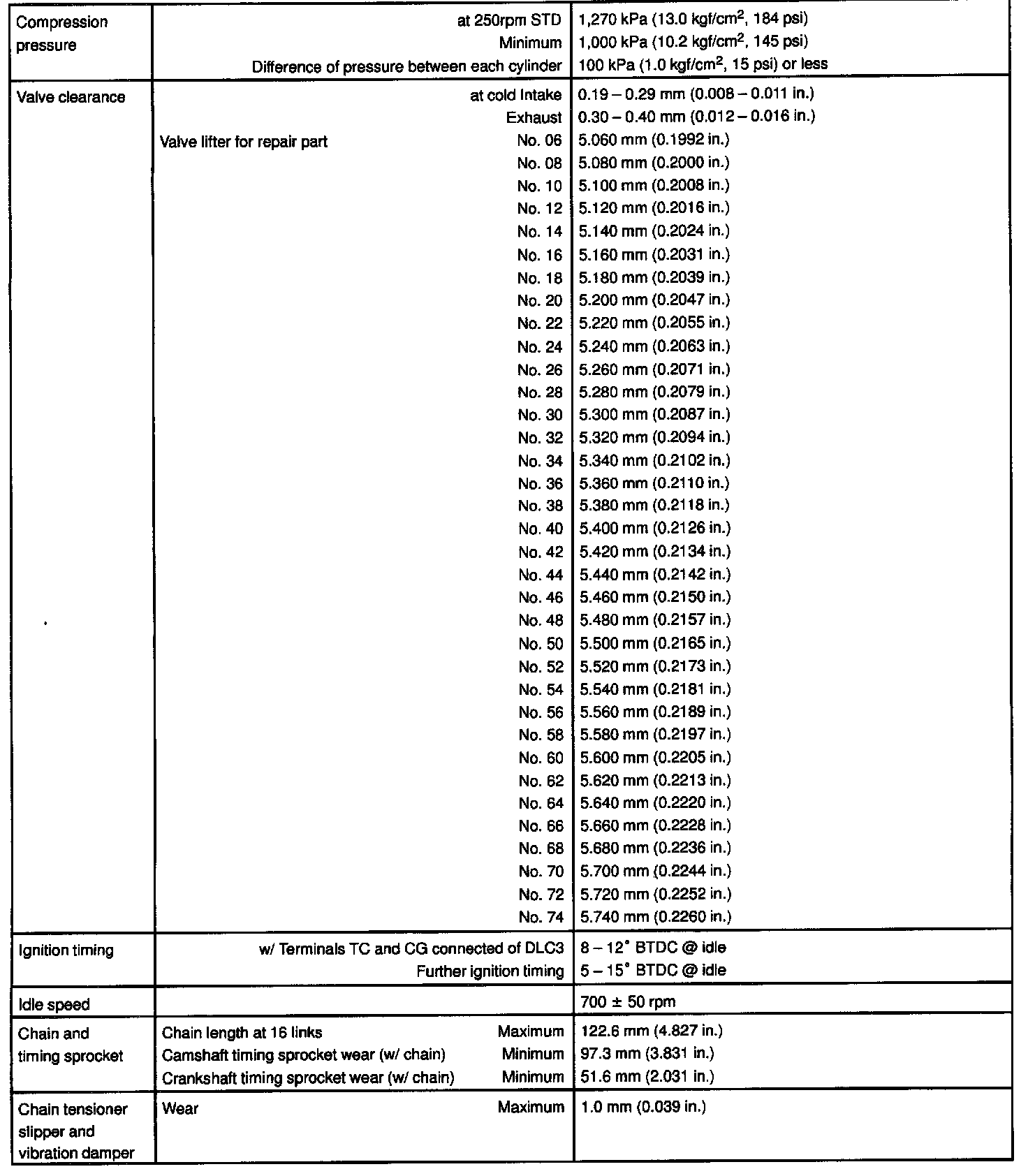

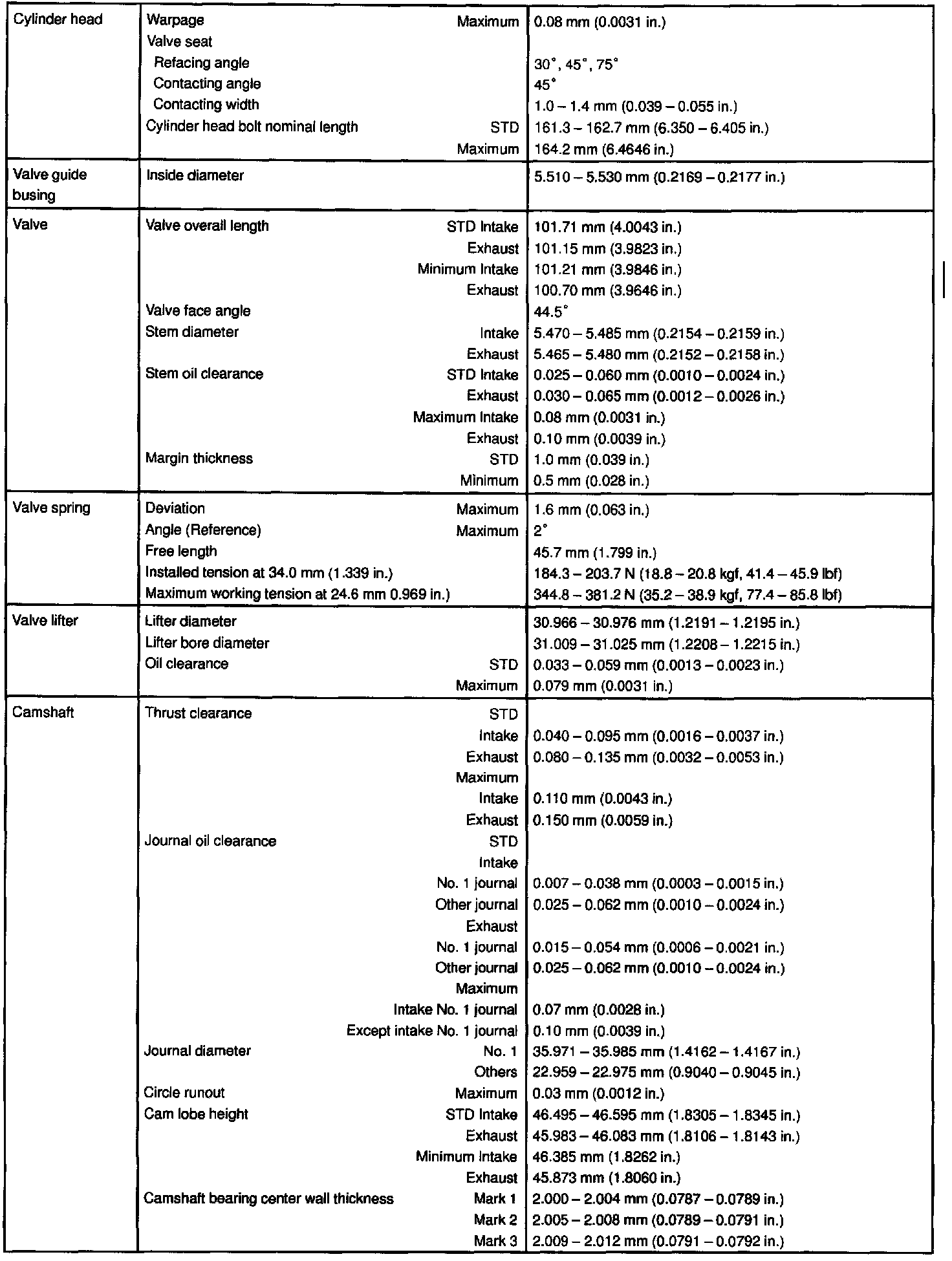

ENGINE MECHANICAL SERVICE DATA:

ENGINE MECHANICAL SERVICE DATA:

ENGINE MECHANICAL SERVICE DATA:

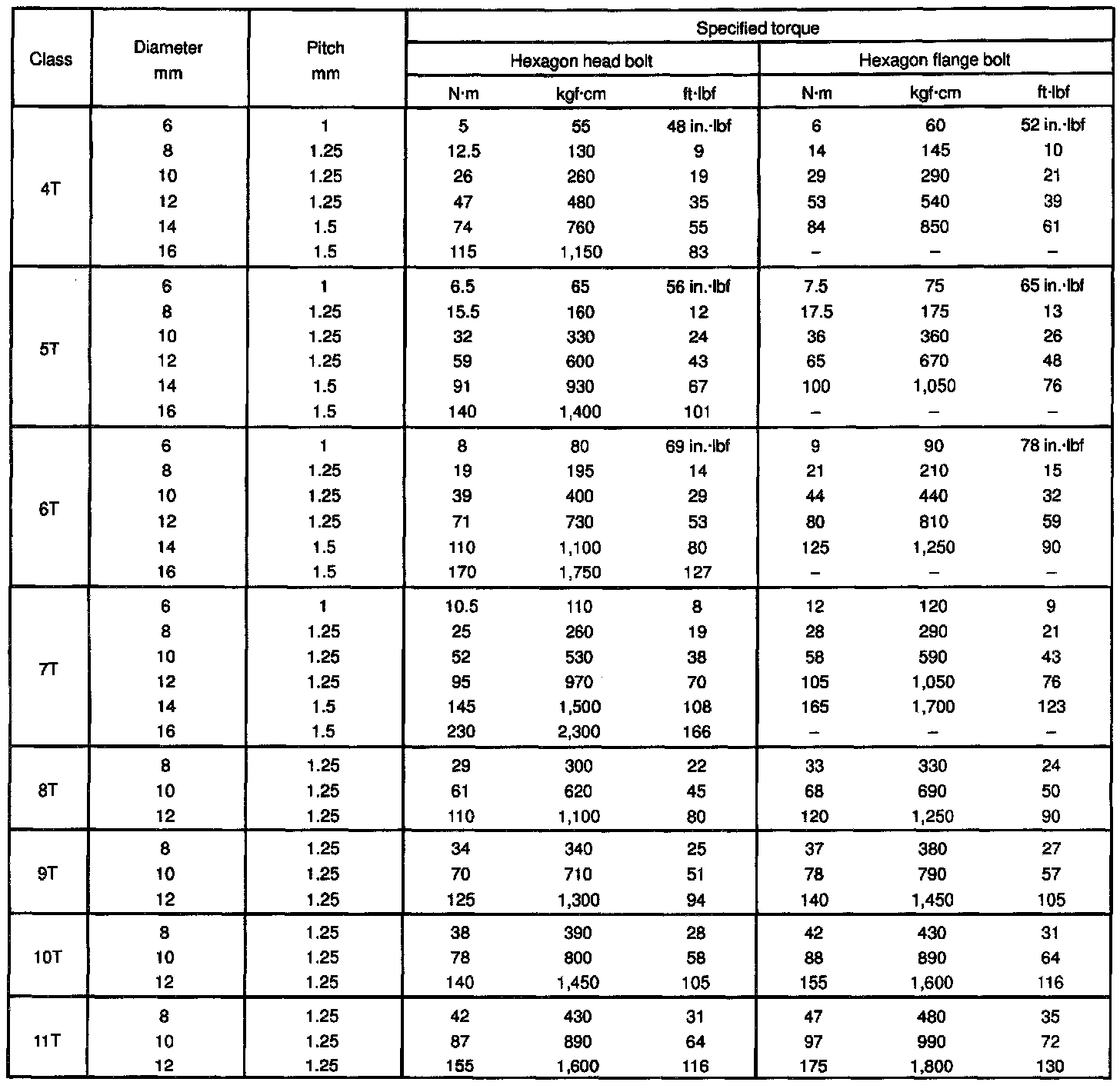

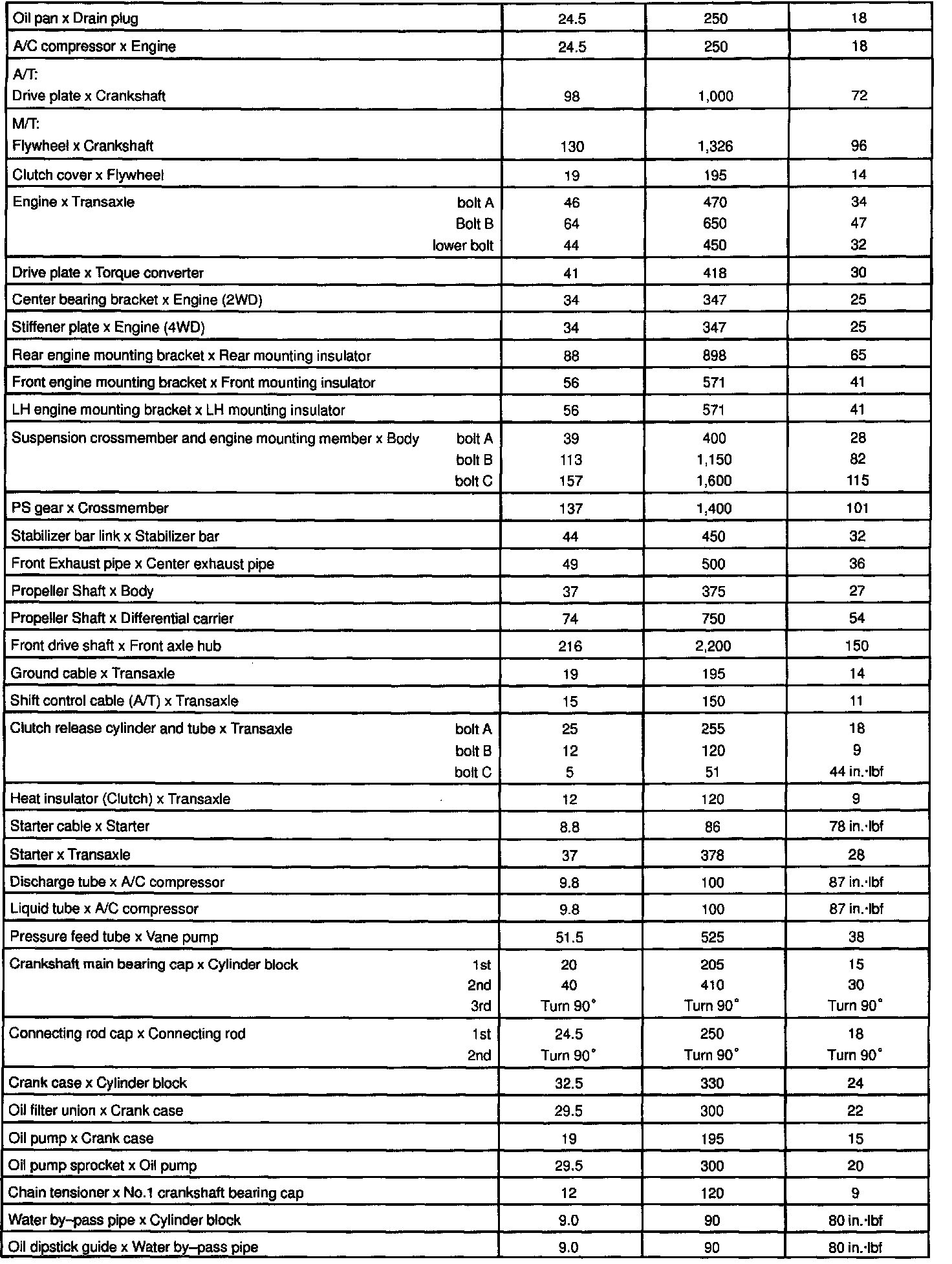

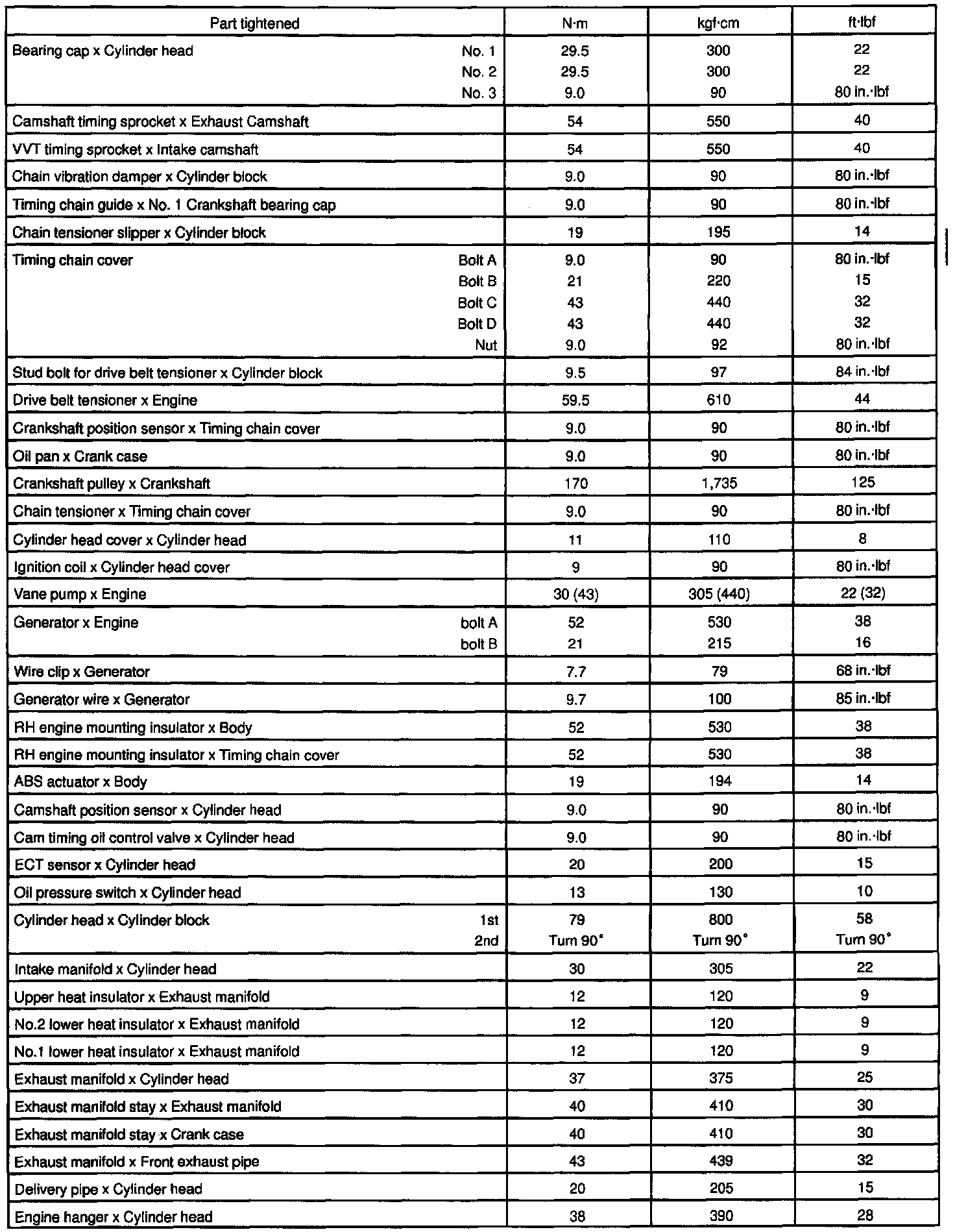

TORQUE SPECIFICATION:

TORQUE SPECIFICATION:

TORQUE SPECIFICATION:
