Engine Immobilizer System: Location

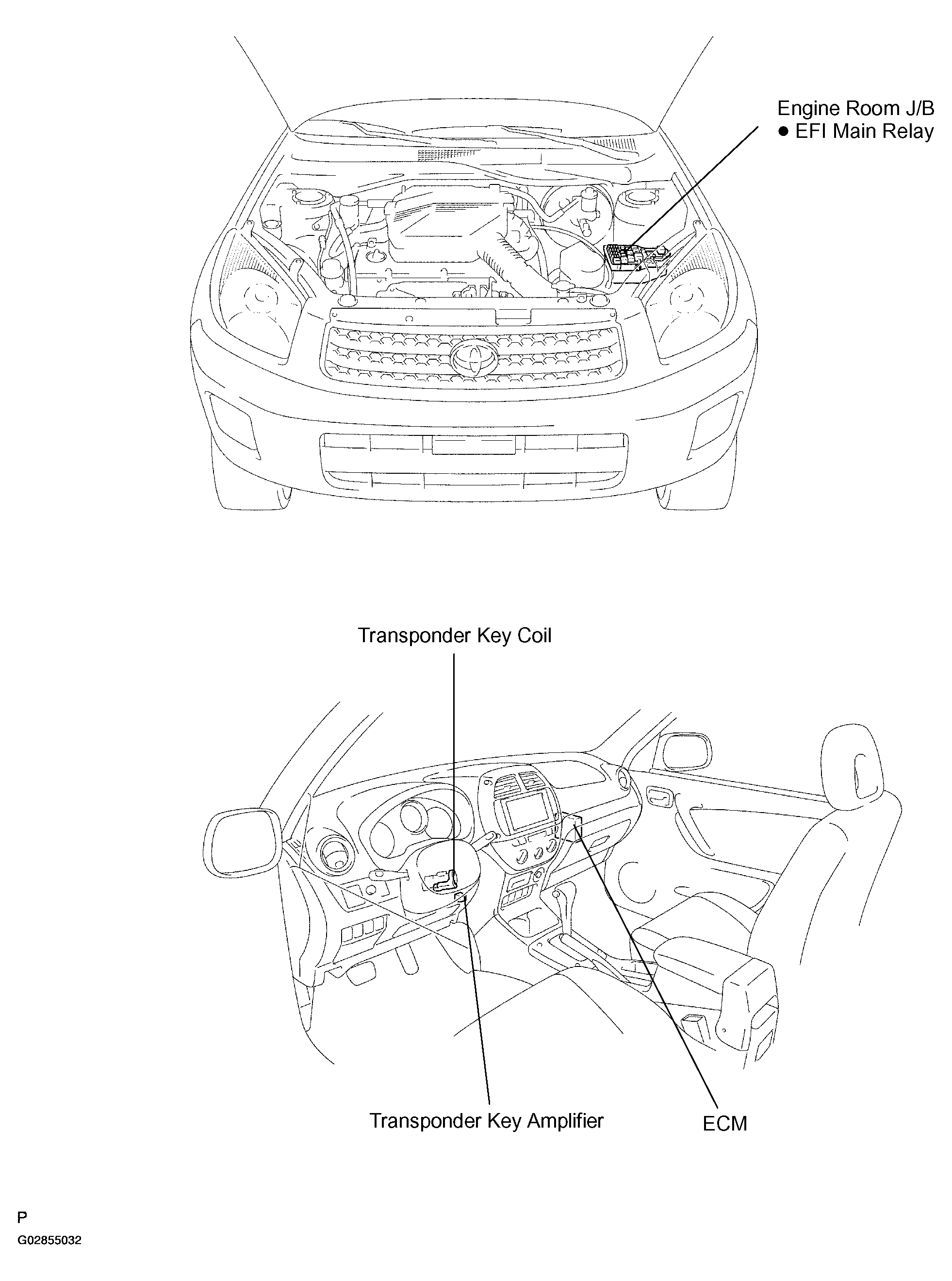

Fig 1: Locating Engine Immobilizer System Components
G02855032Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
