Fuel EVAP System Test (ECHO)

NOTE: Manufacturer provides testing information for testing airtightness of fuel tank and components along with testing of charcoal canister and fuel EVAP system.

For fuel EVAP system test, see Fig 1-Fig 6 .

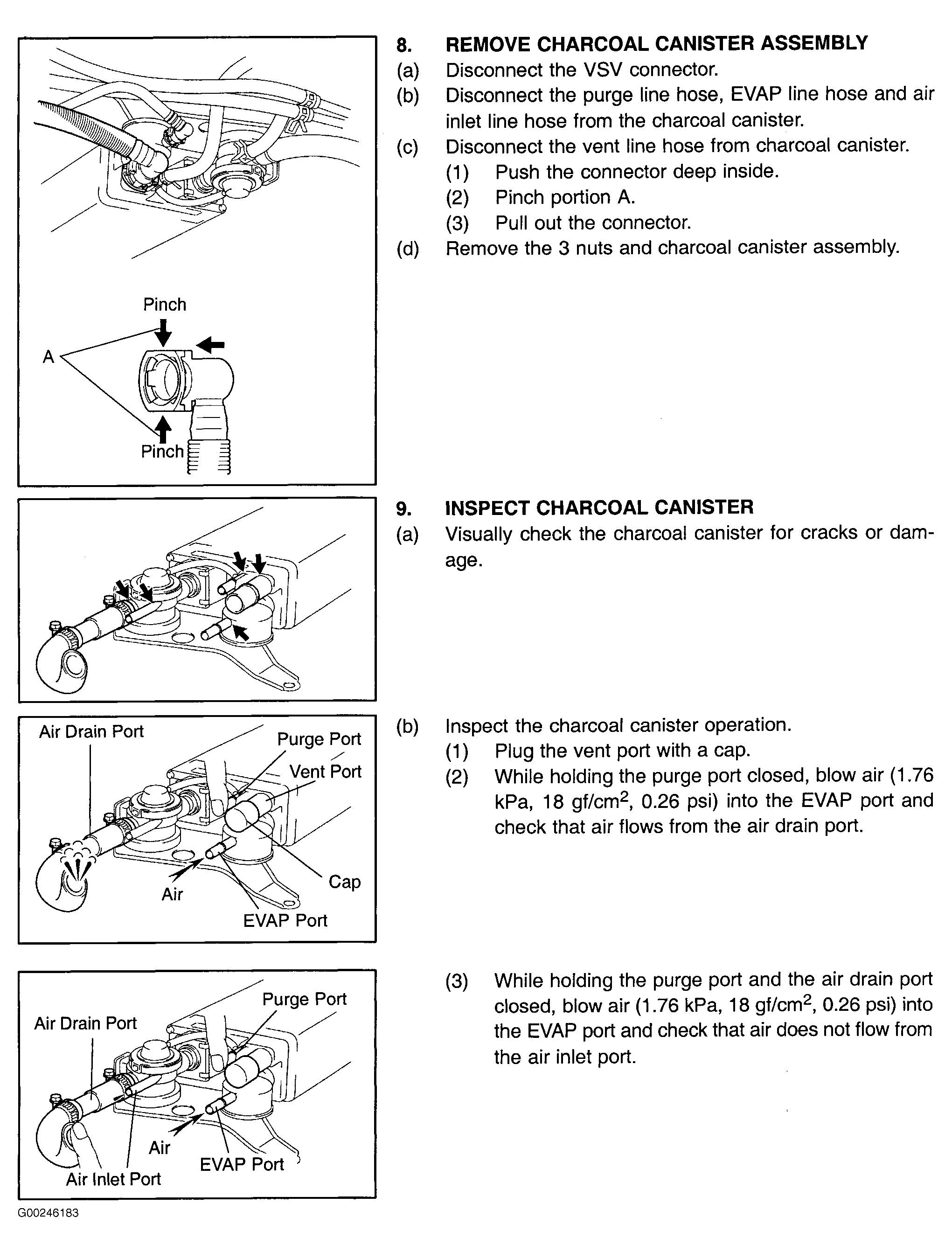

Fig 1: Testing Fuel EVAP System - 1 Of 6 (ECHO)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

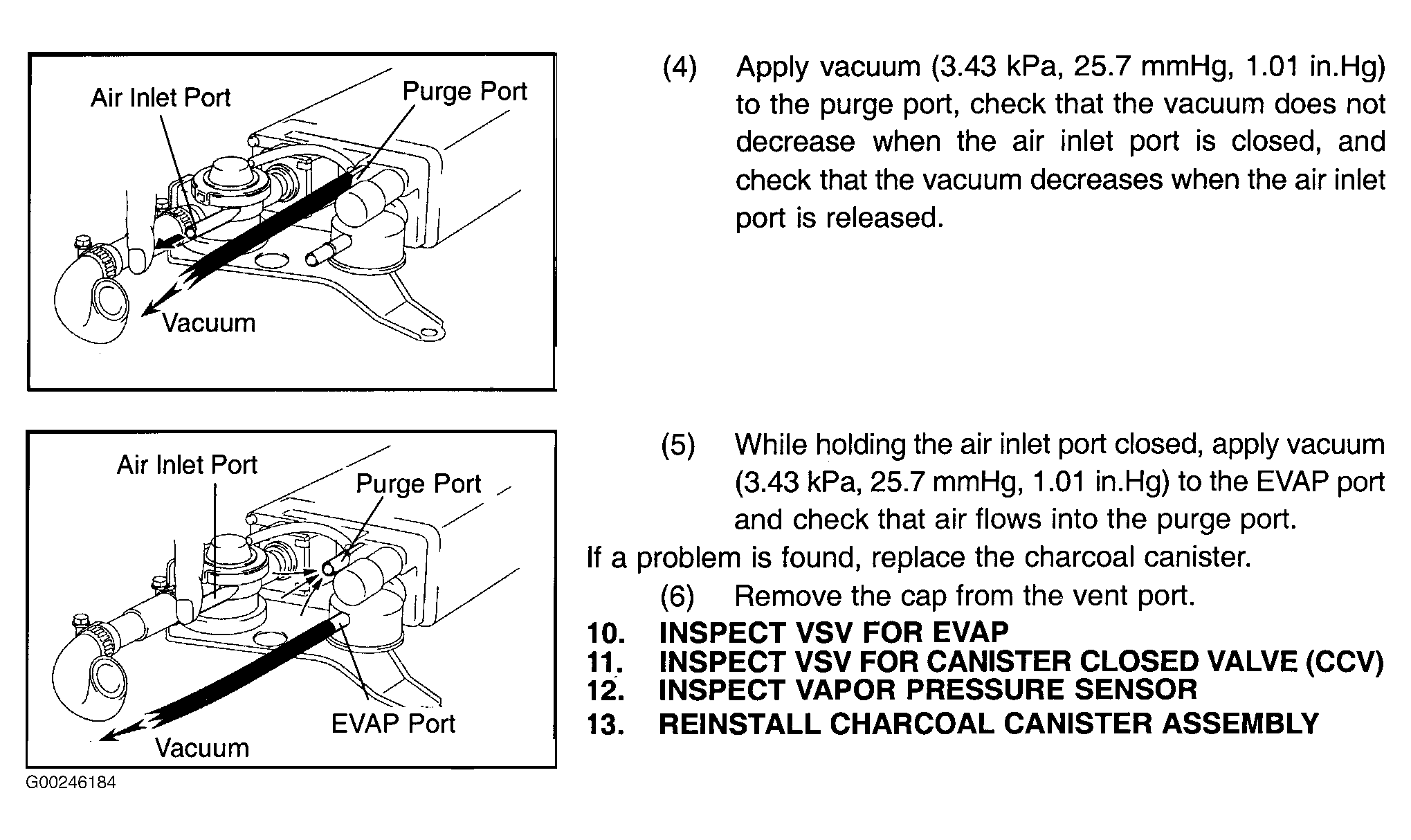

Fig 2: Testing Fuel EVAP System - 2 Of 6 (ECHO)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

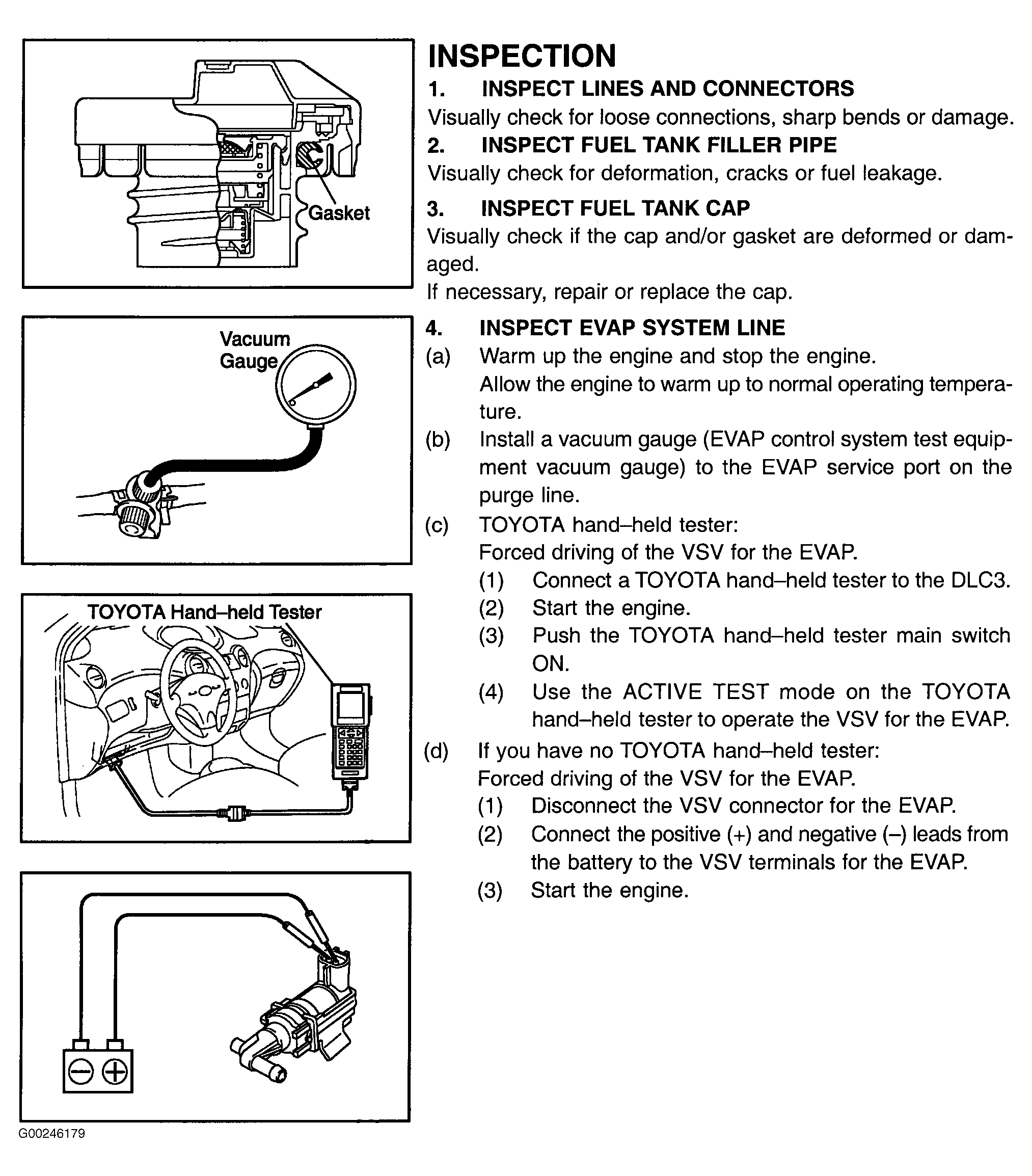

Fig 3: Testing Fuel EVAP System - 3 Of 6 (ECHO)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

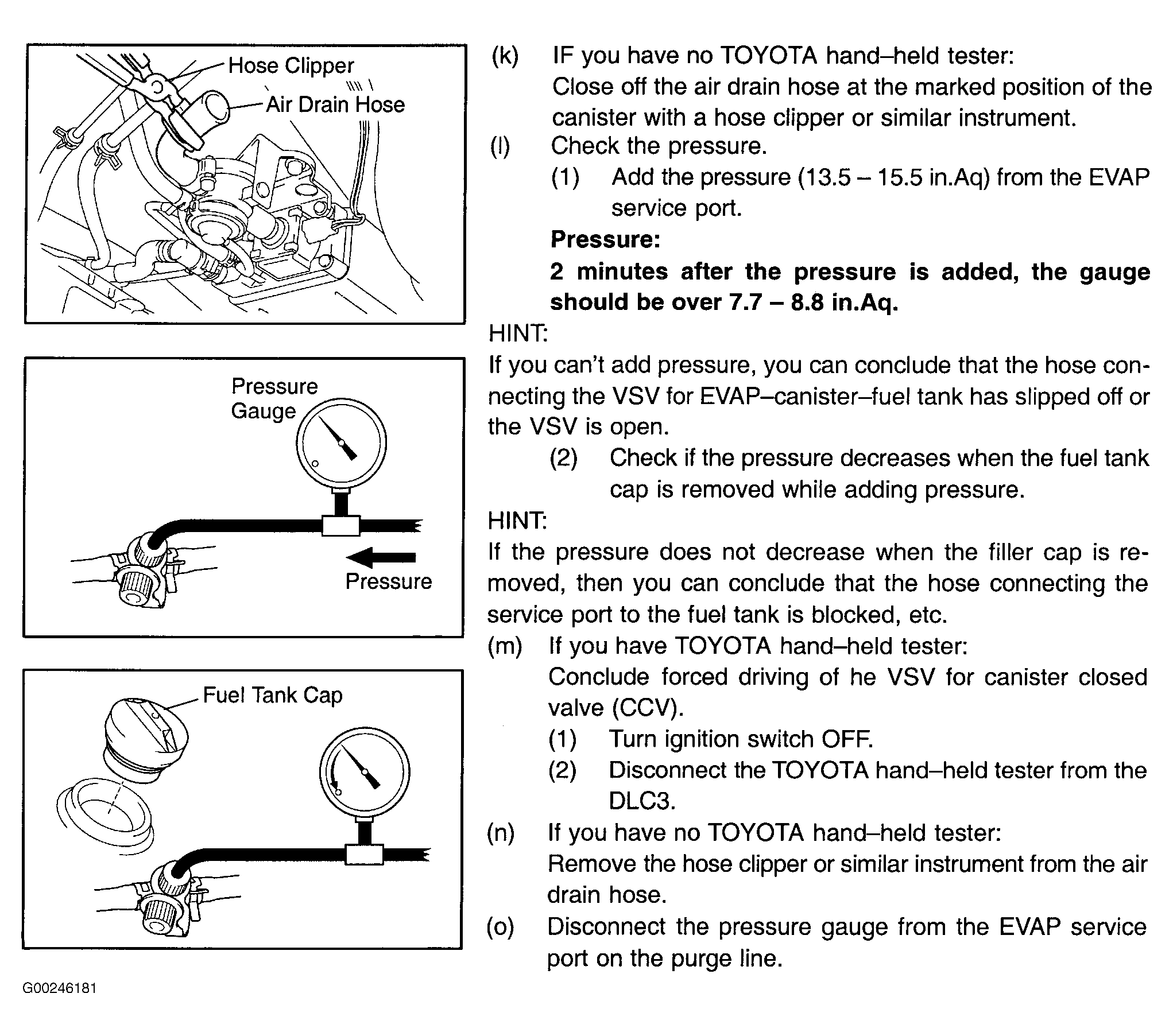

Fig 4: Testing Fuel EVAP System - 4 Of 6 (ECHO)

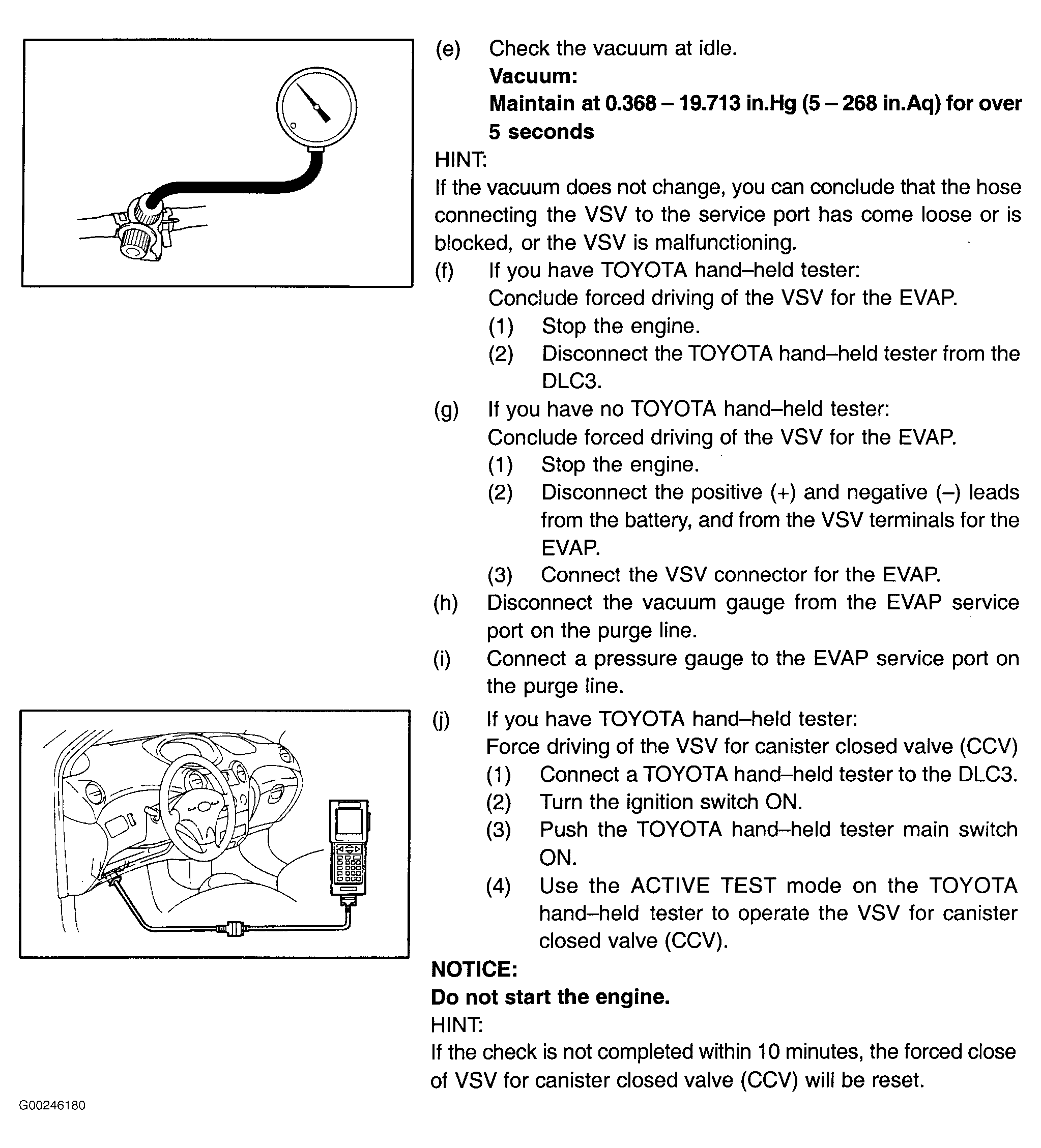

Fig 5: Testing Fuel EVAP System - 5 Of 6 (ECHO)

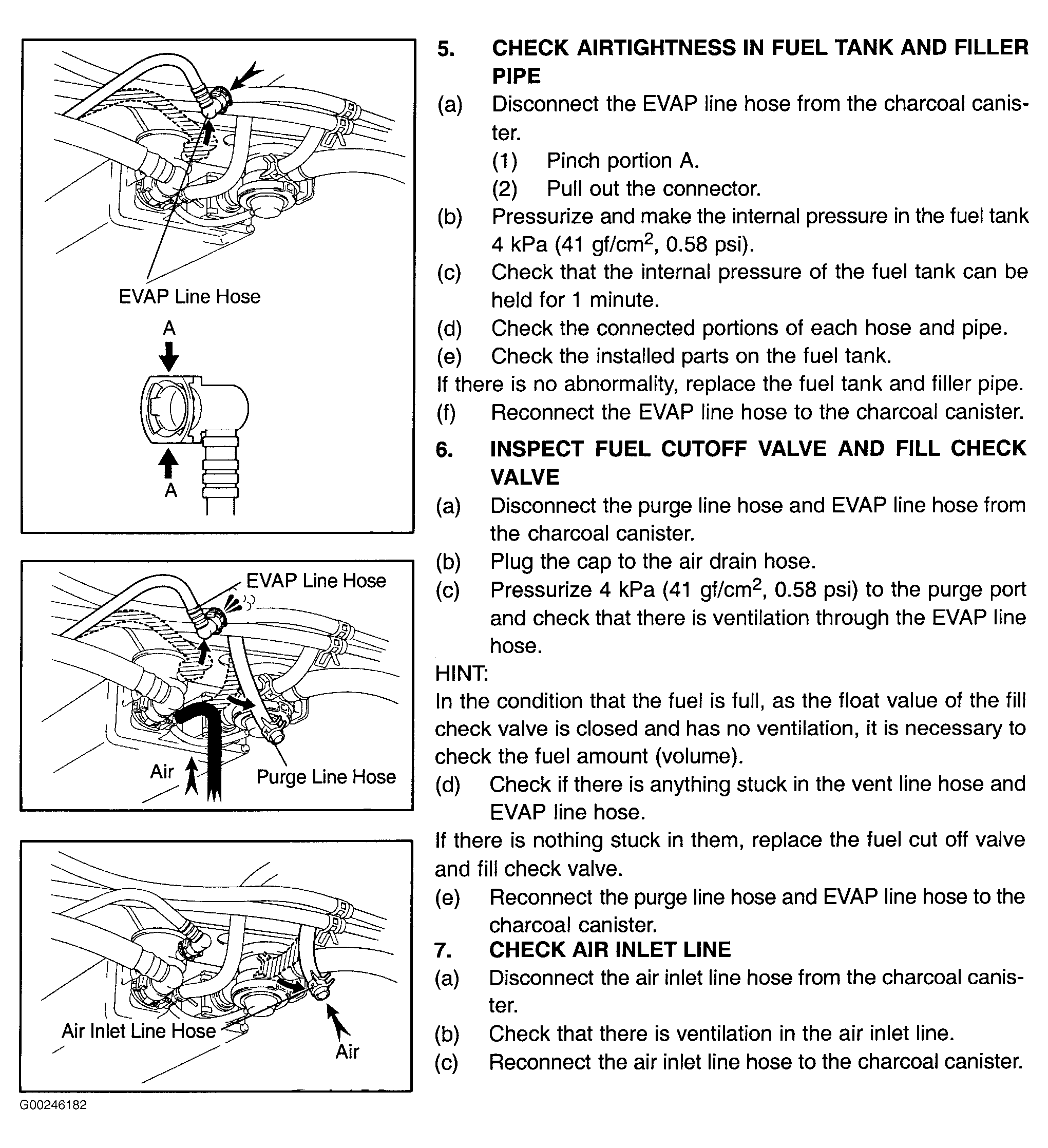

Fig 6: Testing Fuel EVAP System - 6 Of 6 (ECHO)
