Ignition Switch & Key Unlock Warning System: Inspection

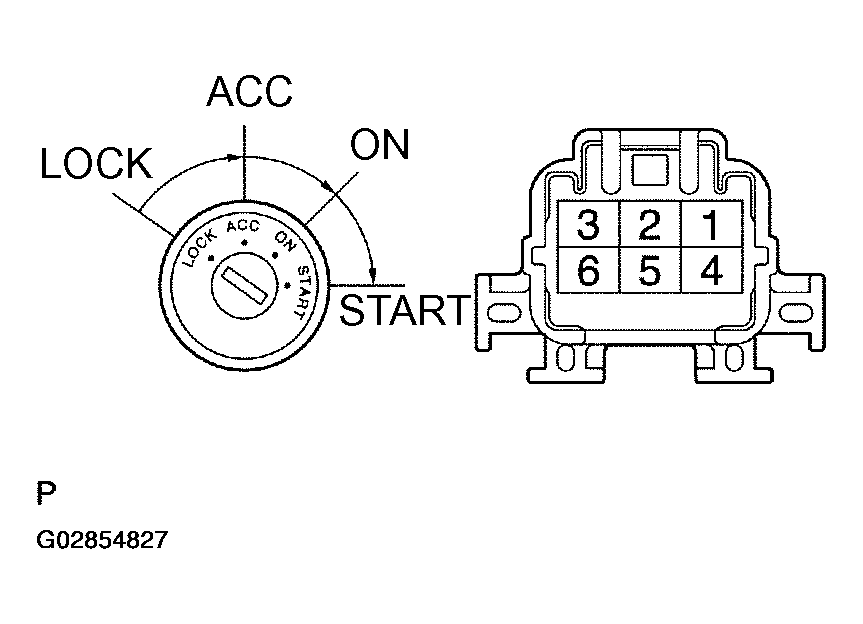

- INSPECT IGNITION SWITCH CONTINUITY
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
IGNITION SWITCH CONTINUITYSwitch Position Tester Connection Specified Condition LOCK - No Continuity ACC 1 - 3 Continuity ON 1 - 2 - 3 Continuity ON 5 - 6 Continuity START 1 - 2 Continuity START 4 - 5 - 6 Continuity If continuity is not as specified, replace the switch.

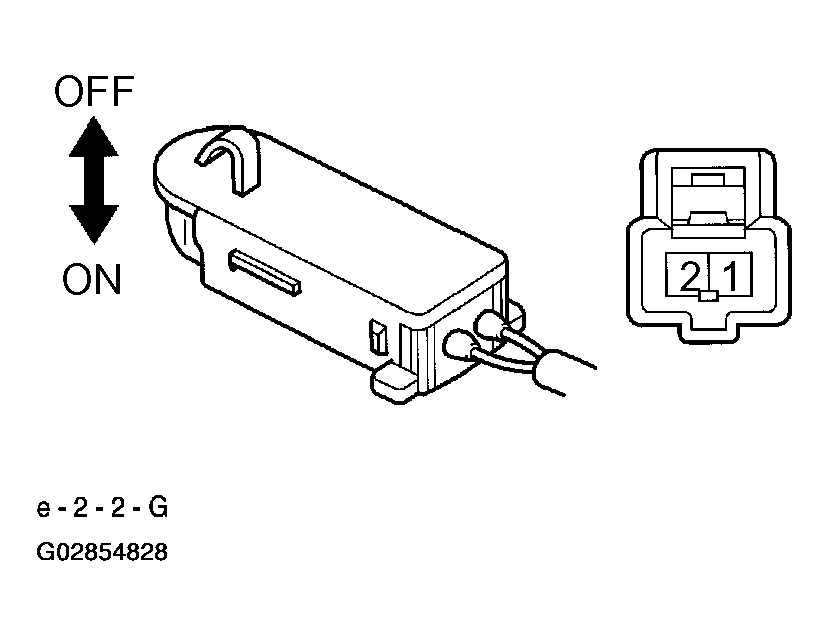

- INSPECT KEY UNLOCK WARNING SWITCH CONTINUITY
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
KEY UNLOCK WARNING SWITCH CONTINUITYSwitch position Tester connection Specified condition OFF (key removed) - No continuity ON (key set) 1 - 2 Continuity If continuity is not as specified, replace the switch.

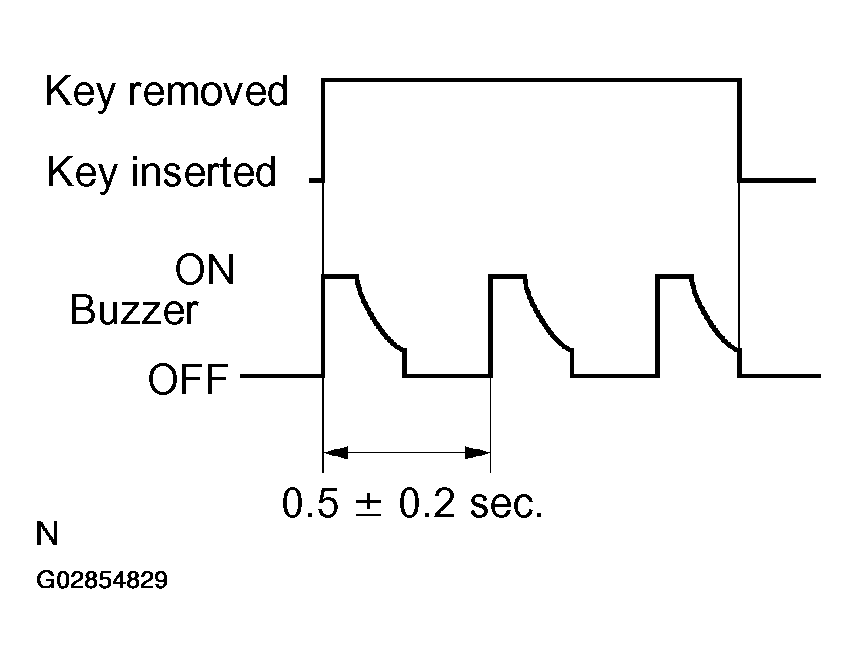

- INSPECT KEY UNLOCK WARNING BUZZER
Check the buzzer sound when driver's door is opened and key inserted.
If operation is not as specified, replace the combination meter (See REMOVAL )
