Parts Layout And Schematic Drawing - RAV4: Drawing

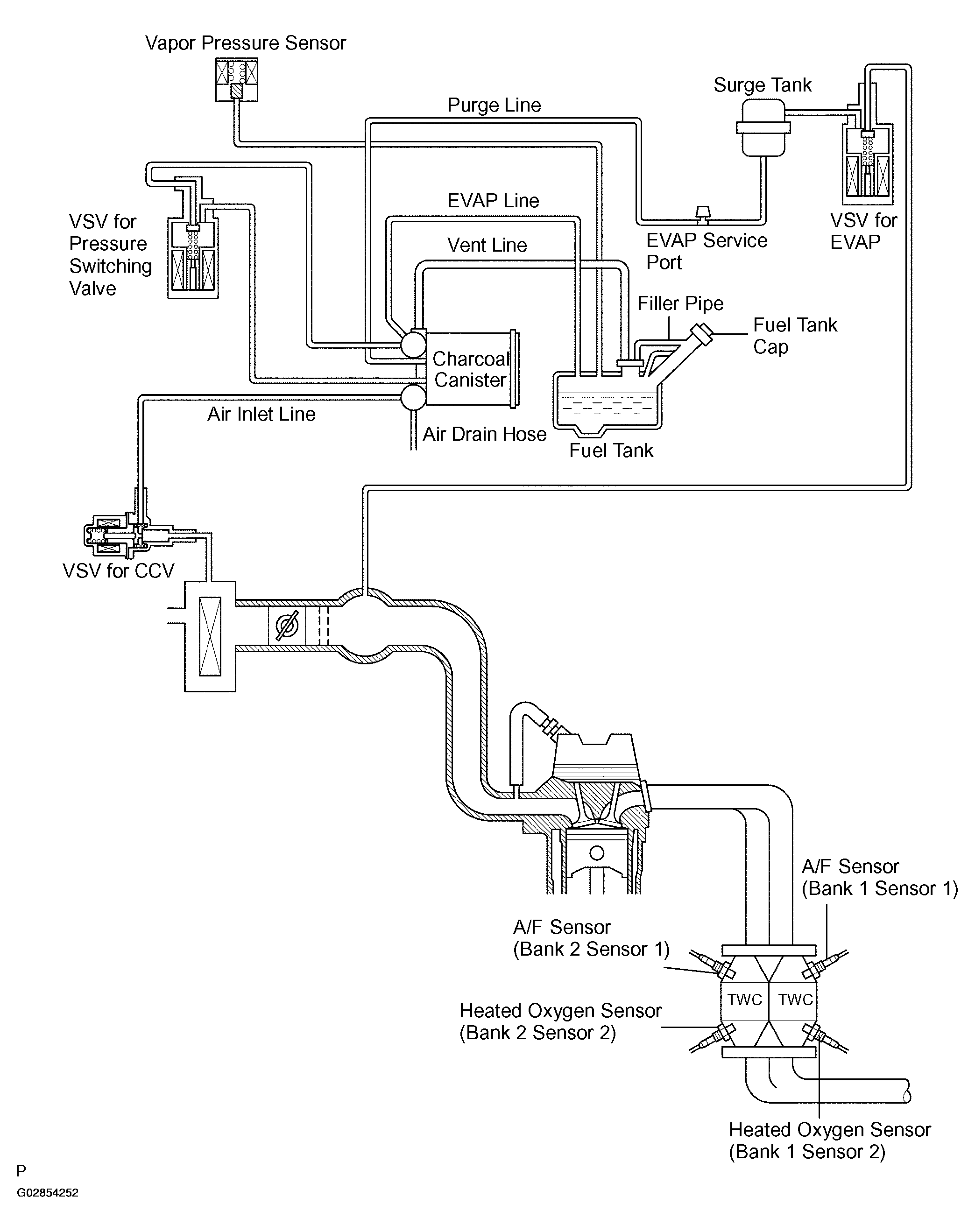

Fig 1: Emission Control System Working Diagram
G02854252Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
