Engine Exhaust Assembly: Components

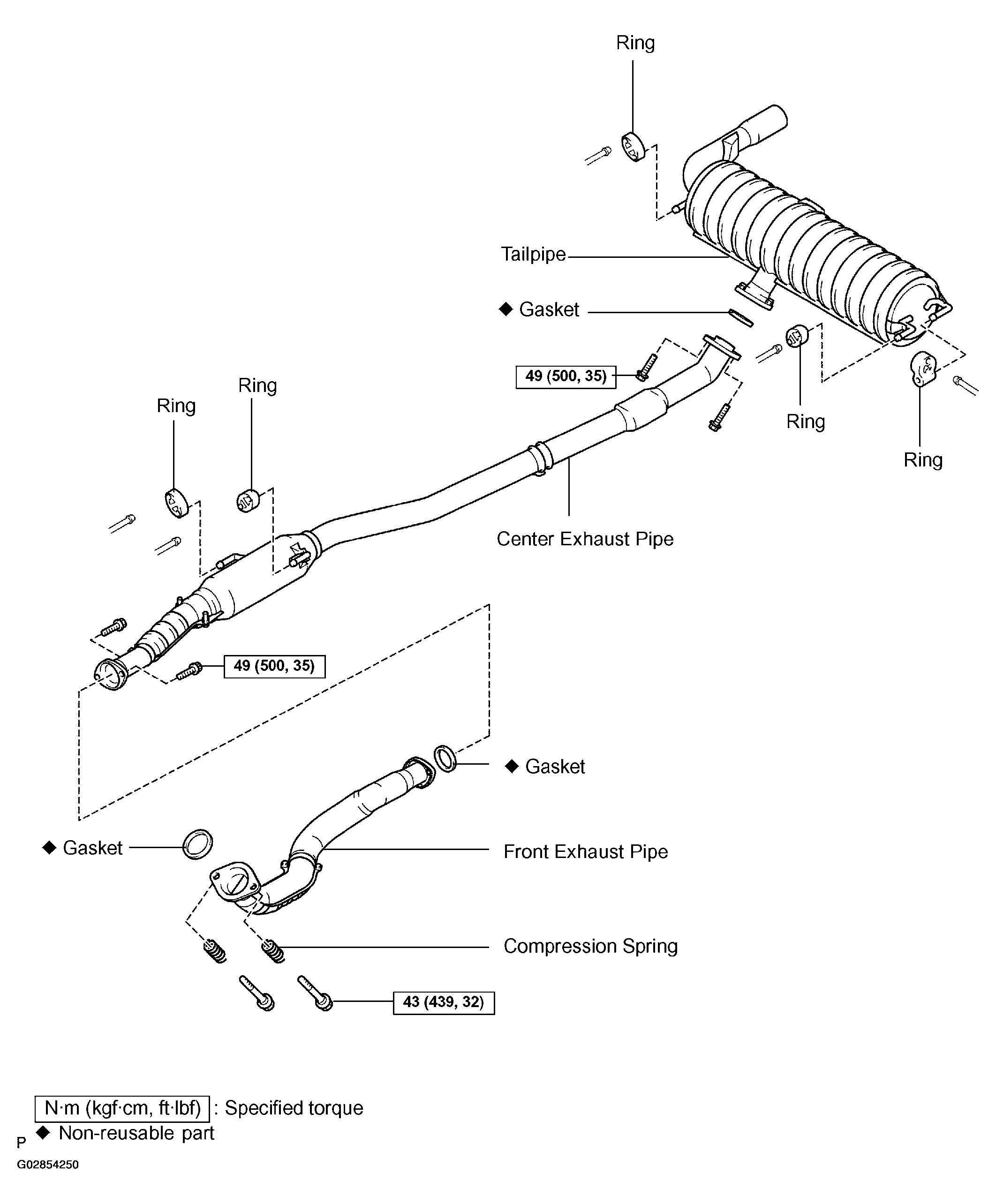

Fig 1: Exploded View Of Exhaust System Replacement Components With Torque Specifications
G02854250Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
